Uplink   Interfaces

2   SFP

Available   PoE Power

67W

Fanless

Y

Dimensions   (H x D x W)

1.73   x 8.45 x 10.56 in. (4.4 x 21.5 x 26.8 cm)

Net   Weight

5.64   lb (2.56 kg)

RJ45   Ethernet

1

USB   mini-B

1

USB-A   port for storage and Bluetooth console

1

CPU

ARMv7   800 MHz

DRAM

512   MB

Flash   memory

256   MB

Forwarding   bandwidth

10 Gbps

Switching   bandwidth

20 Gbps

Forwarding   rate (64-byte L3 packets)

14.88 Mpps

Unicast   MAC addresses

8K

Maximum   active VLANs

64

VLAN   IDs available

4094

Maximum   STP instances

64

Maximum   SPAN sessions

1

MTU-L3   packet

9198 bytes

Jumbo   Ethernet frame

10,240 bytes

MTBF   in hours (Data)

2,448,133

MTBF   in hours (PoE)

315,044

Up   to 5,000 ft

23ºF   to 113ºF (–5ºC to 45ºC)

Up   to 10,000 ft

23ºF   to 104ºF (–5ºC to 40ºC)

Operating   altitude

10,000   ft (3000m)

Operating   relative humidity

5%   to 90% at 40ºC

Storage   temperature

–13º   to 158ºF (–25º to 70ºC)

Storage   altitude

15,000   ft (4500m)

Storage   relative humidity

5%   to 95% at 65ºC

Storage   altitude

Minimum   ambient temperature for cold start is 0°C (32°F)

Electrical

POE

Voltage   (autoranging) 1

110   to 220V AC in

Frequency

50   to 60 Hz

Current

0.22A   to 0.27A

Power   rating (maximum consumption)

0.11   kVA

Power   consumption (watts)

0%   traffic

10%   traffic

100%   traffic

Weighted   average

19.9

22.0

22.0

21.3

Safety

UL   60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1   Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1

EMC:   emissions

47CFR   Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022   Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class   A, CNS13438 Class A

EMC:   immunity

EN55024,   CISPR24, EN300386, KN24

Environmental

Reduction   of Hazardous Substances (RoHS) including Directive 2011/65/EU

Telco

Common   Language Equipment Identifier (CLEI) code

U.S.   government certifications

USGv6   and IPv6 Ready Logo

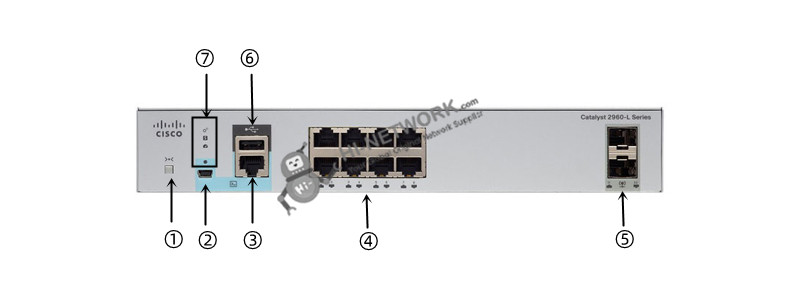

Ethernet   interfaces

10BASE-T   ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair   (UTP) cabling

100BASE-TX   ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

1000BASE-T   ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

1000BASE-T   SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Indicator   LEDs

Per-port   status: link integrity, disabled, activity, speed, and full duplex

System   status: system, PoE, and link speed

Console   cables

CAB-CONSOLE-RJ45   Console cable 6 ft. with RJ-45

CAB-CONSOLE-USB   Console cable 6 ft. with USB Type A and mini-B connectors

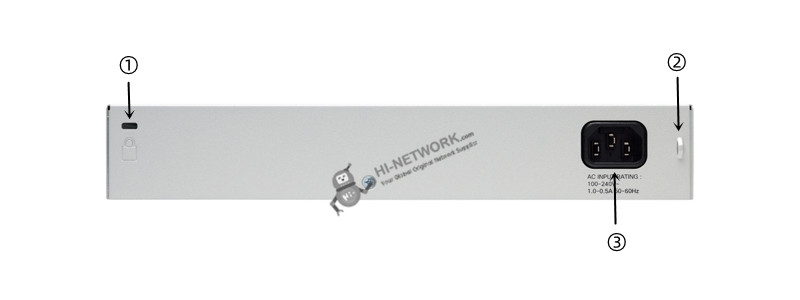

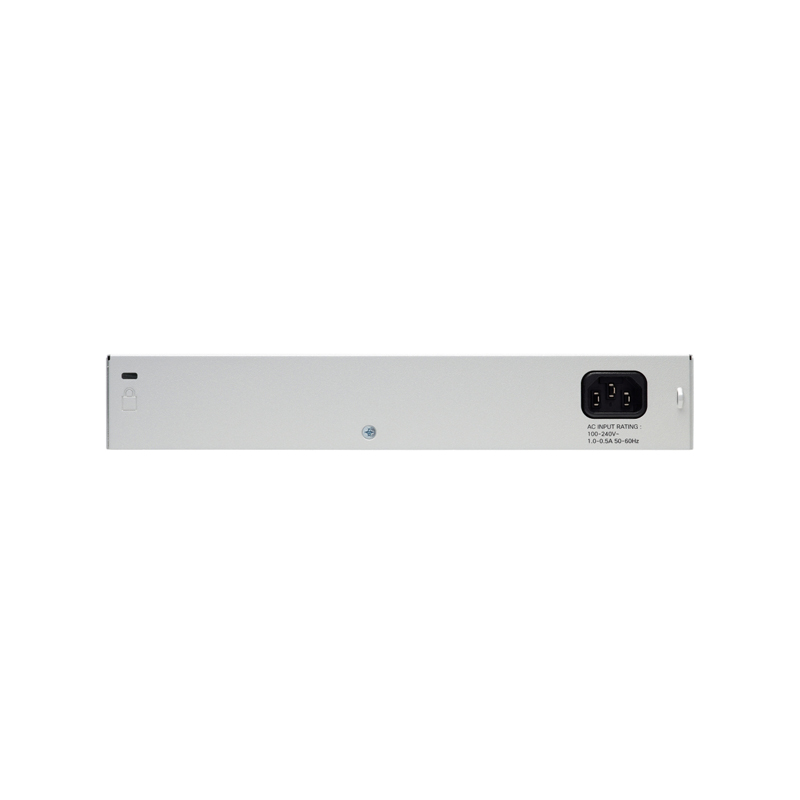

Power

Use   the supplied AC power cord to connect the AC power connector to an AC power   outlet
