New WS-C2960L-48PS-LL Catalyst 2960L 48 port GigE with PoE, 4 x 1G SFP, LAN Lite

USD

2405 ~~$5243~~ (54.1% OFF)

4.9 4.9/5.0 Reviews Q/A 1 sold/Mon
Detail:	Catalyst 2960L 48 port GigE with PoE, 4 x 1G SFP, LAN Lite (Asia Pacific Part Number: WS-C2960L-48PS-AP)
Model:	WS-C2960L-48PS-LL;WS-C2960L-48PS-AP
Condition:	New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 9.2	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

New WS-C2960L-48PS-LL Catalyst 2960L 48 port GigE with PoE, 4 x 1G SFP, LAN Lite

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

WS-C2960L-48PS-LL offering 48 x GigE PoE+ ports, 4 x 1G SFP and LAN Lite, is one of the Cisco Catalyst 2960-L Series Switches. These 2960-L switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure and energy-efficient business operations with a range of Cisco IOS Software features. There is an Asia Pacific Part number: WS-C2960L-48PS-AP. It is the same as the WS-C2960L-48PS-LL.

Note: Model end of "LL" product's Asian Part Number is end of "AP." So Models have two Part Number. They are same function Products.

Quick Specification:

Product Code	WS-C2960L-48PS-LL
IOS	LAN Lite
Forwarding bandwidth	52 Gbps
Switching bandwidth	104 Gbps
10/100/1000 Ethernet Ports	48 PoE+ Ports
Available PoE Power	370W
Uplink Interfaces	4 x 1G SFP
Fanless	N
DRAM	512 MB
Flash memory	256 MB
Dimensions (H x D x W)	1.73 x 11.5 x 17.5 in. (4.4 x 29.2 x 44.5 cm)
Net Weight	10.25 lb (4.65 kg)

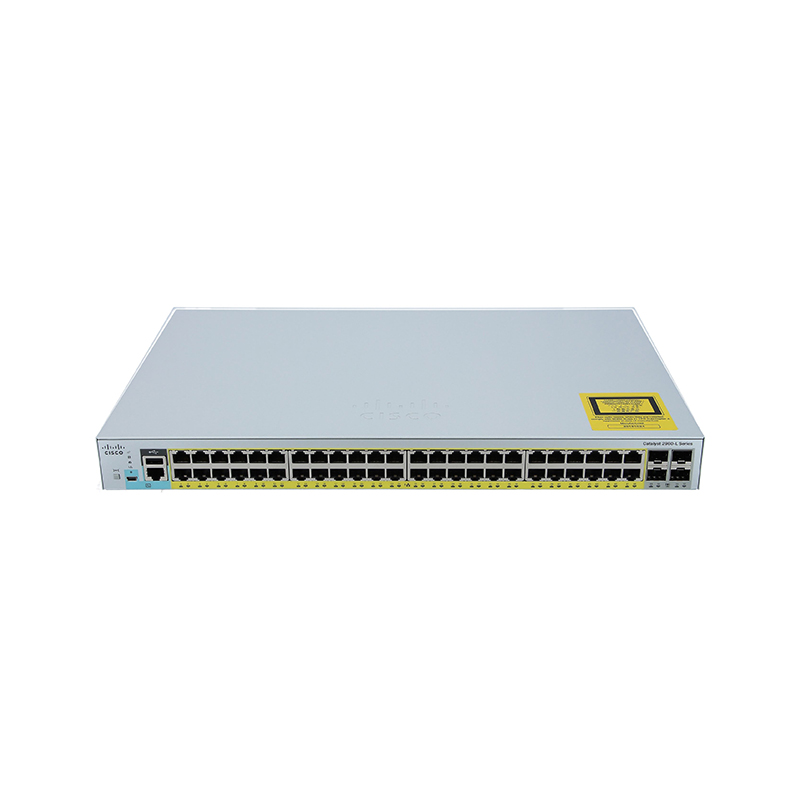

The Front Panel:

①	Mode button
②	USB mini-Type B (console) port
③	RJ-45 Console Port
④	48 x 10/100/1000 PoE+ ports
⑤	SFP module slots
⑥	USB Type A port
⑦	System LEDs

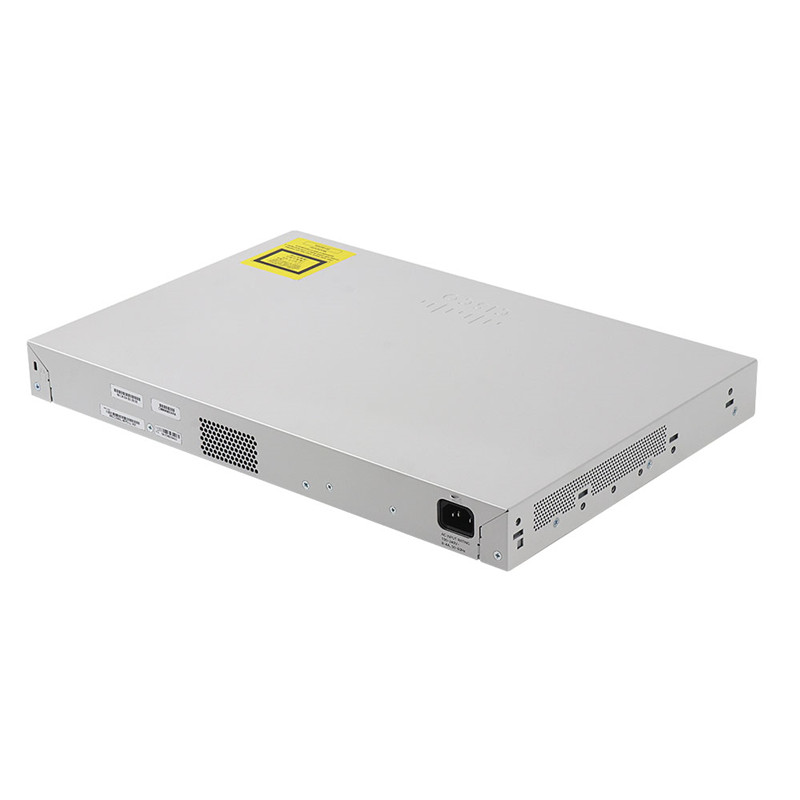

The Back Panel:

The Accessories for C2960L-48PS-LL

Modules and Cables:

Models	Descriptions
CAB-CONSOLE-USB	Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
CAB-ACE=	CAB-ACE= AC Power Cord (Europe), C13, CEE 7, 1.5M
CAB-ACU=	CAB-ACU= AC Power Cord (UK), C13, BS 1363, 2.5m

Compare to Similar Items:

Model	WS-C2960L-48PS-LL	WS-C2960L-48TS-LL
IOS	LAN Lite	LAN Lite
Forwarding bandwidth	52 Gbps	52 Gbps
Switching bandwidth	104 Gbps	104 Gbps
10/100/1000 Ethernet Ports	48	48
Available PoE Power	N/A	370W
Uplink Interfaces	4 x 1G SFP	4 x 1G SFP

Get More Information

Do you have any question about the WS-C2960L-48PS-LL?

Specific Data Sheet:

Manufacturer:	Cisco
Product ID:	WS-C2960L-48PS-LL
10/100/1000 Ethernet Ports	48
Uplink Interfaces	4 SFP
Available PoE Power	370W
Fanless	N
Dimensions (H x D x W)	1.73 x 11.5 x 17.5 in. (4.4 x 29.2 x 44.5 cm)
Net Weight	10.25 lb (4.65 kg)
Console Ports
RJ45 Ethernet	1
USB mini-B	1
USB-A port for storage and Bluetooth console	1
Memory and Processor
CPU	ARMv7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	52 Gbps
Switching bandwidth	104 Gbps
Forwarding rate (64-byte L3 packets)	77.38 Mpps
Unicast MAC addresses	8K
Maximum active VLANs	64
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	1
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
MTBF in hours (Data)	1,370,769
MTBF in hours (PoE)	437,970
Environment
Operating temperature
Up to 5,000 ft	23ºF to 113ºF (–5ºC to 45ºC)
Up to 10,000 ft	23ºF to 104ºF (–5ºC to 40ºC)
Operating altitude	10,000 ft (3000m)
Operating relative humidity	5% to 90% at 40ºC
Storage temperature	–13º to 158ºF (–25º to 70ºC)
Storage altitude	15,000 ft (4500m)
Storage relative humidity	5% to 95% at 65ºC
Storage altitude	Minimum ambient temperature for cold start is 0°C (32°F)
Electrical	PoE
Voltage (autoranging)	110 to 220V AC in
Frequency	50 to 60 Hz
Current	0.37A to 0.64A
Power rating (maximum consumption)	0.48 kVA
Power consumption (watts) 0% traffic 10% traffic 100% traffic Weighted average	68.4 81.6 81.9 77.3
Safety and Compliance
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
EMC: emissions	47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: immunity	EN55024, CISPR24, EN300386, KN24
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. government certifications	USGv6 and IPv6 Ready Logo
Connectors and Interfaces
Ethernet interfaces	10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
	100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
	1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
	1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs	Per-port status: link integrity, disabled, activity, speed, and full duplex
Indicator LEDs	System status: system, PoE, and link speed
Console cables	CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
Console cables	CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power	Use the supplied AC power cord to connect the AC power connector to an AC power outlet
