| Detail: | 24 10 Gig SFP+, 2 40 Gig QSFP+, AC 110/220V |
| Model: | S6720S-26Q-LI-24S-AC (98010685) |
| Condition: | Factory Sealed New |
| Related: | Huawei Switch S6720S-26Q-EI-24S-DC (02350MTS) Huawei Switch S6720S-26Q-EI-24S-AC (02350MTR) Huawei Switch S6720S-26Q-SI-24S-AC (98010691) |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
17.0
|
2-7 Days
US$
|
| Payment: |
More
|
The S6720-LI series switches (S6720-LI) are next-generation simplified 10GE fixed switches and can be used as 10GE access switches on campus networks and data center networks. The S6720-LI provides line-rate 10GE access ports and 40GE uplink ports. In addition, the S6720-LI delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.
Model | S6720S-26Q-LI-24S-AC |
Part Number | 98010685 |
Memory | 1 GB |
Flash memory | 512 MB in total. To view the available flash memory size, run the display version command. |
PoE | Not supported |
Weight with packaging [kg(lb)] | 4.2 kg (9.26 lb) |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.) |

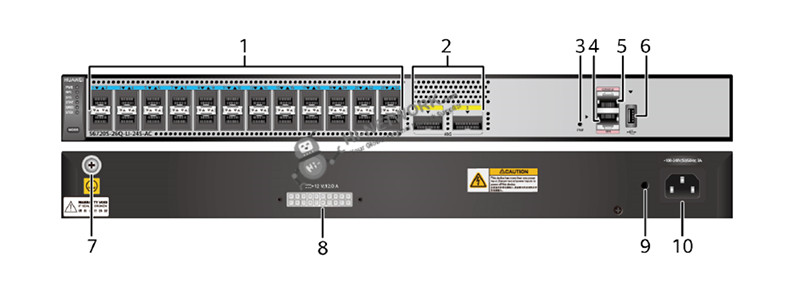

① | Twenty-four 10GE SFP+ ports |
② | Two 40GE QSFP+ ports |
③ | One PNP button |
④ | One ETH management port |
⑤ | One console port |
⑥ | One USB port |
⑦ | Ground screw |
⑧ | RPS socket |
⑨ | Jack for AC power cable locking strap |
⑩ | AC socket |
Model | Description |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC) | |
SFP-GE-ZBXD1 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC) |
SFP-GE-ZBXU1 | Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC) |
1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1471nm,80km,LC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1491nm,80km,LC) | |
DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC) | |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) | |
10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) | |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC) | |
SFP-10G-ER-1310 | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC) |
10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC) | |
10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC) |
Product Code | S6720-26Q-LI-24S-AC | |
Fixed ports | 24x10GE port, 2x40GE port | 24x10GE port, 2x40GE port |
Dimensions (W x D x H, mm) | 420 x 220 x 43.6 | 420 x 220 x 43.6 |
Chassis height(U) | 1U | 1U |
CPU Frequency | 1 GHz | 1 GHz |
CPU Cores | 2 | 2 |
Memory (RAM) | 1 GB | 1 GB |
Rated voltage range | AC: 100 V AC to 240 V AC, 50/60 Hz | AC: 100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range | AC: 90 V AC to 264 V AC; 47-63 Hz | AC: 90 V AC to 264 V AC; 47-63 Hz |
Maximum input current | 3 A | 3 A |
Minimum power consumption | 100.2 W | 100.2 W |
Do you have any question about the S6720S-26Q-LI-24S-AC 98010685?
Contact us now via[email protected]
Part Number | 98010685 |
Model | S6720S-26Q-LI-24S-AC |
Memory (RAM) | 1 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 39.2 years |
Mean time to repair (MTTR) | 2 |
Availability | > 0.99999 |
Service port surge protection | NA |
Power supply surge protection | ±6 kV in differential mode, ± 6 kV in common mode |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.) |
Weight (with packaging) | 4.2 kg (9.26 lb) |
Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) Any 40GE QSFP+ ports (a maximum of 2 physical ports) |
RTC | Supported |
RPS | Supported |
PoE | Not supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum power consumption (100% throughput, full speed of fans) | 100.2 W |
Typical power consumption (30% of traffic load, tested according to ATIS standard) | 67.1 W |
Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | < 46.5 dB(A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification | EMC certification Safety certification Manufacturing certification |
