Huawei Switch S6700-24-EI (02352768)

USD

4.8 4.8/5.0 Reviews Q/A 2 sold/Mon
Detail:	S6700-24-EI(24 10 Gig SFP+,without power module)
Model:	S6700-24-EI (02352768)
Condition:	Factory Sealed New
Related:	Huawei Switch S6700-48-EI (02352767)
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 17.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei Switch S6700-24-EI (02352768)

Huawei S6700-24-EI, supporting 24 GE SFP/10GE SFP+ ports, is one of the Huawei S6700 series switches. This series delivers high-performance, super-reliable 10 GE switches with comprehensive Quality of Service and security capabilities. The S6700 is ideal for use as access switches in large-scale data centers and core switches in campus networks. S6700 Series switches are available in 24-port and 48-port S6700-EI models, for resilient IPv4 and smooth migration to IPv6 networking.

Quick Specification:

Model	S6700-24-EI
Part Number	02352768
Memory (RAM)	512 MB
Flash	64 MB
PoE	Not supported
Weight with packaging [kg(lb)]	Empty: ≤ 5 kg (11.02 lb) Fully configured: ≤ 8.5 kg (18.74 lb)
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)

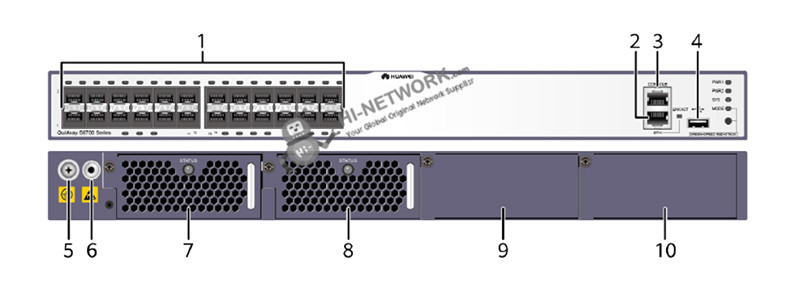

Appearance:

s6700-24-ei-datasheet

①	Twenty-four 10GE SFP+ ports
②	One ETH management port
③	One console port
④	One USB port
⑤	Ground screw
⑥	ESD jack
⑦	Fan slot 2
⑧	Fan slot 1
⑨	Power module slot 2
⑩	Power module slot 1

The Accessories for S6700-24-EI

Recommended Elements:

Model	Description
GE-SFP Optical Transceiver
SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45)
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)
10GE SFP+ optical transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)
OMXD30000	Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)
OSX010000	Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)
Power Module
W0PSA5000	500W AC Power Module(gray)
LS6W2PSD0500	500W DC Power Module

Compare to Similar Items

Models	S6700-24-EI	S6700-48-EI
Switching Capacity	960 Gbit/s	960 Gbit/s
Forwarding Performance	360 Mpps	720 Mpps
Port	24 x GE SFP/10 GE SFP+ ports	48 x GE SFP/10 GE SFP+ ports
IPv4 Routing	Static routing, RIPv1, RIPv2, ECMP, and URPF OSPF, IS-IS, and BGP VRRP Policy-based routing Routing policy

Get More Information

Do you have any question about the S6700-24-EI 02352768?

Specific Data Sheet:

Part Number	02352768
Model	S6700-24-EI
Memory (RAM)	512 MB
Flash	64 MB
Mean time between failures (MTBF)	34.54 years
Mean time to repair (MTTR)	2
Availability	> 0.99999
Service port surge protection	NA
Power supply surge protection	Using AC power modules: ±2 kV in differential mode, ±4 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Weight (with packaging)	Empty: ≤ 5 kg (11.02 lb) Fully configured: ≤ 8.5 kg (18.74 lb)
Stack ports	Any 10GE SFP+ ports (a maximum of eight physical ports)
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	153.6 W
Operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 55 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
