Model

S5735-S48HS4XE-V2

Part Number

98012241

Description

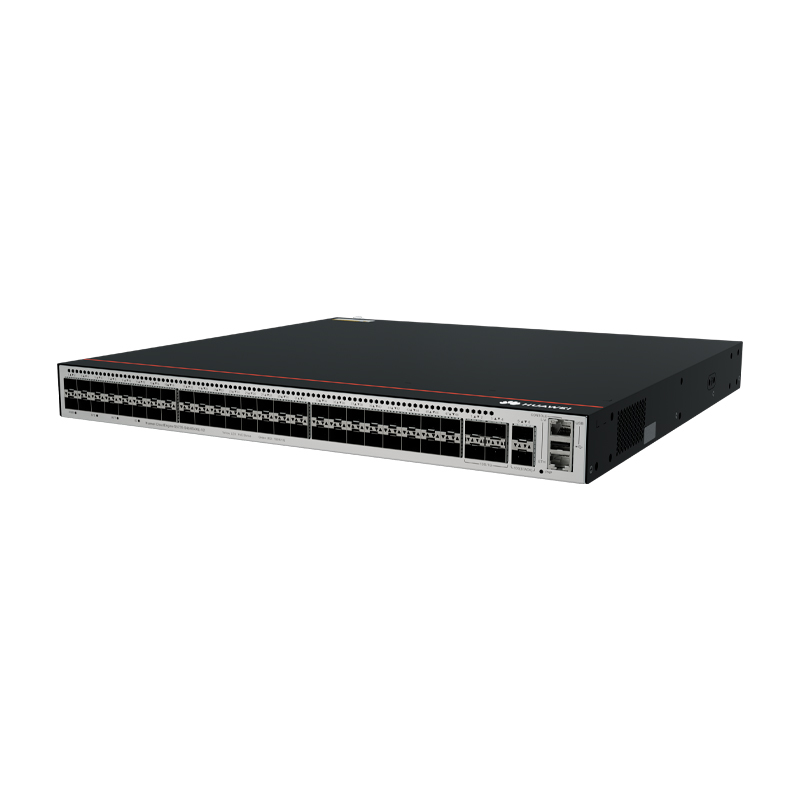

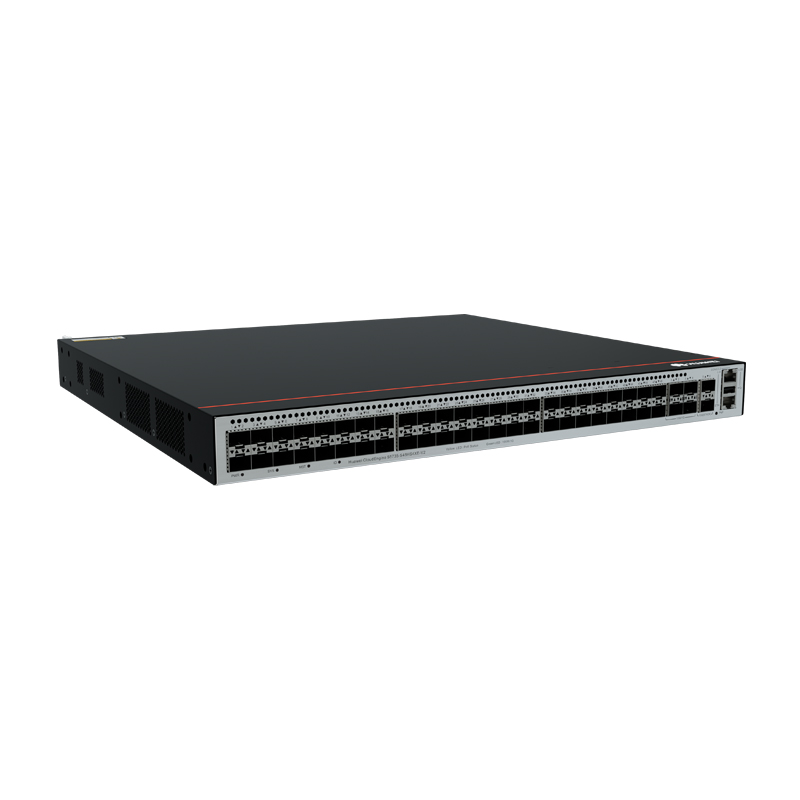

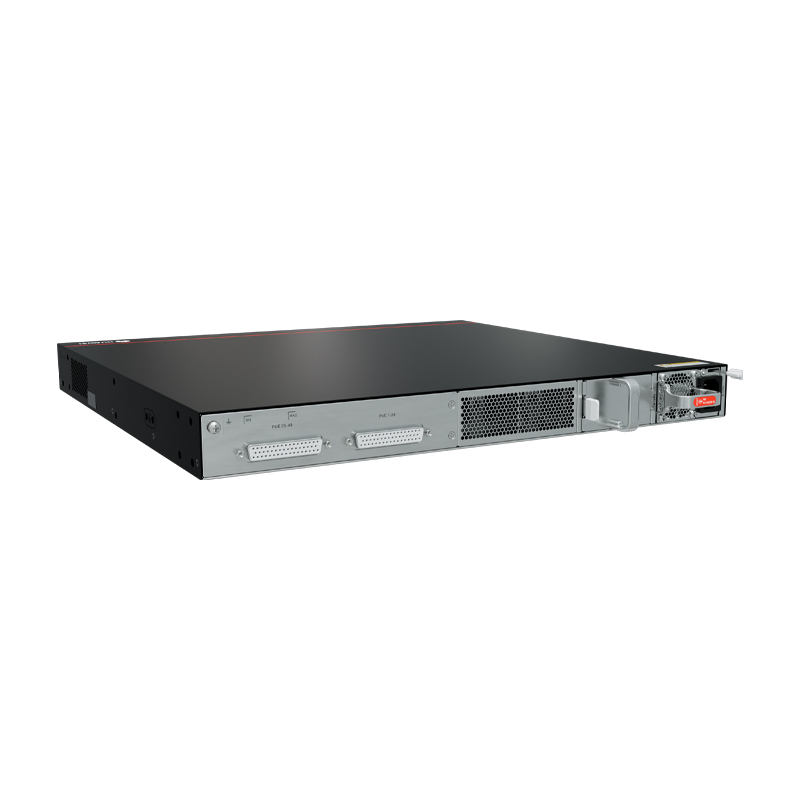

S5735-S48HS4XE-V2 (48*bundled ports (48*GE SFP ports, 48*PoE++ ports (DB50)), 4*10GE SFP+ ports, 2*12GE stack ports, without power module)

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)

Chassis height [U]

1

Weight without packaging [kg(lb)]

5.95 (13.12)

Weight with packaging [kg(lb)]

7.85 (17.31)

Typical power consumption [W]

84.7

Typical heat dissipation [BTU/hour]

289

Maximum power consumption [W]

- Without PoE: 113.62 W

- Full PoE load: 1998.52 W (PoE: 1710 W)

Maximum heat dissipation [BTU/hour]

- Without PoE: 387.68

- Full PoE load: 6819.15

Static power consumption [W]

48

MTBF [years]

60.98

MTTR [hours]

2

Availability

> 0.99999

Noise at normal temperature (acoustic power) [dB(A)]

48.7

Noise at normal temperature (acoustic pressure) [dB(A)]

36.70

Number of card slots

0

Number of power slots

2

Number of fans modules

2

Redundant power supply

1+1

Power modules without fans and power modules with fans cannot be installed in the same chassis.

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

Pluggable power supply

Rated input voltage [V]

- AC input: 100 V AC to 240 V AC; 50/60 Hz

- High-voltage DC input: 240 V DC

- DC input: –48 V DC to –60 V DC

Input voltage range [V]

- AC input: 90 V AC to 290 V AC; 45–65 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

Memory

2 GB

Flash memory

Physical space: 1 GB

Console port

RJ45

Eth Management port

Supported

USB

Supported

RTC

Not supported

RPS input

Not supported

Power supply surge protection [kV]

- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

- Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

Ingress protection level (dustproof/waterproof)

IP20

Types of fans

Built-in

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction

Air intake from left, front, and right and air exhaust from rear

PoE

Supported

Certification

EMC certification

Safety certification

Manufacturing certification
