Model

S5732-H48UM4Y2CZ-TV2

Part Number

02354VCJ, 02354VCJ-001, 02354VCJ-002, 02354VCJ-003

Description

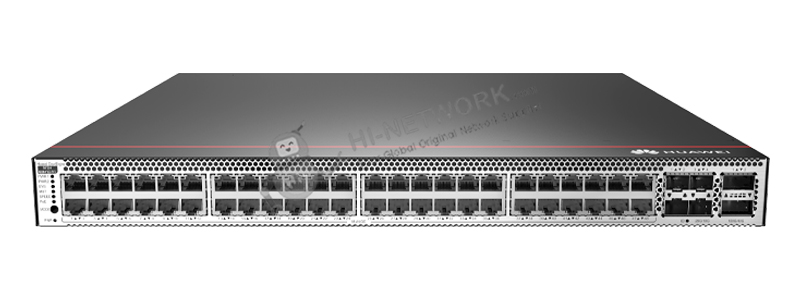

S5732-H48UM4Y2CZ-TV2 2.5G bundle (48*100M/1/2.5G Ethernet ports, optional RTU upgrade to 5/10G, 4*25G SFP28 ports, 2*100G QSFP28 ports, 1*expansion slot, PoE++, HTM, without power module)

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

175.0 mm x 650.0 mm x 550.0 mm (6.89 in. x 25.59 in. x 21.65 in.)

Chassis height [U]

1

Chassis material

Metal

Weight without packaging [kg(lb)]

7.59 kg (16.73 lb)

Weight with packaging [kg(lb)]

9.53 kg (21.01 lb)

Typical power consumption [W]

210

Typical heat dissipation [BTU/hour]

716.54

Maximum power consumption [W]

- Without PoE: 297 W (without cards)

- Full PoE load: 2013 W (PoE: 1632 W, without cards)

Maximum heat dissipation [BTU/hour]

- Without PoE: 1013.39 (without cards)

- Full PoE load: 6868.56 (without cards)

Static power consumption [W]

129

MTBF [years]

42.49

MTTR [hours]

2

Availability

> 0.99999

Noise at normal temperature (acoustic power) [dB(A)]

Dual 600 W AC PoE power modules with 30% load: 49.2 dBA

Dual 1000 W AC PoE power modules with 30% load: 51.2 dBA

Dual 1000 W DC PoE power modules with 30% load: 51.2 dBA

Noise at normal temperature (acoustic pressure) [dB(A)]

Dual 600 W AC PoE power modules with 30% load: 35.52 dBA

Dual 1000 W AC PoE power modules with 30% load: 37.52 dBA

Dual 1000 W DC PoE power modules with 30% load: 37.52 dBA

Number of card slots

1

Number of power slots

2

Number of fans modules

2

Redundant power supply

1+1

Pluggable AC and DC power modules can be used together in the same switch.

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device cannot start when the temperature is lower than 0°C (32°F).

When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

Pluggable power supply

Rated input voltage [V]

- AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz

- High-voltage DC input: 240 V DC

- DC input:–48 V DC to–60 V DC

Input voltage range [V]

- AC input: 90 V AC to 290 V AC; 45–65 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

Maximum input current [A]

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

Memory

4 GB

Flash memory

Physical space: 2 GB

Console port

RJ45

Eth Management port

RJ45

USB

Supported

RTC

Supported

RPS input

Not supported

Service port surge protection [kV]

Common mode: ±7 kV

Power supply surge protection [kV]

- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

- Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

Ingress protection level (dustproof/waterproof)

IP20

Types of fans

Pluggable

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction

Air intake from left, front, and right and air exhaust from rear

PoE

Supported

Certification

EMC certification

Safety certification

Manufacturing certification
