| Detail: | S5720-56C-EI-48S-AC(48 Gig SFP,4 10 Gig SFP+,with 1 interface slot,with 150W AC power supply) |
| Model: | S5720-56C-EI-48S-AC (02359558) |
| Condition: | Factory Sealed New |
| Related: | Huawei Switch S5720-56C-EI-48S-DC (02350NHP) Huawei Switch S5720-56C-EI-DC (02350NHK) Huawei Switch S5720-56C-EI-AC (02359504) |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
17.1
|
2-7 Days
US$
|
| Payment: |
More
|
Huawei S5720-56C-EI-48S-AC Gigabit Switch provides resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. With 48 x 100/1,000 Base-X Ethernet ports, 4 x 10G SFP+ ports, its performance enhancements include advanced processing hardware, 10 Gbit/s uplink ports, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking. Huawei S5720-56C-EI-48S-AC Gigabit Switch is dedicated to helping customers build a reliable, secure and high performance next-generation IT network.
Model | S5720-56C-EI-48S-AC |
Part Number | 02359558 |
Memory (RAM) | 2 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
PoE | Not supported |
Weight with packaging [kg(lb)] | 10.1 kg (22.27 lb) |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |
① | Forty-eight 100/1000BASE-X ports |
② | Four 10GE SFP+ ports |
③ | One ETH management port |
④ | One mini USB port |
⑤ | One console port |
⑥ | One USB port |

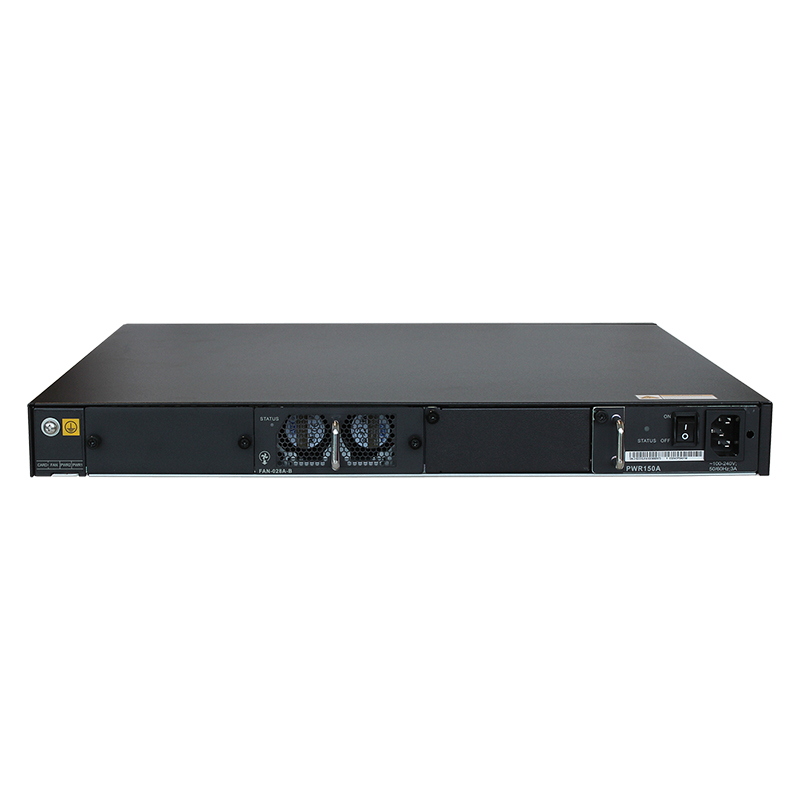

⑦ | Ground screw |
⑧ | ESN label |
⑨ | Rear card slot |
⑩ | Fan slot |
⑪ | Power module slot 2 |
⑫ | Power module slot 1 |
Model | Description | |
Power Module | ES0W2PSA0150 | 150W AC Power Module(Black) |
Optical Transceiver | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) | ||
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) | ||
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) | ||
Electrical Transceiver, SFP , GE ,Electrical Interface Module(100m,RJ45) | ||
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.1km,LC) | ||
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.3km,LC) | ||
Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm,10km,LC) | ||
Fan Module | FAN-028A-B | S5700 Fan box(F,FAN panel side intake) |
Card | ES5D21X02S01 | 2 10 Gig SFP+ Interface Card(used in S5720EI series) |
ES5D21X02T01 | 2 10 Gig RJ45 Interface Card(used in S5720EI series) | |
ES5D21VST000 | Dedicated stack card with 2*QSFP+ interface(Including one PCS of 1M QSFP+ cable ,Used in S5720EI series) |
Models | |||
Fixed Ports | 48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ | 48 x 100/1,000 Base-X SFP, 4 x 10 Gig SFP+ |
Extended Slots | One extended | One extended | One extended |
PoE | Not supported | Supported | Not supported |
Forwarding Performance | 162 Mpps | 162 Mpps | 162 Mpps |
Switching Capacity | 598 Gbit/s | 598 Gbit/s | 598 Gbit/s |
Front Power Input | No | No | No |
Power Consumption | 53.5W | < 889.4W (PoE: 740W) | 68.8W |
Do you have any question about the S5720-56C-EI-48S-AC 02359558?
Contact us now via[email protected]
Part Number | 02359558 |
Model | S5720-56C-EI-48S-AC |
Memory (RAM) | 2 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 73.91 years when no card is configured; 68.42 years when a 2-port 10GE SFP+ interface card is configured; 66.63 years when a 2-port 10GE RJ45 interface card is configured; 66.77 years when a stack card is configured |
Mean time to repair (MTTR) | 2 |
Availability | > 0.99999 |
Service port surge protection | Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode |
Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |
Weight (with packaging) | 10.1 kg (22.27 lb) |
Stack ports | Ports on the 2-port 10GE SFP+ rear interface card Ports on the 2-port 10GE RJ45 rear interface card Ports on the 2-port QSFP+ rear stack card |
RTC | Supported |
RPS | Not supported |
PoE | Not supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC |
Maximum power consumption (100% throughput, full speed of fans) | 104 W |
Typical power consumption (30% of traffic load) · Tested according to ATIS standard · EEE enabled · No PoE power consumption | 68.82 W (without card) 76.55 W (with 2*10GE optical card) 81.23 W (with 2*QSFP+ stack card) 83.78 W (with 2*10GE electrical card) |
Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | < 51.2 dB(A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.) DC power modules configured: 0-2000 m (0-6562 ft.) |
Certification | EMC certification Safety certification Manufacturing certification |
