Detail: | S5720-36PC-EI-AC(28 Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 Gig SFP, 1 interface slot,with 150W AC) |
Model: | S5720-36PC-EI-AC (02350BDQ) |
Condition: | Factory Sealed New |
Related: | Huawei Switch S5720-36C-EI-AC (02359562) Huawei Switch S5720-36C-EI-DC (02350NHJ) Huawei Switch S5720-36C-PWR-EI-AC (02359573) |
Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
7.7
|
2-7 Days
US$
|
Payment: |
More
|
Huawei S5720-36PC-EI-AC supports twenty-eight Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP. It also offers four Gig SFP ports and one interface slot. The interface slot supports optional cards.
Model | S5720-36PC-EI-AC |
Part Number | 02350BDQ |
Memory (RAM) | 2 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
PoE | Not supported |
Weight with packaging [kg(lb)] | 9.8 kg (21.61 lb) |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |

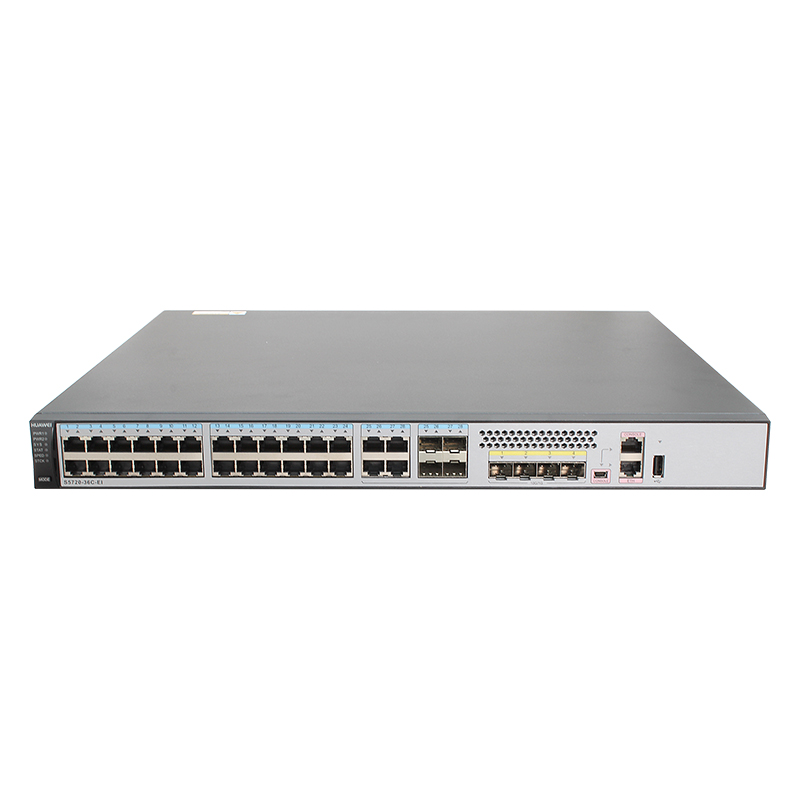

① | Twenty-four 10/100/1000BASE-T ports |
② | Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
③ | Four 1000BASE-X ports |
④ | One mini USB port |
⑤ | One console port |
⑥ | One ETH management port |
⑦ | One USB port |
⑧ | Ground screw |
⑨ | ESN label |

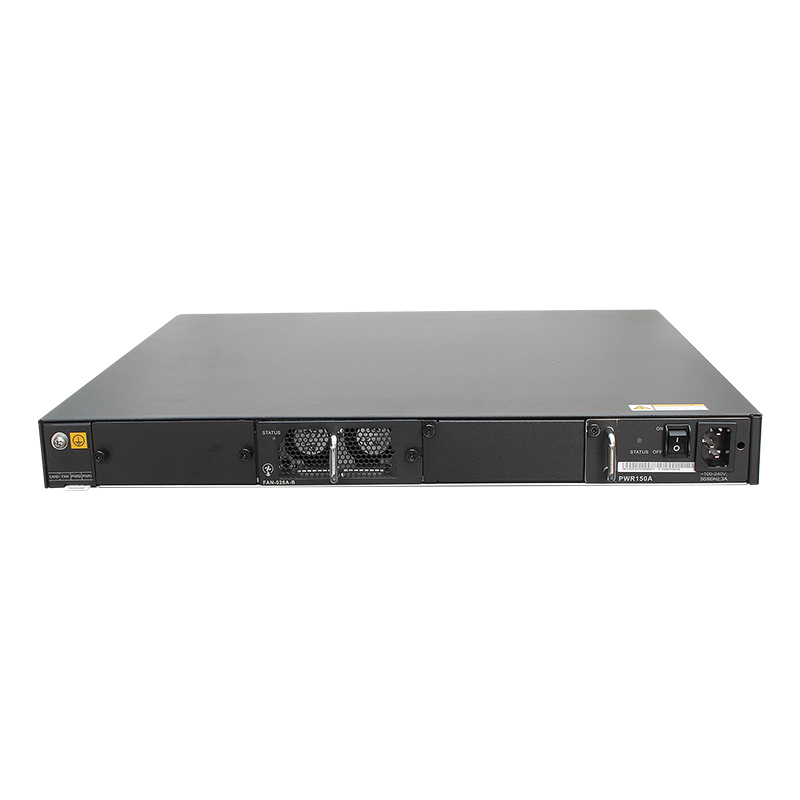

⑩ | Rear card slot |
⑪ | Fan slot |
⑫ | Power module slot 2 |
⑬ | Power module slot 1 |
Model | Description |
GE-SFP Optical Transceiver | |
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) | |
Electrical Transceiver, SFP , GE ,Electrical Interface Module(100m,RJ45) | |
10G-SFP+ Optical Transceiver | |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.1km,LC) | |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) | |
Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm,10km,LC) | |
Card | |
ES5D21X02S01 | 2 10 Gig SFP+ Interface Card(used in S5720EI series) |
ES5D21X02T01 | 2 10 Gig RJ45 Interface Card(used in S5720EI series) |
ES5D21VST000 | Dedicated stack card with 2*QSFP+ interface(Including one PCS of 1M QSFP+ cable ,Used in S5720EI series) |
Models | ||
Downlink Ports | 28 × Ethernet 10/100/1000 ports 4 of which are dual-purpose 10/100/1000 or SFP | 48 Ethernet 10/100/1000 ports |
Uplink Ports | 4 × Gig SFP | 4 × Gig SFP |
Power Supply | AC Power Supply | AC Power Supply |
Interface Slots | 1 | 1 |
Do you have any question about the S5720-36PC-EI-AC 02350BDQ?
Contact us now via[email protected]
Part Number | 02350BDQ |
Model | S5720-36PC-EI-AC |
Memory (RAM) | 2 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 80.05 years when no card is configured; 73.65 years when a 2-port 10GE SFP+ interface card is configured; 71.58 years when a 2-port 10GE RJ45 interface card is configured; 71.74 years when a stack card is configured |
Mean time to repair (MTTR) | 2 |
Availability | > 0.99999 |
Service port surge protection | Service ports on front panel: ±6 kV in common mode Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode |
Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |
Weight (with packaging) | 9.8 kg (21.61 lb) |
Stack ports | Ports on the 2-port 10GE SFP+ rear interface card Ports on the 2-port 10GE RJ45 rear interface card Ports on the 2-port QSFP+ rear stack card |
RTC | Supported |
RPS | Not supported |
PoE | Not supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC |
Maximum power consumption (100% throughput, full speed of fans) | 74.6 W |
Typical power consumption (30% of traffic load) · Tested according to ATIS standard · EEE enabled No PoE power consumption | 39.5 W (without subcard) 47.28 W (with 2*10G optical subcards) 52.17 W (2*QSFP+ stack cards) 55.14 W (with 2*10G electrical subcards) |
Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | < 51.2 dB(A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.) DC power modules configured: 0-2000 m (0-6562 ft.) |
Certification | EMC certification Safety certification Manufacturing certification |
