Huawei Switch S5720-36C-EI-DC (02350NHJ)

2723
4.8
4.8/5.0
Q/A
1 sold/Mon
Detail: S5720-36C-EI-DC (28 Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, 1 interface slot,with 150W DC)
Model: S5720-36C-EI-DC (02350NHJ)
Condition: Factory Sealed New
Related: Huawei Switch S5720-36C-EI-AC (02359562) Huawei Switch S5720-36C-EI-28S-DC (02350NHN) Huawei Switch S5720-36C-PWR-EI-DC (02350NHL)
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
5.5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei Switch S5720-36C-EI-DC (02350NHJ)


Huawei’s S5720-EI Series Gigabit Switches provide resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. Performance enhancements include advanced processing hardware, 10 Gbit/s uplink ports, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking.


Quick Specification

Model

S5720-36C-EI-DC

Part Number

02350NHJ

Memory (RAM)

2 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

PoE

Not supported

Weight with packaging [kg(lb)]

9.6 kg (21.17 lb)

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)

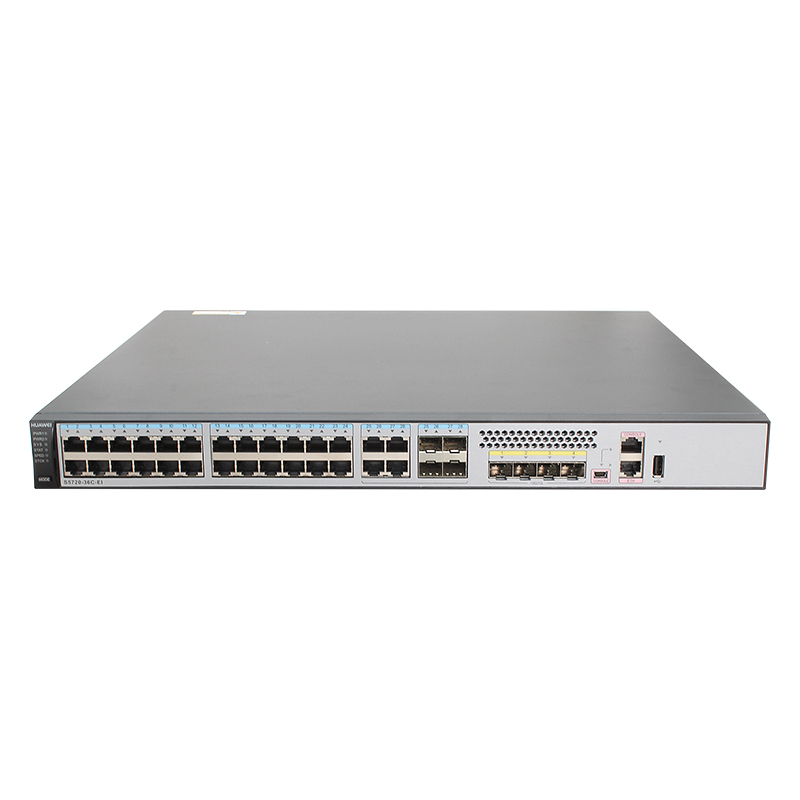

Appearance:

s5720-36c-ei-dc-datasheet



Twenty-four 10/100/1000BASE-T ports



Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)



Four 10GE SFP+ ports



One mini USB port



One console port



One ETH management port



One USB port

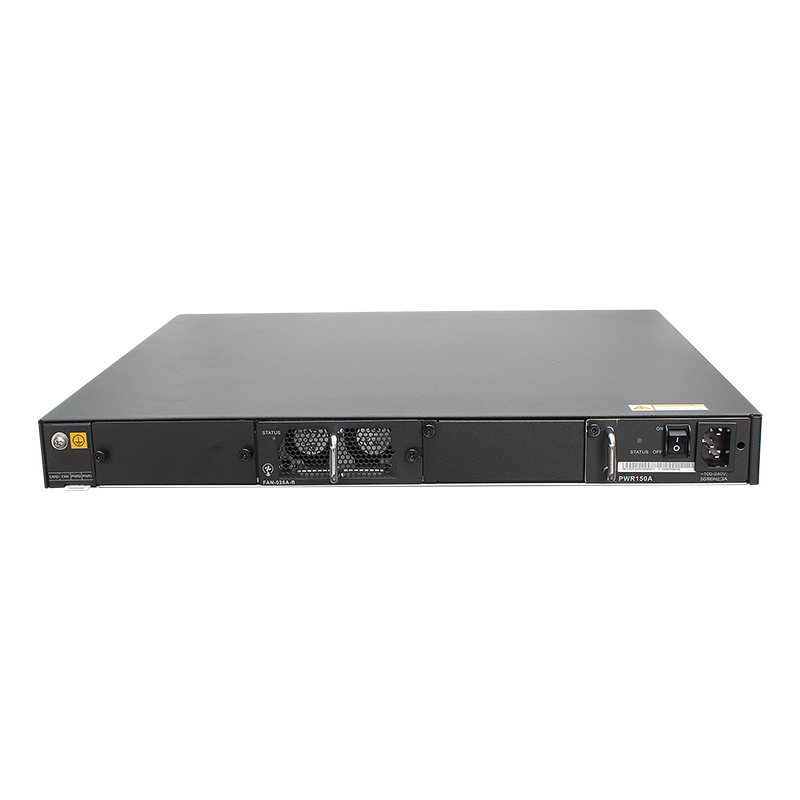

Ground screw



ESN label



Rear card slot



Fan slot



Power module slot 2



Power module slot 1


The Accessories for S5720-36C-EI-DC

Recommended Elements:

Model

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)

eSFP-FE-LX-SM1310

Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.1km,LC)

OMXD30000

Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm,10km,LC)

GE Copper Transceiver

SFP-1000BaseT

Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

10GE Interface Card

ES5D21X02T01

2 10 Gig RJ45 Interface Card(used in S5720EI series)

ES5D21X02S01

2 10 Gig SFP+ Interface Card(used in S5720EI series)

Stack Card

ES5D21VST000

Dedicated stack card with 2*QSFP+ interface(Including one PCS of 1M QSFP+ cable ,Used in S5720EI series)


Compare to Similar Items:

Product Code

S5720-36C-EI-DC

S5720-32X-EI-AC

Switching Capacity

598 Gbit/s

598 Gbit/s

Forwarding Performance

132 Mpps

102 Mpps

Fixed Interfaces

28 x 10/100/1,000 Base-T Ethernet ports, 4 x combo 100/1,000 Base-X SFP ports, and 4 x 10G SFP+ ports

24 x 10/100/1,000 Base-T, 4 x 100/1,000 Base-X SFP, 4 x 10 Gig SFP+

Extended Slot

One extended slot that supports an uplink interface card or private stack card

NA

Dimensions (W x D x H)

442 mm x 420 mm x 44.4 mm

442 mm x 220 mm x 43.6 mm

Front Power Input

No

Yes


Get more information


Do you have any question about the S5720-36C-EI-DC 02350NHJ?

Contact us now via[email protected]

Specific Data Sheet:


Part Number

02350NHJ

Model

S5720-36C-EI-DC

Memory (RAM)

2 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

80.05 years when no card is configured; 73.65 years when a 2-port 10GE SFP+ interface card is configured; 71.58 years when a 2-port 10GE RJ45 interface card is configured; 71.74 years when a stack card is configured

Mean time to repair (MTTR)

2

Availability

> 0.99999

Service port surge protection

Service ports on front panel: ±6 kV in common mode

Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode

Power supply surge protection

Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode

Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)

Weight (with packaging)

9.6 kg (21.17 lb)

Stack ports

Ports on the 2-port 10GE SFP+ rear interface card

Ports on the 2-port 10GE RJ45 rear interface card

Ports on the 2-port QSFP+ rear stack card

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-36 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

75.8 W

Typical power consumption (30% of traffic load)

·         Tested according to ATIS standard

·         EEE enabled

No PoE power consumption

39.5 W (without card)

47.28 W (with 2*10GE optical card)

52.17 W (with 2*QSFP+ stack card)

55.14 W (with 2*10GE electrical card)

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 51.2 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

AC power modules configured: 0-5000 m (0-16404 ft.)

DC power modules configured: 0-2000 m (0-6562 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
