Huawei Switch S5720-32C-HI-24S-AC (02358600)

4860
4.7
4.7/5.0
Q/A
1 sold/Mon
Detail: S5720-32C-HI-24S-AC(24 Gig SFP,8 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,with 2 interface slots,with 600W AC power supply)
Model: S5720-32C-HI-24S-AC (02358600)
Condition: Factory Sealed New
Related:
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
7.7
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei Switch S5720-32C-HI-24S-AC (02358600)


Huawei S5720-32C-HI-24S-AC is advanced Gigabit Ethernet switch that provides rich agile features, based on Huawei Versatile Routing Platform (VRP). With twenty-four Gig SFP, four 10 Gig SFP+ and two interface slots, the switch provides the ubiquitous service function to ensure consistent user experience. The Super Virtual Fabric (SVF) function virtualizes the entire network into one device. It also has multiple card modules to choose to satisfy different demands of customers. In addition, the switch supports flexible Ethernet networking, comprehensive VPN tunnel solutions, various security control methods, intelligent deployment, and simple operation and maintenance. The S5720-32C-HI-24S-AC switch is the best choice for the branches of high-quality large- and middle-sized campus networks.


Quick Specification

Model

S5720-32C-HI-24S-AC

Part Number

02358600

Memory (RAM)

512 MB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

PoE

Not supported

Weight with packaging [kg(lb)]

4.1 kg (9.04 lb)

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.8 mm (1.72 in. x 17.4 in. x 8.85 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 233.8 mm (1.72 in. x 17.4 in. x 9.21 in.)

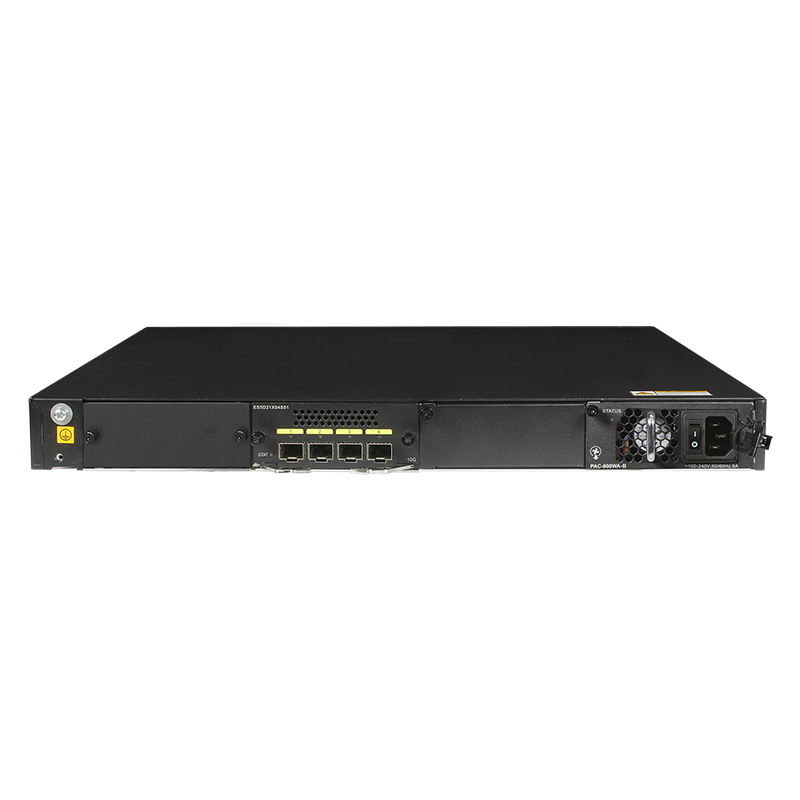

Appearance:

s5720-32c-hi-24s-ac-datasheet



Sixteen 100/1000BASE-X ports



Eight combo ports (10/100/1000BASE-T + 100/1000BASE-X)



Four 10GE SFP+ ports



One mini USB port



One console port



One ETH management port



One USB port



Ground screw



ESN label



Rear card slot 1



Rear card slot 2



Power module slot 2



Power module slot 1


The Accessories for S5720-32C-HI-24S-AC

Recommended elements:

Category

Model

Description

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.1km,LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.3km,LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm,10km,LC)

Power Module

PAC-600WA-B

600W AC Power Module(Back to Front, Power panel side exhaust)

PAC-350WA-B

350W DC Power Module(Back to Front, Power panel side exhaust)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45)


Compare to Similar Items:

Models

S5720-56C-HI-AC

S5720-32C-HI-24S-AC

Fixed Ports

48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+

24 x 1,000 Base-X, 8 x Combo (10/100/1,000 Base-T), 4 x 10 GE SFP+

Power Supply

600W AC power supply

600W AC power supply

Forwarding Performance

192 Mpps

168 Mpps

PoE

Not supported

Not supported

Switching Capacity

598 Gbit/s

598 Gbit/s

Power Consumption

< 183.3W

< 172.7W


Get more information


Do you have any question about the S5720-32C-HI-24S-AC 02358600?

Contact us now via[email protected]

Specific Data Sheet:


Part Number

02358600

Model

S5720-32C-HI-24S-AC

Memory (RAM)

4 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

56.21 years when no interface card is configured, 52.63 years when a 4-port 10GE interface card is configured

Mean time to repair (MTTR)

2

Availability

> 0.99999

Service port surge protection

Common mode: ±2 kV

Power supply surge protection

Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode

Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)

Weight (with packaging)

10.4 kg (22.93 lb)

Stack ports

Four fixed 10GE SFP+ ports on the front panel or ports on the 4-port 10GE SFP+ rear interface card

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

172.7 W

Typical power consumption (30% of traffic load)

·         Tested according to ATIS standard

·         EEE enabled

No PoE power consumption

122.12 W

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 60 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
