| Detail: | Huawei S5720-28X-SI Bundle(24 Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,with 150W AC power supply) |
| Model: | S5720-28X-SI-AC (02350DLT) |
| Condition: | Factory Sealed New |
| Related: | Huawei Switch S5720-28X-SI-24S-AC (98010625) Huawei Switch S5720-28X-SI-24S-DC (98010626) Huawei Switch S5720-28X-SI-DC (02350DGU) |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
7.7
|
2-7 Days
US$
|
| Payment: |
More
|
Huawei S5720-28X-SI delivers high performance of switching capacity and powerful layer 3 routing capabilities, such as OSFP/OSPFv3, BGP/BGP4+, ISIS/ISISv6, and provides voice, video and data services, helping enterprises build an integrated full service network with high availability and low latency. The S5720-28X-SI builds with 24 Gigabit Ethernet ports and 4 SFP+ 10G uplinks and it can be used as access or aggregation switches on campus networks or access switches in data centers. The S5720-28X-SI supports intelligent stacking (iStack). Multiple S5720-SI can be connected with stack cables to set up a stack, which functions as a virtual switch. A stack consists of a master switch, a backup switch, and several slave switches. The backup switch takes over services when the master switch fails, reducing service interruption time. Stacks support intelligent upgrade so that users do not need to change the software version of a switch when adding it to a stack. The iStack function allows users to connect multiple switches with stack cables to expand system capacity.
Model | S5720-28X-SI-AC |
Part Number | 02350DLT |
Memory (RAM) | 512 MB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
PoE | Not supported |
Weight with packaging [kg(lb)] | 9.1 kg (20.06 lb) |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |

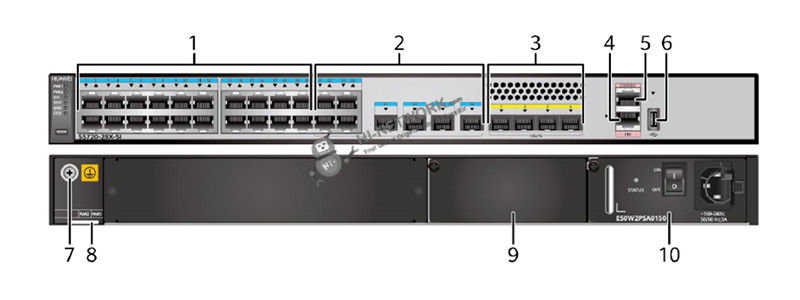

① | Twenty 10/100/1000BASE-T ports |
② | Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
③ | Four 10GE SFP+ ports |
④ | One ETH management port |
⑤ | One console port |
⑥ | One USB port |
⑦ | Ground screw |
⑧ | ESN label |
⑨ | Power module slot 2 |
⑩ | Power module slot 1 |
Model | Description |
FE-SFP Optical Transceiver | |
Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) | |
Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) | |
Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) | |
GE-SFP Optical Transceiver | |
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) | |
10G-SFP+ Optical Transceiver | |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) | |
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) | |
Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) | |
GE Copper Transceiver | |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) | |
Product Code | ||
Switching Capacity | 336 Gbit/s | 336 Gbit/s |
Forwarding Performance | 96 Mpps | 132 Mpps |
Downlink Interfaces | 24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP | 48 Ethernet 10/100/1,000 ports |
Uplink Interfaces | 4 x 10 Gig SFP+ | 4 x 10 Gig SFP+ |
Do you have any question about the S5720-28X-SI-AC 02350DLT?
Contact us now via[email protected]
Part Number | 02350DLT |
Model | S5720-28X-SI-AC |
Memory (RAM) | 512 MB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 82.4 years |
Mean time to repair (MTTR) | 2 |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±6 kV |
Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |
Weight (with packaging) | 9.1 kg (20.06 lb) |
Stack ports | GE electrical ports and 10GE SFP+ optical ports except combo ports on the front panel |
RTC | Supported |
RPS | Not supported |
PoE | Not supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC |
Maximum power consumption (100% throughput, full speed of fans) | 37.5 W |
Typical power consumption (30% of traffic load) · Tested according to ATIS standard · EEE enabled No PoE power consumption | 22.3 W |
Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | < 52 dB(A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.) DC power modules configured: 0-2000 m (0-6562 ft.) |
Certification | EMC certification Safety certification Manufacturing certification |
