Huawei Switch S5700-28TP-PWR-LI-AC (98010537)
  • Huawei Switch S5700-28TP-PWR-LI-AC (98010537)

Huawei Switch S5700-28TP-PWR-LI-AC (98010537)

1077
4.6
4.6/5.0
Q/A
0 sold/Mon
Detail: 24 Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V
Model: Huawei Switch S5700-28TP-PWR-LI-AC (98010537)
Condition: Factory Sealed New
Related: Genuine New eSFP-FE-LX-SM1310 (02315205) Huawei 100BASE-LX SFP 1310nm 20km DOM Duplex LC SMF Transceiver Module Genuine New SFP-1000BaseT (02313URG 02314171) Huawei 1000BASE-T SFP Copper RJ-45 100m Transceiver Module Huawei Switch S5700-28P-LI-AC (02353173) Huawei Switch S5700-28P-PWR-LI-AC (02353175)
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
5.5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei Switch S5700-28TP-PWR-LI-AC (98010537)


The S5700-28TP-PWR-LI-AC gigabit enterprise switch is next-generation energy-saving switch developed by Huawei. With 24 Ethernet ports, 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP, it provides a large switching capacity and high-density GE ports to implement 10 Gbit/s upstream transmissions, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios. Using advanced energy conservation technology plus PoE function, the S5700-28TP-PWR-LI-AC is dedicated to helping enterprise customers build a reliable and secure next-generation IT network.



Quick Specification


Table 1 shows the quick specification.

Model

S5700-28TP-PWR-LI-AC

Part Number

98010537

Fixed Ports

24 x 10/100/1,000 Base-T Ethernet ports, 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP

MAC Address Table Size

16 MAC

Voltage Required

AC:
Rated voltage range: 100V to 240V AC, 50/60 Hz
Maximum voltage range: 90V to 264V AC, 47/63 Hz

Power Device

AC power supply, supporting RPS

Power Consumption Operational

 < 469.7W

Forwarding Performance

42 Mpps

Switching Capacity

256 Gbit/s

Dimensions (W x D x H)

442 mm x 310 mm x 43.6 mm

Weight

5.7kg

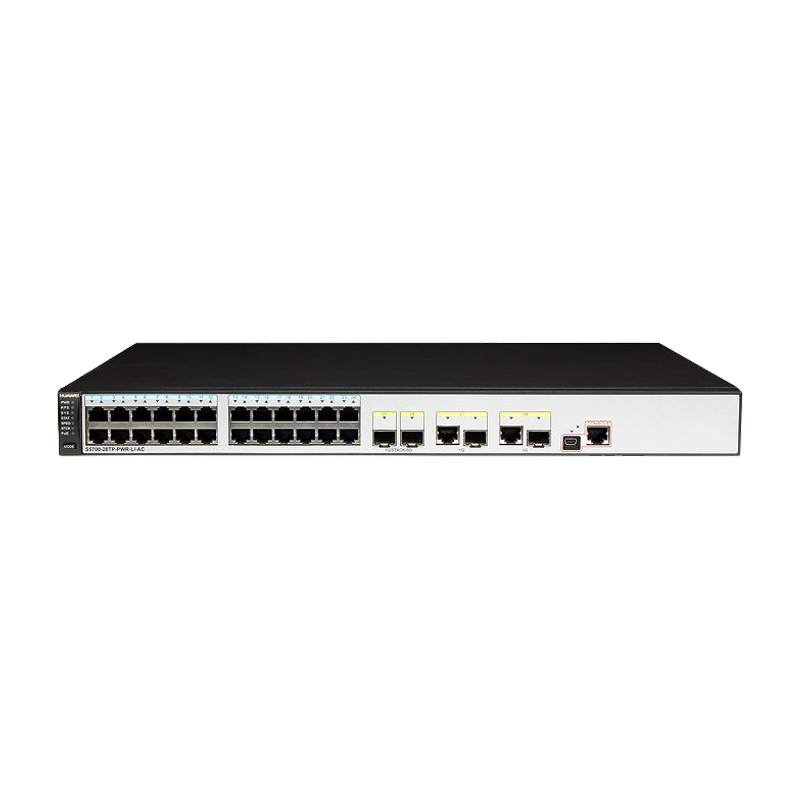

Figure 1 shows the appearance of S5700-28TP-PWR-LI-AC.


front-s5700-28tp-pwr-li-ac-datasheet

Product Details


Figure 2 shows the front panel of S5700-28TP-PWR-LI-AC.

front-panel-s5700-28tp-pwr-li-ac-datasheet

Note:

(1)

Twenty-four PoE+ 10/100/1000BASE-T ports

(4)

One mini USB port

(2)

Two 1000BASE-X ports

(5)

One console port

(3)

Two combo ports

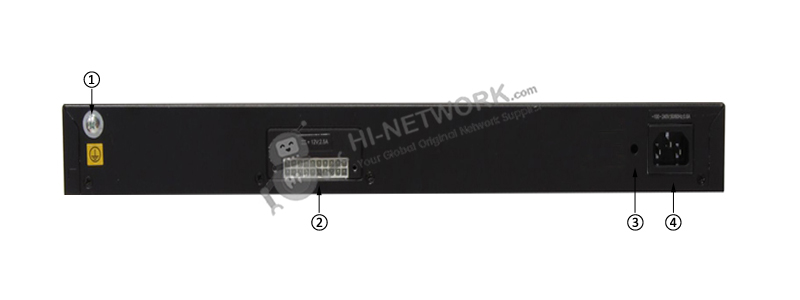

Figure 3 shows the back panel of S5700-28TP-PWR-LI-AC.

back-panel-s5701-28x-li-ac-datasheet

Note:

(1)

Ground screw

(3)

Jack for AC terminal locking latch

(2)

RPS socket

(4)

AC socket

* The ground screw is used with a ground cable.

* RPS socket is used with an RPS cable, which is not hot swappable.

A PoE switch can have an RPS power supply connected to this socket to provide inputs for system power supply and PoE power supply. The two inputs are independent of each other. The RPS power supply can also be used as a backup of the system power supply when it does not provide PoE power.

* The AC terminal locking latch is not delivered with the switch.

*AC socket is used with an AC power cable.


Optical Modules


Table 2 shows the recommended optical modules.

Model

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC)

eSFP-FE-LX-SM1310

Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

GE copper transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)


Compare to Similar Items


Table 3 shows the comparison of Huawei S5700-28P-LI-AC, S5700-28P-PWR-LI, S5700-28TP-LI-AC and S5700-28TP-PWR-LI-AC.

Models

S5700-28P-LI-AC

S5700-28P-PWR-LI

S5700-28TP-LI-AC

S5700-28TP-PWR-LI-AC

Fixed Ports

24 x 10/100/1,000 Base-T Ethernet ports,
4 x GE SFP ports

24 x 10/100/1,000 Base-T Ethernet ports,
4 x GE SFP ports

24 x 10/100/1,000 Base-T Ethernet ports,
4 x GE SFP ports,
 2 x Combo 10/100/1,000 Base-T Ethernet ports

24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports,
2 x Combo 10/100/1,000 Base-T Ethernet ports

Power Supply

AC

AC

AC

AC

PoE

Not supported

Supported

Not supported

Supported

Forwarding Performance

42 Mpps

42 Mpps

42 Mpps

42 Mpps

Switching Capacity

256 Gbit/s

256 Gbit/s

256 Gbit/s

256 Gbit/s


Get more information


Do you have any question about the S5700-28TP-PWR-LI-AC (98010537)?

Contact us now via [email protected].

Specific Data Sheet:


S5700-28TP-PWR-LI-AC Specification

Fixed Ports

24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports, 2 x Combo 10/100/1,000 Base-T Ethernet ports

MAC Address Table

16K MAC address entries MAC address learning and aging

Static, dynamic, and blackhole

MAC address entries

Packet filtering based on source MAC addresses

Interface-based MAC learning limiting

VLAN Features

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces

1:1 and N:1 VLAN mapping

Jumbo frame

10K

Reliability

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover

SEP

ERPS (G.8032)

STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

BPDU protection, root protection, and loop protection

BPDU tunnel

IP Routing

Static route, RIP, RIPng (S5700-10P-LI-AC/S5700-10P-PWR-LI-AC do not support RIPng)

IPv6 Features

Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, and protocol type

MLD v1/v2 snooping

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Interface-based multicast traffic statistics

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Interface-based traffic policing and two-rate and three-color CAR

Eight queues on each interface

WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on interfaces

Security

Hierarchical user management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface number, and VLAN ID

Port isolation, port security, and sticky MAC

MFF

Blackhole MAC address entries

Limit on the number of learned MAC addresses IEEE

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC

SSH V2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Access Security

DHCP relay, DHCP server, DHCP snooping, and DHCP security

Lightning Protection

Service interface: 6 kV

Super Virtual Fabric (SVF)

Working as an SVF client that is plug-and-play with zero configuration

Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations

Supports independent running client

Management and Maintenance

iStack (excluding S5700-10P-LI-AC, S5700-10P-PWR-LI-AC, S5700S-28P-LI-AC, S5700S-52P-LI-AC and battery LAN switches)

Virtual Cable Test (VCT)

Remote configuration and maintenance using Telnet

SNMP v1/v2c/v3

RMON

eSight and web-based NMS

HTTPS

LLDP/LLDP-MED

System logs and multi-level alarms

802.3az EEE

Dying Gasp (excluding battery LAN switches)

Device hibernation mode (excluding PWR serials switches, battery LAN switches, S5700-10P-LI, S5700-28X-LI-24S, S5701-28X-LI-24S-AC and S5700-52X-LI-48CS-AC)

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)

Operating Environment

Long-term operating temperature: 0°C to 50°C
Relative humidity: 5% to 95% (non-condensing)

Input Voltage

AC: Rated voltage range: 100V to 240V, 50 Hz/60 Hz, Maximum voltage range: 90V to 264V, 47 Hz/63 Hz

Power Socket Position

rear power sockets

Battery

One slot for lead-acid battery charger module (supported by battery LAN switches)

Dimensions (W x D x H)

442 mm x 310 mm x 43.6 mm

Power Consumption

S5701-28TP-PWR-LI-AC < 238.7W (PoE: 185W)
