Huawei Switch S2751-28TP-EI-AC (02355245)

USD

4.8 4.8/5.0 Reviews Q/A 2 sold/Mon
Detail:	S2750-28TP-PWR-EI-AC(24 Ethernet 10/100 PoE+ ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V)
Model:	S2751-28TP-EI-AC (02355245)
Condition:	Factory Sealed New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 9.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei Switch S2751-28TP-EI-AC (02355245)

Huawei S2751-28TP-PWR-EI-AC switch provides 12 × PoE+ 10/100BASE-TX ports, 12 × 10/100BASE-TX ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP. S2751-EI are the sub-series switches of S2700-EI.

Quick Specification:

Model	S2751-28TP-PWR-EI-AC
Part Number	02355245
Memory (RAM)	256 MB
Flash	200 MB
PoE	Supported
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.)
Weight	4.5 kg (9.92 lb)

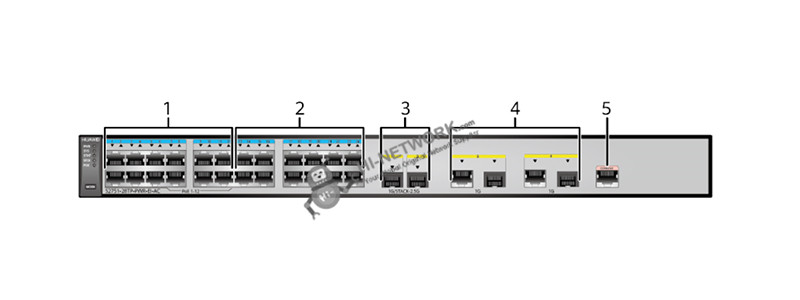

The Front Panel:

s2751-28tp-pwr-ei-ac-front-datasheet

①	Twelve PoE+ 10/100BASE-TX ports
②	Twelve 10/100BASE-TX ports
③	Two 1000BASE-X ports
④	Two combo ports (10/100/1000BASE-T + 100/1000BASE-X)
⑤	One console port

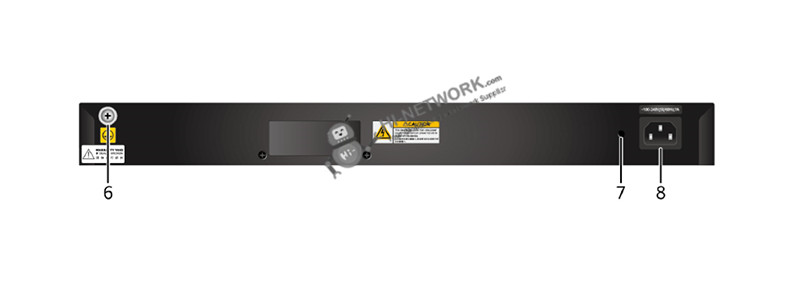

The Back Panel:

s2751-28tp-pwr-ei-ac-back-datasheet

⑥	Ground screw
⑦	Jack reserved for AC power cable locking strap
⑧	AC socket

The Accessories for S2751-28TP-EI-AC

Recommended optical transceivers:

Models	Descriptions
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver,SFP,100M/155M,Multi-mode Module (1310nm,2km,LC)
eSFP-FE-LX-SM1310	Optical Transceiver,eSFP,100M/155M,Single-mode Module (1310nm,15km,LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module (1310nm,40km,LC)
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.55km,LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,40km,LC)

Compare to Similar Items:

Models	S2751-28TP-PWR-EI-AC	S2750-28TP-PWR-EI-AC
Downlink Ports	12 Ethernet 10/100 PoE+ ports 12 Ethernet 10/100 ports	24 Ethernet 10/100 PoE+ ports
Uplink Ports	2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP	2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP
Power Supply	AC Power Supply	AC Power Supply
PoE	Supported	Supported
Version	Enhanced	Enhanced

Get More Information

Do you have any question about the S2751-28TP-EI-AC 02355245?

Specific Data Sheet:

Part Number	02355245
Model	S2751-28TP-PWR-EI-AC
Memory (RAM)	256 MB
Flash	200 MB
Mean time between failures (MTBF)	79.94 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.)
Weight (with packaging)	4.5 kg (9.92 lb)
Stack ports	Two uplink 1000BASE-X optical ports
RTC	Not supported
RPS	Not supported
PoE	Supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, 100% PoE loads, full speed of fans)	147 W (system power consumption: 23 W, PoE: 124 W)
Typical power consumption (30% of traffic load) · Tested according to ATIS standard · No PoE power consumption	23.89 W
Operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	Noise-free (no fans)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-2000 m (0-6562 ft.)
Certification	EMC certification Safety certification Manufacturing certification
