Huawei Switch S2700-9TP-EI-DC (02352347)

USD

4.9 4.9/5.0 Reviews Q/A 1 sold/Mon
Detail:	S2700-9TP-EI-DC(8 Ethernet 10/100 ports,1 dual-purpose 10/100/1000 or SFP,DC -48V)
Model:	S2700-9TP-EI-DC (02352347)
Condition:	Factory Sealed New
Related:	Huawei Switch S2700-9TP-EI-AC (02352340) Huawei Switch S2700-26TP-EI-DC (02352331) Huawei Switch S2700-9TP-PWR-EI (02352335) Huawei Switch S2700-26TP-EI-DC (02352331)
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 8.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei Switch S2700-9TP-EI-DC (02352347)

Huawei S2700-9TP-EI-DC is a switch that supports 8 Ethernet 10/100 ports, one dual-purpose 10/100/1000 or SFP, and DC power supply. It’s one of the S2700 Series Enterprise Switches that deliver Standard (SI) and Enhanced (EI) models with Huawei’s exclusive Easy Operation Toolkit for easy installation, configuration, monitoring, and trouble shooting. This switch is an Enhanced model.

Quick Specification:

Model	S2700-9TP-EI-DC
Part Number	02352347
Memory (RAM)	64 MB
Flash	16 MB
PoE	Not supported
Dimensions (H x W x D)	43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.8 in. x 7.1 in.)
Weight	≤ 3.5 kg (7.72 lb)

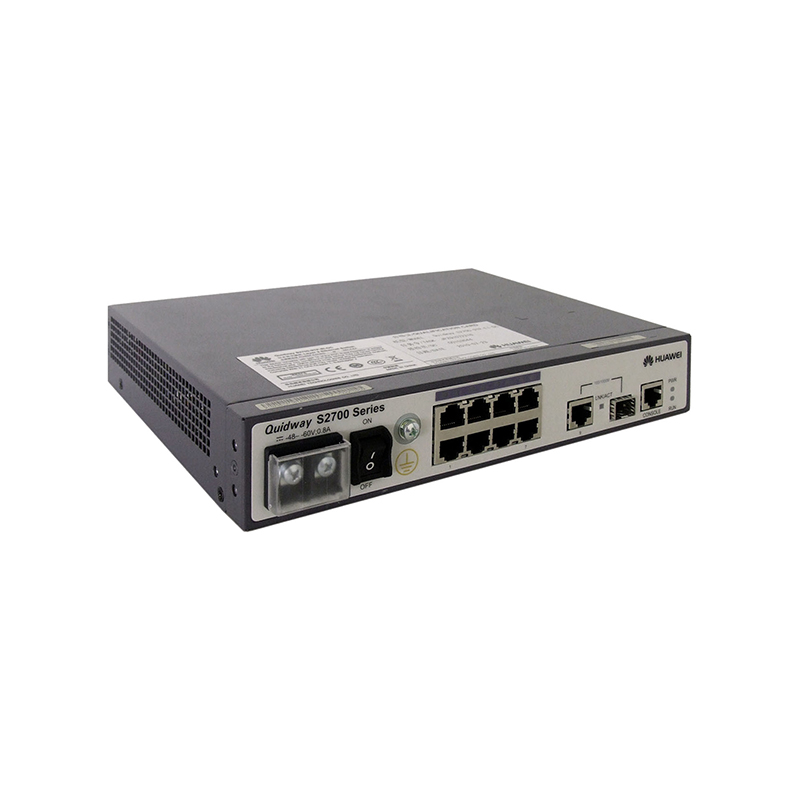

The Front Panel:

s2700-9tp-ei-dc-front-datasheet

①	DC power terminal
②	Power switch
③	Ground screw
④	Eight 10/100BASE-TX ports
⑤	One combo port (10/100/1000BASE-T + 100/1000BASE-X)
⑥	One console port

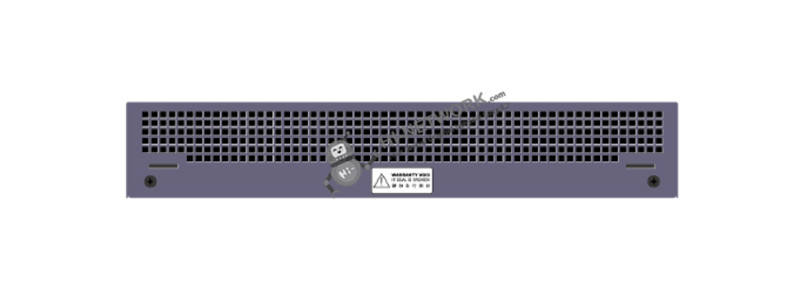

The Back Panel:

s2700-9tp-ei-dc-back-datasheet

The Accessories for S2700-9TP-EI-DC

Recommended optical transceivers:

Models	Descriptions
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver,SFP,100M/155M,Multi-mode Module (1310nm,2km,LC)
eSFP-FE-LX-SM1310	Optical Transceiver,eSFP,100M/155M,Single-mode Module (1310nm,15km,LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module (1310nm,40km,LC)
GE-SFP Optical Transceiver
SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module (100m,RJ45)
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.55km,LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,40km,LC)

Compare to Similar Items:

Models	S2700-9TP-EI-AC	S2700-9TP-EI-DC
Downlink Ports	8 x Ethernet 10/100 ports	8 x Ethernet 10/100 ports
Uplink Ports	1 x dual-purpose 10/100/1,000 or SFP	1 x dual-purpose 10/100/1,000 or SFP
Power Supply	AC	DC
Models’ vesion	Enhanced	Enhanced

Get More Information

Do you have any question about the S2700-9TP-EI-DC 02352347?

Specific Data Sheet:

Part Number	02352347
Model	S2700-9TP-EI-DC
Memory (RAM)	64 MB
Flash	16 MB
Mean time between failures (MTBF)	44.1 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D)	43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.8 in. x 7.1 in.)
Weight	≤ 3.5 kg (7.72 lb)
Stack ports	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	-48 V DC to -60 V DC
Maximum voltage range	-36 V DC to -72 V DC
Maximum power consumption (100% throughput)	12.8 W
Operating temperature	-5°C to +50°C (23°F to 122°F)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	Noise-free (no fans)
Relative humidity	0-2000 m (0-6562 ft.)
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
