Huawei Switch S2700-26TP-PWR-EI (02352336)

USD

4.9 4.9/5.0 Reviews Q/A 1 sold/Mon
Detail:	S2700-26TP-PWR-EI Mainframe(24 Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, PoE+, without power module)
Model:	S2700-26TP-PWR-EI (02352336)
Condition:	Factory Sealed New
Related:	Huawei Switch S2700-26TP-SI-AC (02352330) Huawei Switch S2700-26TP-EI-AC (02352302) Huawei Switch S2700-26TP-EI-DC (02352331)
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 9.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei Switch S2700-26TP-PWR-EI (02352336)

S2700-26TP-PWR-EI Mainframe(24 Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, PoE+, without power module)

Quick Specification:

Model	S2700-26TP-PWR-EI
Part Number	02352336
Memory (RAM)	64 MB
Flash	16 MB
PoE	Supported
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Weight	≤ 8 kg (17.64 lb)

The Front Panel:

s2700-26tp-pwr-ei-front-datasheet

①	Twenty-four PoE+ 10/100BASE-TX ports
②	Two combo ports (10/100/1000BASE-T + 100/1000BASE-X)
③	One console port

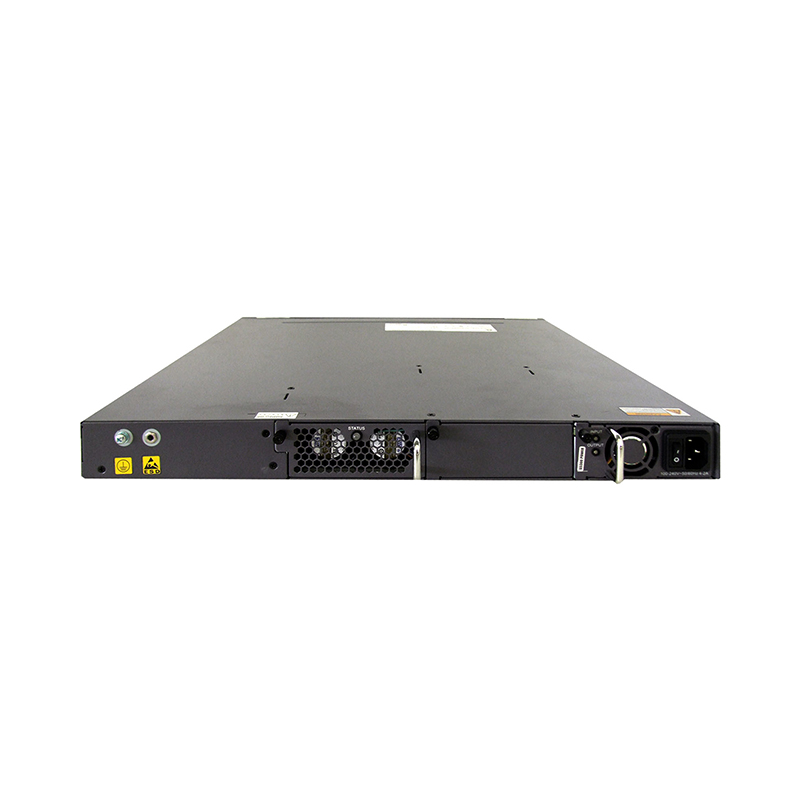

The Back Panel:

s2700-26tp-pwr-ei-back-datasheet

④	Ground screw
⑤	ESD jack
⑥	Fan slot
⑦	Power module slot 2
⑧	Power module slot 1

The Accessories for S2700-26TP-PWR-EI

Recommended optical transceivers:

Models	Descriptions
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver,SFP,100M/155M,Multi-mode Module (1310nm,2km,LC)
eSFP-FE-LX-SM1310	Optical Transceiver,eSFP,100M/155M,Single-mode Module (1310nm,15km,LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module (1310nm,40km,LC)
GE-SFP Optical Transceiver
SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module (100m,RJ45)
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.55km,LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,40km,LC)

Compare to Similar Items:

Models	S2700-26TP-SI-AC	S2700-26TP-EI-AC	S2700-26TP-EI-DC	S2700-26TP-PWR-EI
Downlink Ports	24 Ethernet 10/100 ports	24 Ethernet 10/100 ports	24 Ethernet 10/100 ports	24 Ethernet 10/100 ports
Uplink Ports	2 dual-purpose 10/100/1,000 or SFP	2 dual-purpose 10/100/1,000 or SFP	2 dual-purpose 10/100/1,000 or SFP	2 dual-purpose 10/100/1,000 or SFP
Power Supply	AC	AC	DC	AC
PoE Support	N/A	N/A	N/A	PoE

Get More Information

Do you have any question about the S2700-26TP-PWR-EI 02352336?

Specific Data Sheet:

Part Number	02352336
Model	S2700-26TP-PWR-EI
Memory (RAM)	64 MB
Flash	16 MB
Mean time between failures (MTBF)	34.8 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±1 kV
Power supply surge protection	±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Weight	≤ 8 kg (17.64 lb)
Stack ports	Not supported
RPS	Not supported
PoE	Supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput)	808 W (system power consumption: 68 W, PoE: 740 W)
Operating temperature	-5°C to +50°C (23°F to 122°F)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 51 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
