Huawei Switch S1720-20GFR-4TP (98010545)

USD

5 5/5.0 Reviews Q/A 17 Sold/Mon
Detail:	S1720-20GFR-4TP (16 Ethernet 10/100/1000 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V)
Model:	S1720-20GFR-4TP (98010545)
Condition:	Factory Sealed New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 8.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei Switch S1720-20GFR-4TP (98010545)

The S1700 series switches are next-generation energy-saving Ethernet access switches. They provide easy installation and maintenance methods and various service features to help users build secure, reliable, and high-performance networks. The S1700 series switches can be widely used in Ethernet access scenarios such as small- and medium-sized enterprises, Internet cafes, hotels, and schools.

Quick Specification

Table 1 shows the quick specification.

Model	S1720-20GFR-4TP
Part Number	98010750
First supported version	V200R006C10
Description	S1720-20GFR-4TP (16 Ethernet 10/100/1000 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V)
Memory	256 MB
Flash memory	200 MB
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Relative humidity	5% to 95%, non-condensing

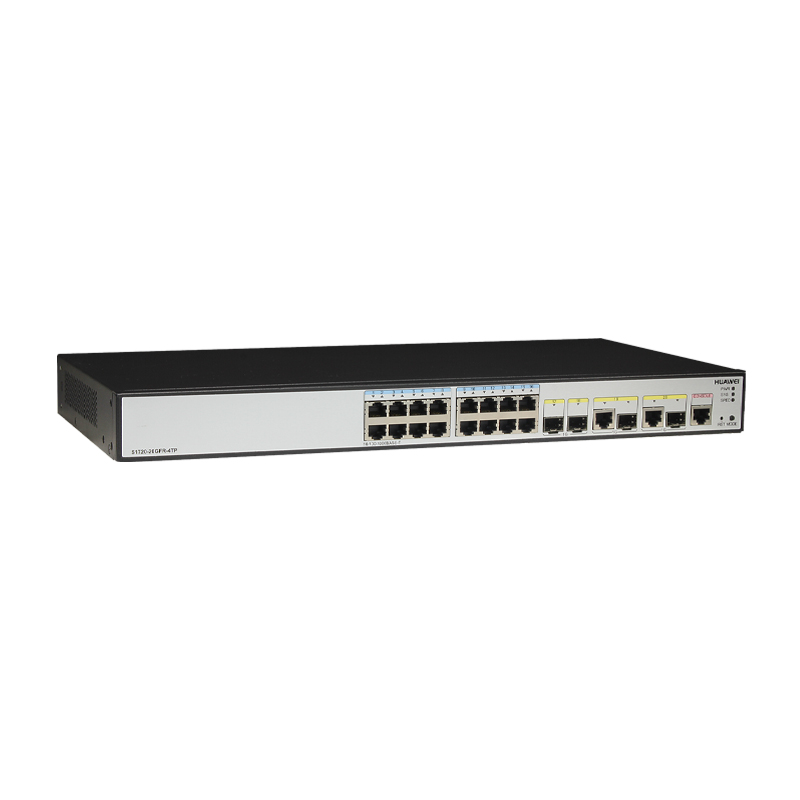

Figure 1 shows the appearance of S1720-20GFR-4TP.

front-top-s1720-20gfr-4tp-datasheet

Product Details

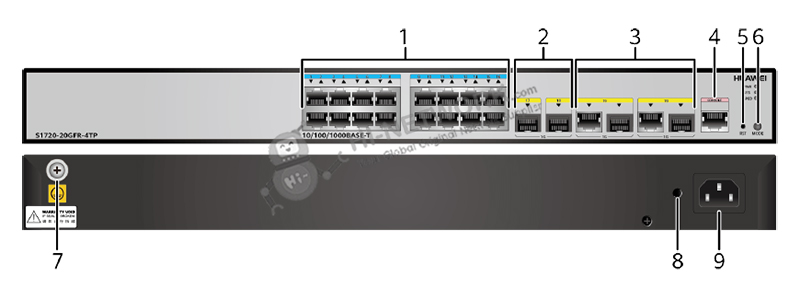

Figure 2 shows the structure of S1720-20GFR-4TP.

structure-s1720-20gfr-4tp-datasheet

Note:

(1)	Sixteen 10/100/1000BASE-T ports	(6)	Mode switching button
(2)	Two 1000BASE-X Ethernet ports	(7)	Ground screw
(3)	Two combo ports (10/100/1000BASE-T + 100/1000BASE-X)	(8)	Jack reserved for AC power cable locking strap
(4)	One console port	(9)	AC power socket
(5)	Reset button

Get More Information

Do you have any question about the S1720-20GFR-4TP (98010545)?

Specific Data Sheet:

S1720-20GFR-4TP Datasheet
Model	S1720-20GFR-4TP
Part Number	98010545
Description	S1720-20GFR-4TP (16 Ethernet 10/100/1000 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V)
Memory (RAM)	256 MB
Flash	200 MB
Mean time between failures (MTBF)	67 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Weight (including packaging)	3.5 kg (7.72 lb)
Stack ports	Not supported
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput)	20.7 W
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	Noise-free (no fans)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
