Huawei Switch LS-S5328C-PWR-EI (02351827)


Huawei S5300 Series Switch S5328C-PWR-EI Mainframe 24 10/100/1000Base-T, PoE, Chassis, Dual Slots of power, Without Flexible Card and Power Module). It is one of the Quidway S5300 series gigabit switches. The Quidway S5300 series gigabit switches (hereinafter referred to as the S5300s) are new generation Ethernet gigabit switches developed by Huawei to meet the requirements for high-bandwidth access and Ethernet multiservice convergence, providing powerful Ethernet functions for carriers and enterprise customers. Based on the new generation high-performance hardware and Huawei Versatile Routing Platform (VRP) software, the S5300 features large capacity and gigabit interfaces of high density, provides 10G uplinks, meeting customers' requirements for the 1G and 10G uplink devices of high density. The S5300 can meet the requirements of multiple scenarios such as service convergence on campus networks and intranets, the access to the IDC at a rate of 1000 Mbit/s, and the access to computers at a rate of 1000 Mbit/s on intranets.



Quick Specification


Table 1 shows the quick specification.

Model

LS-S5328C-PWR-EI

Part Number

02351827

Description

S5328C-PWR-EI Mainframe (24 10/100/1000Base-T ports and supports 2 10GE XFP subcards, 4 1000Base-X SFP subcards, 2 10GE SFP+subcards, Dual Slots of power, Without Flexible Card and Power Module)

Fixed Port

24*10/100 /1000 Base-TX

Extended slot

two extended slots, which can be installed with uplink subcard and stacking card respectively

Port switching capacity (bit/s)

128 Gbit/s

Board switching capacity

256 Gbit/s

Forwarding Performance

96 Mpps

RPS

Not supported

PoE

Yes

Mean time between failures (MTBF)

52 years when a 2x10GE card is configured; 55.4 years when a 4xGE front card is configured

Memory

256 MB

Flash

32 MB

Input voltage

AC: Rated voltage: 100 V to 240 V AC, 50/60 Hz Maximum voltage: 90 to 264 V AC, 50/60 Hz

Power consumption

Max: 472 W (PoE: 370 W)

Dimensions (W x D x H)

442.0 mm x 420.0 mm x 43.6 mm

Weight

Fully loaded ≤ 8.5 kg
Empty loaded ≤ 5 kg

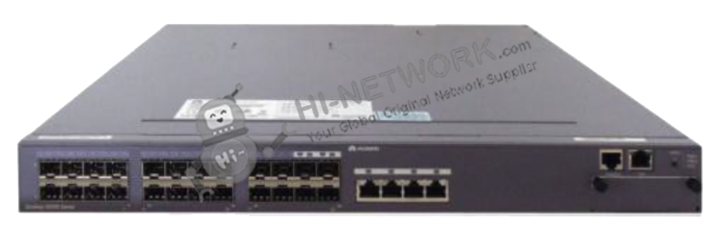

Figure 1 shows the appearance of LS-S5328C-PWR-EI.


front-ls-s5328c-ei-24s-datasheet


Product Details


Figure 2 shows the front panel of LS-S5328C-PWR-EI.

front-panel-ls-s5328c-pwr-ei-datasheet


Note:

(1)

Twenty-four PoE+ 10/100/1000BASE-T Ethernet electrical ports

(3)

One ETH management port

(2)

One console port

(4)

Front card slot

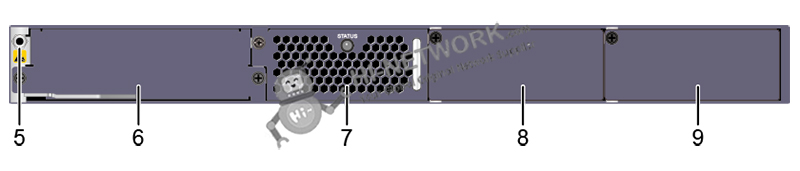

Figure 3 shows the back panel of LS-S5328C-PWR-EI.

back-panel-ls-s5328c-pwr-ei-datasheet


Note:

(5)

ESD jack

(8)

Power module slot 2

(6)

Rear card slot

(9)

Power module slot 1

(7)

Fan module slot


The Modules


Table 2 shows the recommended elements for the LS-S5328C-PWR-EI.

Model

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC)

eSFP-FE-LX-SM1310

Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)


Compare to Similar Items


Table 3 shows the comparison of LS-S5328C-PWR-EI, LS-S5352C-EI and LS-S5328C-EI-24S.

Model

LS-S5328C-PWR-EI

LS-S5352C-EI

LS-S5328C-EI-24S

Fixed Port

24*10/100 /1000 Base-TX

48*10/100 /1000 Base-TX

24*10/100 /1000 Base-TX

Port switching capacity (bit/s)

128 Gbit/s

176 Gbit/s

128 Gbit/s

Board switching capacity

256 Gbit/s

256 Gbit/s

256 Gbit/s

Forwarding Performance

96 Mpps

132 Mpps

96 Mpps

RPS

Not supported

Not supported

Not supported

PoE

Yes

No

No

Mean time between failures (MTBF)

52 years when a 2x10GE card is configured; 55.4 years when a 4xGE front card is configured

46.05 years when a 2x10GE card is configured; 57.08 years when a 4xGE front card is configured; 25.58 years when a 4x10GE front card is configured

41.33 years when a 2x10GE card is configured; 50.00 years when a 4xGE front card is configured; 26.52 years when a 4x10GE front card is configured

Memory

256 MB

256 MB

256 MB

Flash

32 MB

32 MB

32 MB

Power consumption

Max: 472 W (PoE: 370 W)

< 88 W

< 60 W


Get more information


Do you have any question about the LS-S5328C-PWR-EI (02351827)?

Contact us now via [email protected].

Specific Data Sheet:


LS-S5328C-PWR-EI Specification

Technical Specifications

Memory (RAM)

256 MB

Flash

32 MB

Mean time between failures (MTBF)

52 years when a 2x10GE card is configured; 55.4 years when a 4xGE front card is configured

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port protection

±1 kV in common mode

Power supply protection

±2 kV in differential mode; ±4 kV in common mode

Dimensions (W x D x H)

442.0 mm x 420.0 mm x 43.6 mm

Weight

Fully loaded:8.5 kg
Empty loaded:5 kg

Stack ports

Two stack ports available on each stack card

Maximum stack bandwidth (bidirectional)

48 Gbit/s

RPS

Not supported

PoE

Yes

Rated voltage range

-48 V DC to -60 V DC
100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

-36 V DC to -72 V DC
90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans)

472 W (system power consumption: 102 W; PoE: 370 W)

Operating temperature

0°C to 50°C

Storage temperature

-40°C to +70°C

Noise under normal temperature (27°C, sound power)

less than 45 dBA

Relative humidity

5% RH to 95% RH, noncondensing

Operating altitude

0 m to 5000 m

EMC

CISPR22 Class A

CISPR24

EN55022 Class A

EN50024

ETSI EN 300 386 Class A

CFR 47 FCC Part 15 Class A

ICES 003 Class A

AS/NZS CISPR22 Class A

IEC61000-4-2

ITU-T K 20

ITU-T K 44

Environmental

RoHS

standards

REACH

WEEE

Security

IEC 60950-1

EN 60950-1/A11/A12

UL 60950-1

CSA C22.2 No 60950-1

AS/NZS 60950.1

Laser safety

IEC60825-1

IEC60825-2

EN60825-1

EN60825-2
