Huawei Switch LS-S2318TP-SI-AC (02351373)


LS-S2318TP-SI-AC is one of the Huawei S2300 Series Switches. The Quidway S2300 series switches are new generation Ethernet intelligent access switches developed by Huawei. The S2300 is mainly deployed on the IP MAN and intranets, meeting the requirements of carrying various Ethernet services and accessing the Ethernet. Based on the new generation high-performance hardware and Huawei Versatile Routing Platform (VRP) software, the S2300 supports rich and flexible service features and thus improves operability, manageability, and service expansibility. The S2300 series are classified into SI and EI models. Huawei S2300 Series Switch S2318TP-SI Mainframe 16 10/100 FastEthernet ports and 2 Combo GE 10/100/1000 Rj-45 +100/1000 SFP) ports, AC 110/220V, basic layer 2 feature.



Quick Specification


Table 1 shows the quick specification.

Model

LS-S2318TP-SI-AC

Part Number

02351373

Fixed Ports

sixteen 10/100Base-TX ports and two gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X)

Forwarding performance

5.4 Mpps

Port switching capacity

7.2 Gbit/s

Backplane switching capacity

32 Gbit/s

Power supplies

AC:
Rated voltage: 100 V to 240 V, 50/60 Hz
Maximum voltage: 90 V to 264 V, 50/60 Hz

POE

Non-POE Switch

Software

Standard Version

Power consumption

14.5 W

Dimensions: width x depth x height

442 mm x 220 mm x 43.6 mm

Weight

2.4 kg

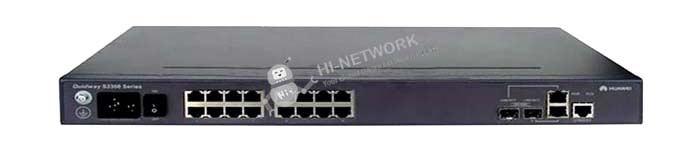

Figure 1 shows the appearance of LS-S2318TP-SI-AC.

front-ls-s2318tp-si-ac-datasheet



Product Details

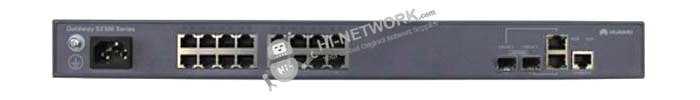

Figure 2 shows the front panel of LS-S2318TP-SI-AC.

front-panel-ls-s2318tp-si-ac-datasheet


The Modules


Table 2 shows the recommended elements for the LS-S2318TP-SI-AC.

Model

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC)

eSFP-FE-LX-SM1310

Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

GE Copper Transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)


Compare to Similar Items


Table 3 shows the comparison of  LS-S2318TP-SI-AC and LS-S2309TP-PWR-EI.

Model

LS-S2318TP-SI-AC

LS-S2309TP-PWR-EI

Fixed Ports

sixteen 10/100Base-TX ports and two gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X)

eight 10/100Base-TX ports and one gigabit Combo port (10/100/1000Base-T or 100/1000Base-X)

Forwarding performance

5.4 Mpps

2.7 Mpps

Port switching capacity

7.2 Gbit/s

3.6 Gbit/s

Backplane switching capacity

32 Gbit/s

32 Gbit/s

Power supplies

AC:
Rated voltage: 100 V to 240 V, 50/60 Hz
Maximum voltage: 90 V to 264 V, 50/60 Hz

supports two pluggable AC power supplies and PoE supplies

Power consumption

14.5 W

154 W

Available PoE Power

No

PoE power = 124 W

Dimensions: width x depth x height

442 mm x 220 mm x 43.6 mm

320 mm x 220 mm x 43.6 mm

Weight

2.4 kg

2.5 kg


Get more information


Do you have any question about the LS-S2318TP-SI-AC (02351373)?

Contact us now via [email protected].

Specific Data Sheet:


LS-S2318TP-SI-AC Specifications

Port

sixteen 10/100Base-TX ports and two gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X).

Forwarding performance

5.4 Mpps

Port switching capacity

7.2 Gbit/s

Backplane switching capacity

32 Gbit/s

MAC address table

Supports 8 K MAC address entries. Supports manual addition and deletion of a MAC address table. Supports configuration of MAC address aging time. Supports disabling of MAC address learning based on port or aggregation group. Supports limit on the number of MAC addresses to be learned on a port. Supports blackhole MAC addresses.

VLAN features

Supports IEEE 802.1Q (VLAN) and 4096 VLANs.
Supports port-based VLAN.

QoS

Supports port rate limit and traffic rate limit.
Supports four queues with different priorities on each port.
Supports mapping of packets to different queues based on 802.1p.
Supports multiple algorithms including SP, WRR, and SP+WRR.

IPv6 features

Supports IPv6 host functions.
Supports static route configuration.

Multicast

Supports IGMP v1/v2/v3 snooping.
Supports multicast load sharing among bundled ports.
Supports port-based multicast rate limit and traffic statistics

Port mirroring

Supports 1:1 or N:1 port mirroring.
Supports packet forwarding on an observing port.

Security

Supports port isolation.
Supports suppression of multicast, broadcast, and unknown single-cast packets. Supports CPU protection.

Surge protection

Each port has a surge protection capability of 7 kV. Each port has a surge protection capability of 15 kV after an extra surge protection device is added.

Management

Supports iStack.
Supports automatic configuration.
Supports CLI configuration.
Supports remote configuration and maintenance by using Telnet.
Supports SNMP v1/v2/v3. Supports RMON.
Supports HGMP v2. Supports SSH v2.
Supports Web management.
Supports GVRP.

Operating environment

Operating temperature: 0°C to 50°C (long term); –5°C to 55°C (short term); relative humidity: 10% to 90% (non-condensing)

Power supply

AC: Rated voltage: 100 V to 240 V, 50/60 Hz Maximum voltage: 90 V to 264 V, 50/60 Hz

Dimensions: width x depth x height

442 mm x 220 mm x 43.6 mm

Weight

< 2.4 kg

Power consumption

< 14.5 W
