Model

CE6880-24S4Q2CQ-EI

Part Number

02350SRC

Description

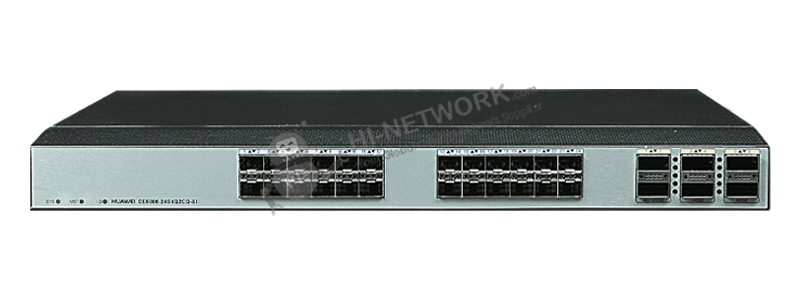

CE6880-24S4Q2CQ-EI Switch (24-Port 10GE SFP+, 4-Port 40GE QSFP+, 2-Port 100GE QSFP28, Without Fan and Power Module)

Dimensions (W x D x H)

442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)

Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported)

8.5 kg (18.74 lb)

Operating temperature

0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Relative humidity

5% RH to 95% RH, noncondensing

Altitude

< 5000 m (16404 ft.)

Noise (sound pressure, 27°C)

Back-to-front airflow: < 52 dBA

Front-to-back airflow: < 52 dBA

Power source type

AC/DC

AC power input

Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz

Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz

DC power input

Rated voltage range: -48 V DC to -60 V DC

Maximum voltage range: -38.4 V DC to -72 V DC

High-voltage DC power input

Not supported

Rated input current

350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)

600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)

Maximum power consumption

224 W

Typical power consumption

120 W (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 6 ports, double power modules)

Maximum heat dissipation

765 BTU/hr

Typical heat dissipation

409 BTU/hr (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 6 ports, double power modules)

Power module

AC: 6 kV in common mode and 6 kV in differential mode

DC: 4 kV in common mode and 2 kV in differential mode

Heat dissipation mode

Air cooling

Airflow

Front-to-back or back-to-front, depending on the fan modules and power modules

Power module backup

1+1 backup

Fan module backup

1+1 backup not supported

NOTE:

A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.

Hot swap

Supported by all power modules and fan modules

Mean time between failures (MTBF)

61.41 years

Mean time to repair (MTTR)

1.78 hours

Availability

0.99999668259

Processor

1.5 GHz, eight-core.

DRAM Memory

2 GB

NOR Flash

32 MB

NAND Flash

1 GB

Service port supporting the stack function

10GE optical ports, 40GE optical ports, and 100GE optical ports

Hot swap

Supported by all power modules and fan modules

Mean time between failures (MTBF)

61.41 years

Mean time to repair (MTTR)

1.78 hours

Availability

0.99999668259

Processor

1.5 GHz, eight-core.

DRAM Memory

2 GB

NOR Flash

32 MB

NAND Flash

1 GB

Service port supporting the stack function

10GE optical ports, 40GE optical ports, and 100GE optical ports

Certification

Safety standards compliance

EMC standards compliance

Environmental standards compliance
