Model

CE6865-48S8CQ-EI

Part Number

02351RFC

Description

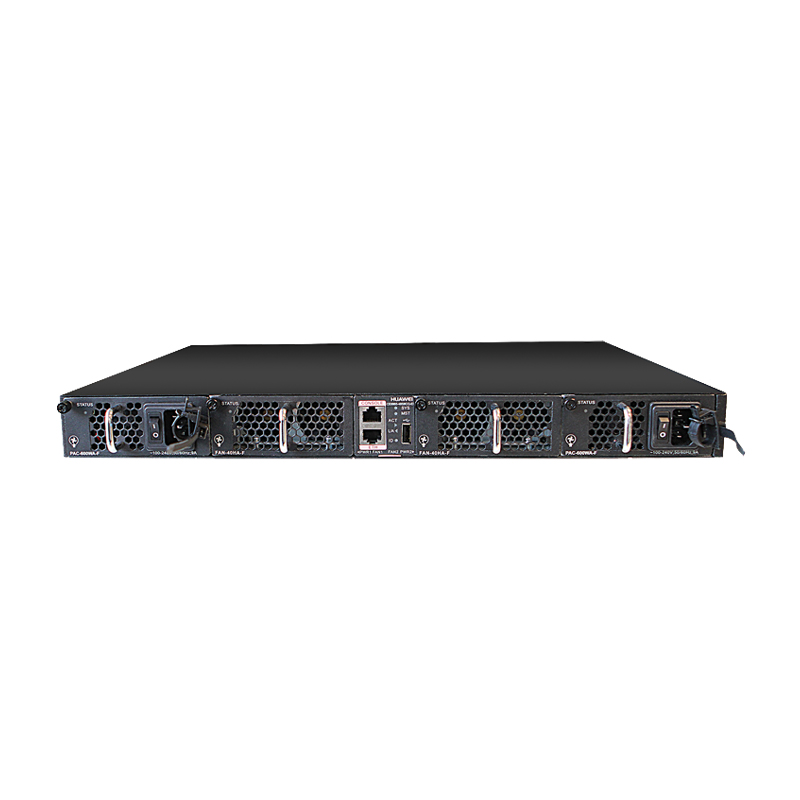

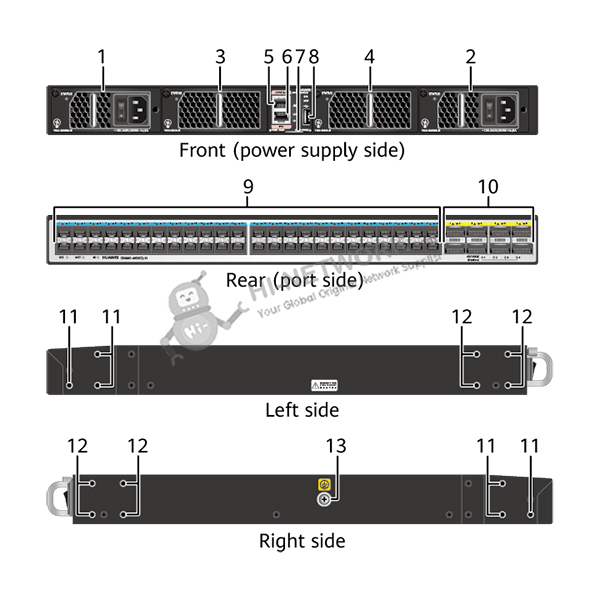

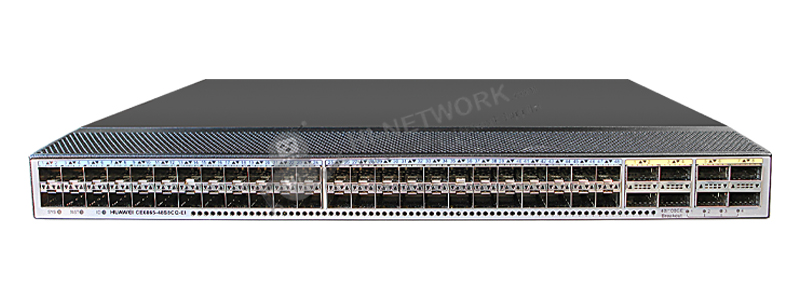

CE6865-48S8CQ-EI Switch (48-Port 25GE SFP28, 8*100GE QSFP28, Without Fan and Power Module)

Dimensions without packaging (H x W x D) [mm (in.)]

43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.)

Weight without packaging [kg (lb)]

6.2 kg (13.67 lb)

Weight without packaging (full configuration) [kg (lb)]

8.8 kg (19.40 lb) (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported)

Chassis height [U]

1

Installation Type

Cabinet Installation

Switching capacity

To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.

CPU

8-core, 1.5 GHz

Memory

DRAM: 4 GB

NOR Flash

32MB

NAND Flash

2GB

USB

Supported

Power supply mode

DC pluggable, AC pluggable

Console port

RJ45

Downlink Service interface

48*25GE SFP28

Note:

1. A 25GE port works at 25 Gbit/s by default and cannot work at 1 Gbit/s or 10 Gbit/s through auto-sensing, but can be configured to work at 10 Gbit/s or 1 Gbit/s through commands. When a 25GE port is configured to work at 10 Gbit/s or 1 Gbit/s, the rate of the other three ports in the same group also needs to be switched. The rate of a single port cannot be switched independently.

2. 10GE LRM/80 km linear optical modules are not supported.

3. The 1000BASE-X auto-negotiation function is not supported. To connect the two interfaces at both ends of a link, disable the auto-negotiation function of the peer interface. After the connection, in some port failure scenarios, the interface on one end may be Up and the interface on the other end may be Down.

Uplink Service interface

8*40GE/100GE QSFP28

Service port supporting the stack function

25GE and 100GE optical ports

RTC

Supported

Typical power consumption [W]

259 W (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 8 ports, double power modules)

Typical heat dissipation [BTU/hour]

884 BTU/hour (100% traffic load, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 8 ports, dual power modules)

Static power consumption [W]

182 W

Static heat dissipation [BTU/hour]

621 BTU/hour

Maximum power consumption [W]

420 W

Maximum heat dissipation [BTU/hour]

1433 BTU/hour

Number of power modules

2

Redundant power supply

1+1 backup

Rated input voltage [V]

350 W DC power module: –48 V DC to–60 V DC

600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC

600 W DC power module:–48 V DC to–60 V DC

Input voltage range [V]

350 W DC power module: -38.4 V DC to -72 V DC

600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 240 V DC

600 W DC power module:-38.4 V DC to -72 V DC

Maximum input current [A]

350 W DC power module: 11 A

600 W AC power module: 100 V AC to 240 V AC, 9 A

600 W DC power module: –48 V DC to –60 V DC, 20 A

Rated output power [W]

- 350 W DC power module: 350 W

- 600 W AC power module: 600 W

- 600 W DC power module: 600 W

Maximum output power [W]

- 350 W DC power module: 350 W

- 600 W AC power module: 600 W

- 600 W DC power module: 600 W

Certification

- Compliance with safety standards

- Compliance with EMC standards

- Compliance with environment and environmental protection standards

Power supply surge protection [kV]

AC: 6 kV in common mode and 6 kV in differential mode

DC: 2 kV in common mode and 1 kV in differential mode

Types of fans

Pluggable

Number of fans

4

Redundant fans

1+1 backup not supported

Heat dissipation mode

Air cooling

Airflow direction

Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules

Availability

0.999997178

MTBF [year]

38.85 years

MTTR [hour]

1.48 hours

Noise at normal temperature (27°C, sound pressure) [dB(A)]

Back-to-front airflow: < 65 dB(A)

Front-to-back airflow: < 65 dB(A)

Noise at high temperature (40°C, sound pressure) [dB(A)]

Front-to-back airflow: 69 dBA in average (maximum: 73 dBA)

Back-to-front airflow: 67 dBA in average (maximum: 72 dBA)

Long-term operating altitude [m (ft.)]

< 5000 m (16404 ft.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, noncondensing

Long-term operating temperature [°C (°F)]

0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage altitude [m (ft.)]

< 5000 m (16404 ft.)

Storage relative humidity [RH]

5% RH to 95% RH, noncondensing

Storage temperature [°C (°F)]

-40°C to +70°C (-40°F to +158°F)
