Detail: | 24-Port GE RJ45, 4-Port 10G SFP+, 2-Port 40G QSFP+, Without Fan Box and Power Module |
Model: | CE5855-24T4S2Q-EI (02350GTX) |
Condition: | Factory Sealed New |
Related: | |
Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
17.5
|
2-7 Days
US$
|
Payment: |
More
|
CloudEngine 5800 series switches deliver high gigabit access, enabling enterprises and carriers to build cloud-oriented data center networks. Featuring 40 GE uplink ports and flexible airflow capabilities, the switches are capable of forming a 9-member stack system and are well-suited for either the aggregation or the access layer. Coupled with CloudEngine 16800 or 12800 series switches, CloudEngine 5800 enables enterprises to build networks that are scalable, simplified, open — and secure.
Model | CE5855-24T4S2Q-EI |
Part Number | 02350GTX |
Software Version | V100R005C10 and later |
Fixed GE interfaces | 24*10/100/1000BASE-T |
Fixed 10GE interfaces | 4*10GE SFP+ |
Fixed 40GE interfaces | 2*40GE QSFP+ |
Fixed 100GE interfaces | None |
Base-T Ports | 24 |
SFP+ Ports | 4 |
QSFP+ Ports | 2 |
Switching Capacity | 288 Gbit/s |
Forwarding Rate | 215 Mpps |
Power module type | Pluggable AC or DC power module, 1+1 backup supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
Maximum power consumption | 75W |
Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules used in the chassis |
Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
Weight (fully loaded) | 8.1 kg (17.8 lb) |

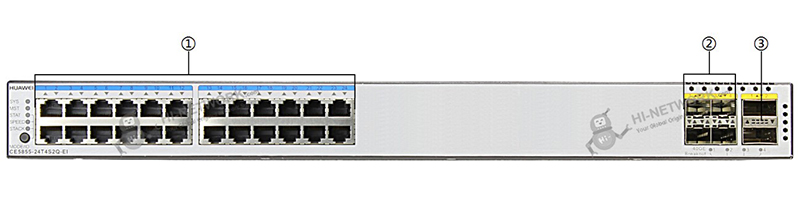

Note:
(1) | Twenty-four 10/100/1000BASE-T Ethernet electrical ports |
(2) | Four 10GE SFP+ Ethernet optical ports |
(3) | Two 40GE QSFP+ Ethernet optical ports |

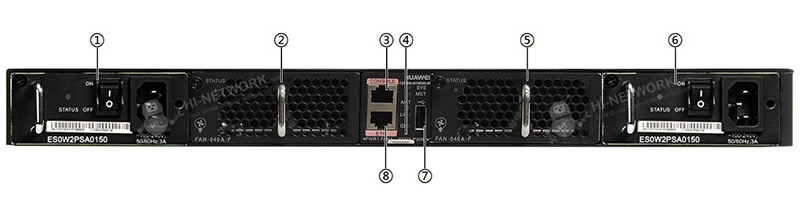

Note:
(1) | Power supply slot 1 | (5) | Fan slot 2 |
(2) | Fan slot 1 | (6) | Power supply slot 2 |
(3) | Console port | (7) | USB port |
(4) | Barcode label | (8) | ETH management port (RJ45) |
Model | Description |
GE-SFP Optical Transceiver | |
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) | |
10G-SFP+ Optical Transceiver | |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) | |
Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) | |
GE Copper Transceiver | |
Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
Model | CE5855-24T4S2Q-EI | |
Software Version | V100R005C10 and later | V100R005C10 and later |
Fixed GE interfaces | 24*10/100/1000BASE-T | 48*10/100/1000BASE-T |
Fixed 10GE interfaces | 4*10GE SFP+ | 4*10GE SFP+ |
Fixed 40GE interfaces | 2*40GE QSFP+ | 2*40GE QSFP+ |
Fixed 100GE interfaces | None | None |
Base-T Ports | 24 | 48 |
SFP+ Ports | 4 | 4 |
QSFP+ Ports | 2 | 2 |
Switching Capacity | 288 Gbit/s | 336 Gbit/s |
Forwarding Rate | 215 Mpps | 252 Mpps |
Maximum power consumption | 75W | 103W |
Do you have any questions about the CE5855-24T4S2Q-EI (02350GTX)?
Contact us now via [email protected].
CE5855-24T4S2Q-EI Specification | |
Base-T Ports | 24 |
SFP+ Ports | 4 |
QSFP+ Ports | 2 |
Switching Capacity | 288 Gbit/s |
Forwarding Rates | 215 Mpps |
Airflow Design | Front-to-back or back-to-front |
Device Virtualization | iStack |
Network Virtualization | M-LAG |
VM Awareness | Agile Controller |
SDN | Open Programmability System (OPS) |
Traffic Analysis | NetStream |
VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
ACL | ingress: 4.5k |
MAC Address Table | maximum: 64k |
ARP (maximum) | 54k |
IPv4 FIB (maximum) | 32k |
IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
IPv6 FIB (maximum) | - |
IPv6 | IPv6 Neighbor Discovery (ND) (not supported by CE5855) |
Multicast FIB (maximum) | 2k |
Multicast | IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
Reliability | LACP |
QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
Configuration and Maintenance | Console, Telnet, and SSH terminals |
Security and Management | 802.1x authentication |
Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
Weight (fully loaded) | 8.1 kg (17.8 lb) |
Environmental Parameters | Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) |
Operating Voltage | AC: 90V to 264V |
Maximum Power Consumption | 75W |
