Huawei SNMP-Based Switch S1700-52GFR-4P-AC (98010459)

The Huawei S1700-52GFR-4P-AC is web/SNMP-based switch with 52 ports including 4 Gig SFP. SNMP-based S1700 models allow the use of a SNMP-based NMS for centralized configuration and management. It is green, energy-saving and belongs to the Ethernet access switch. SNMP-managed switch supports MSTP examples up to eight, making the networks smooth. With rich safety features, it can prevent attacks from hackers and virus in order to build secure, reliable, high-performance and multi-service networks for small- and medium-size enterprises.

Quick Specification:

Model	S1700-52GFR-4P-AC
Part Number	98010459
Type	Web/ SNMP-based Switch
Downlink Ports	48 x 10/100/1000 ports
Uplink Ports	4 Gig SFP
MAC Address Table Size	8K MAC
Forwarding Performance	78 Mpps
Switching Capacity	104 Gbit/s
Dimensions (W x D x H)	442 mm x 220 mm x 43.6 mm
Package Weight	4.03kg
EEE	Supported

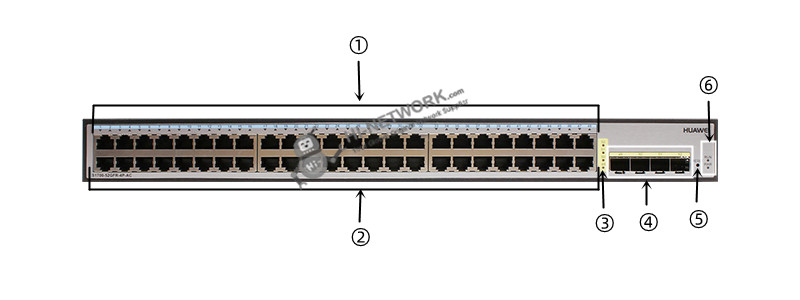

The Front Panel:

s1700-52gfr-4p-ac-front-datasheet

①	Ethernet electrical port indicators
②	10/100/1000BASE-T port
③	1000BASE-X port indicator
④	1000BASE-X port
⑤	Reset button
⑥	Power/System status indicator

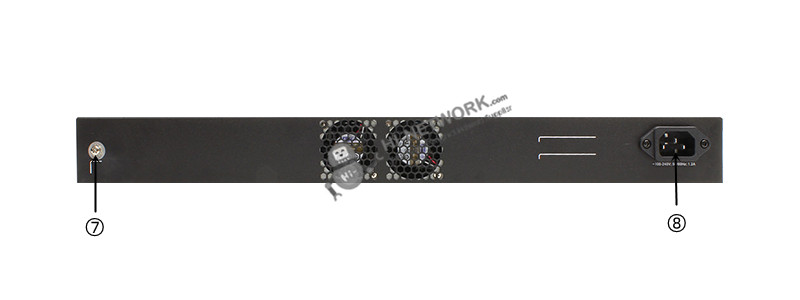

The Back Panel:

s1700-52gfr-4p-ac-back-datasheet

⑦	Ground screw
⑧	AC power socket

The Accessories for S1700-52GFR-4P-AC

Optical Modules:

Port	Optical Module	Description
1000BASE-X Ethernet port	eSFP-GE-SX-MM850	Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC)
	SFP-GE-LX-SM1310	Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)
	S-SFP-GE-LH40-SM1310	Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)
	S-SFP-GE-LH40-SM1550	Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)

Compare To Similar Items:

Model	S1700-52GFR-4P-AC	S1700-52FR-2T2P-AC	S1700-52R-2T2P-AC
Type	Web/SNMP-based Switch	Web/SNMP-based Switch	Unmanaged Switch
Down link Ports	48 Ethernet 10/100/1000 ports	48 Ethernet 10/100 ports	48 Ethernet 10/100 ports
Uplink Ports	4 Gig SFP	2 Ethernet 10/100/1,000 ports and 2 Gig SFP	2 Ethernet 10/100/1,000 ports and 2 Gig SFP
MAC Address Table	8K MAC	8K MAC	8K MAC
Dimensions (W x D x H)	442 mm x 220 mm x 43.6 mm	442 mm x 220 mm x 43.6 mm	442 mm x 220 mm x 43.6 mm
Power consumption	<55W	< 35W	<22.6W

Get More Information

Do you have any question about the S1700-52GFR-4P-AC 98010459?

Specific Data Sheet:

Part Number	98010459
Model	S17300-52GFR-4P-AC
Type	Huawei S1700 Web/SNMP-based Switch
Downlink Ports	48 Ethernet 10/100/1,000 ports
Uplink Ports	4 Gig SFP
MAC Address Table	8K MAC
Dimensions in mm (W x D x H)	442 mm x 220 mm x 43.6 mm
Input Voltage	100V to 240V AC, 50 Hz/60 Hz
EEE	Supported
Power Consumption	< 55W
Operating Temperature	0°C to 45°C
Humidity (non-condensing)	10% to 90%
Heat Dissipation	Heat dissipation using fans supporting intelligent speed adjustment
Security features	Hardware ACL Packet filtering based on MAC addresses MAC address authentication Port-based 802.1x authentication RADIUS authentication Portal authentication Port isolation Storm suppression Attack defense, which prevents broadcast traffic, ARP attacks, ICMP attacks, TCP attacks, worm viruses, and DoS attacks DHCP snooping
VLANs	4K VLANs Access port Trunk port Hybrid port Management VLAN Voice VLAN
QoS	PQ and WRR Eight queues on each port Queue scheduling based on 802.1p or DSCP priorities
STP	STP (IEEE 802.1d) RSTP (IEEE 802.1w) MSTP (IEEE 802.1s)
Multicast	IGMP snooping
Routing Features	IPv4 and IPv6 static routing RIP, RIPng, OSPF (S1720-E series)
Link Aggregation	12 Link Aggregation Groups (LAGs) with a maximum of eight ports in each LAG 64 Link Aggregation Groups (S1720 series) 120 Link Aggregation Groups (S1720-E series) Static LACP
Port Mirroring	Port-based bi-directional flow mirroring
Broadcast Storm Suppression	Broadcast storm suppression based on the interface rate Alarm sending when the traffic rate reaches the upper limit
Device Management	SNMP Web system network management (HTTPS) DHCP client User password protection One-key restoration CLI configuration (S1720/S1720-E series) Console port (S1720/S1720-E series)
Device Maintenance	Remote Network Monitoring (RMON) System log Ping and traceroute Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP)
