Huawei SmartAX MA5801-GP16 ETSI

USD

4.9 4.9/5.0 Reviews Q/A 3 Sold/Mon
Detail:	Huawei MA5801-GP16 ETSI OLT terminal with 16 C+ SFP modules, dual AC power supply
Model:	SmartAX MA5801-GP16 ETSI
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 4.6	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

Huawei SmartAX MA5801-GP16 ETSI is a compact and low-density box-shaped OLT providing multiple fiber to the home (FTTH) solutions to meet the requirements of economical and efficient network construction.

Quick Specification

Model	Huawei SmartAX MA5801-GP16 ETSI
Maximum fully-loaded weight (AC)	4.6 kg
Dimensions (H x W x D)	Without mounting ears: 442 x 220 x 43.6
	With IEC-standard mounting ears: 482.6 x 220 x 43.6
	With ETSI-standard mounting ears: 535 x 220 x 43.6
Power Supply Mode	l DC power supply (dual backup)
Power Supply Mode	l AC power supply (dual backup)
Working Voltage Range	l DC power supply: –38.4 V to –72 V
Working Voltage Range	l AC power supply: 100–240 V
Rated Voltage	l DC power supply: –48 V/–60 V
Rated Voltage	l AC power supply: 110 V/220 V
Maximum Input Current	l DC power supply: 6 A
Maximum Input Current	l AC power supply: 2.5 A

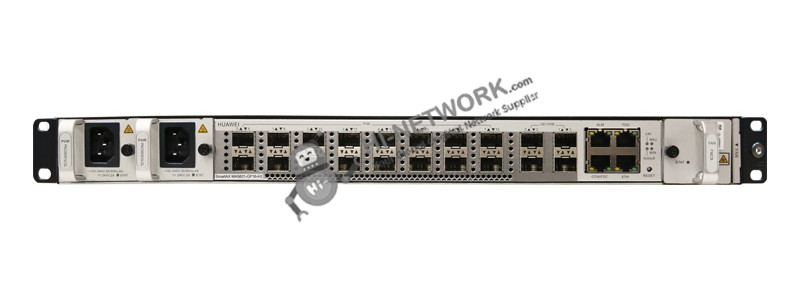

Appearance:

ma5801-gp16-datasheet

Features Huawei SmartAX MA5801-GP16 ETSI provides:

★ Fixed-Mobile Convergence, Reusing Cabinet Space at Base Stations
When constructing FTTH networks, mobile operators can fully utilize their already deployed backhaul network resources and cabinet space to deploy the product in mobile cabinets and route drop cables at a short distance. In this way, nearby households can be covered rapidly.
★ Universal Coverage, Enabling Rapid Deployment in Low-density Areas
Rural areas have low population densities. In these areas, the MA5801-GP16 can be used together with various optical modules and the one-stop outdoor site solution to implement rapid FTTH network coverage over long distances. In areas where no feeder fibers are routed, the product can be used together with the microwave backhaul solution to implement highly reliable FTTH network access over long distances.
★ Private Line Access in Enterprise Campuses, Supporting Flexible Deployment and Management
Operators can use the product to construct, operate, and maintain optical networks on enterprise campuses. Alternatively, operators can lease optical networks to campuses or enterprises to provide all-optical access services for enterprise campuses.

Get more information

Do you have any question about the SmartAX MA5801-GP16 ETSI?

Specific Data Sheet:

Model	MA5801-GP16 ETSI
Dimensions (H x W x D)	Excluding mounting ears: 442 x 220 x 43.6
	Including IEC mounting ears: 482.6 x 220 x 43.6
	Including ETSI mounting ears: 535 x 220 x 43.6
Power Supply Mode	l DC power supply (dual backup)
Power Supply Mode	l AC power supply (dual backup)
Working Voltage Range	l DC power supply: –38.4 V to –72 V
Working Voltage Range	l AC power supply: 100–240 V
Rated Voltage	l DC power supply: –48 V/–60 V
Rated Voltage	l AC power supply: 110 V/220 V
Maximum Input Current	l DC power supply: 6 A
Maximum Input Current	l AC power supply: 2.5 A
System switching capacity	140 Gbit/s
MAC addresses	32768
Access ONT	1024
IPv4 routing table	8192
IPv6 routing table	4096
ARP table	16384
Maximum fully-loaded weight (AC)	4.6 kg
Ambient temperature	–40°C to +65°C
Ambient humidity	5%–95% RH
Atmospheric pressure	70–106 kPa
Altitude	< 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
Bit error rate (BER) in full load	A BER smaller than 10 e-7 for a port that transmits data in full load
10GE/GE upstream ports	4
Service ports	16 GPON
