Huawei SmartAX MA5800-X15 OLT, 2x MPLA, 2x PILA 2x2 pcs 10G Uplink module

USD

4.8 4.8/5.0 Reviews Q/A 2 Sold/Mon
Detail:	MA5800-X15 (MPLA + PILA) and Main Control OLT from Huawei
Model:	SmartAX MA5800-X15
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 10	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

Huawei SmartAX MA5800 X15 OLT is NG OLT, 19inch, with 11U height 15 service slots, 200G throughput per slot, supporting GPON, 10G PON, 40G/100G PON ready; H901BPIB subrack equipped with 2xH901MPLA, 2xH901PILA

ma5800-x15-sheet

ma5800-x15-sheet2

Slot Type	Slot No.	Total
Control board (SCU) slot	8,9	2
Power board slot	18,19	1
Universal interface board (GPIO) slot	0	1
Service board slot	1~7,10~17	15

Quick Specification

Model	Huawei SmartAX MA5800-X15
Maximum weight(including mounting brackets)	35 kg
Dimensions (H x W x D)	Without hanging size: 442 0mmx287mmx486mm
	Excluding mounting brackets: 493x287x 486
	Including mounting brackets: 535x287x486
Working voltage range	-38.4V DC to -72V DC Dual-power supply protection
MPLS PWE3	MPLS LDP, MPLS RSVP-te, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
IPv6	IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
Multicast	IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD proxy/snooping, and VLAN-based IPTV multicast

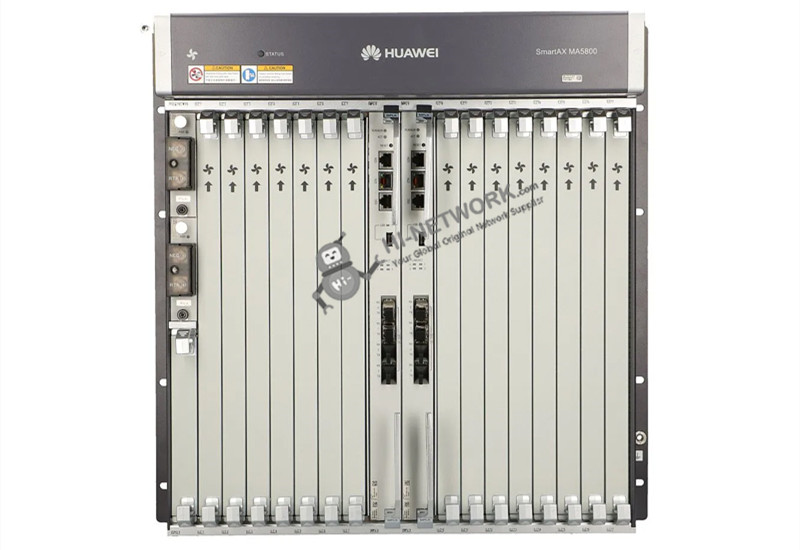

Appearance:

ma5800-x15-datasheet

Features Huawei SmartAX MA5800-X15 provides:

★   Huawei SmartAX MA5800 X15 OLT is widely recognized by operators as the FTT x network has advantages in full-service bearer, bandwidth upgrade and network maintenance. The global mainstream operators have begun to use FTTx networks for high-value enterprise customer access and mobile.
★   Huawei SmartAX MA5800 X15 OLT is designed to adapt to the trend of “flat capacity and less office” in the flattening of the network and the CO room. The new generation of OLTs needs to have the capability of access aggregation and integration to achieve “one fibre full service, unified-access layer”.
★   Huawei SmartAX MA5800 X15 OLT is a unified aggregation platform for the full-service fibre access network. The new-generation OLT needs to have high-reliability networking capabilities and support three high-reliability designs on the device side, line side, and network side. At the equipment layer, all components of the OLT are designed with dual backup redundancy to prevent single point of failure.

The Accessories For SmartAX MA5800-X15:

Boards and Fan Tray:

Model name	Description
H901MPLB	4 GE/10GE upstream transmission ports and supports load sharing. By default, MA5800 connects to upstream network through the control board
H901MPLA	4 GE/10GE upstream transmission ports and supports load sharing. By default, MA5800 connects to upstream network through the control board
H901CKUA	stratum-3 clock functions by working with MPLB and MPLA
H901NXED	Enhanced 8-port 10GE upastream interface board, supporting 10GE/GE Ethernet upstream transmission. NXED is used when upstream ports currently provided in MA5800 are not enough.
H901CIUA	synchronous time/clock signal input&output interfaces, alarm parameter/Boolean value input&output interface. RS485 serial ports, and provides transparent transmission Ethernet ports.
H901GPHF	16 GPON ports for access services
H901GPSF	16 GPON ports for home access services
H901XGHD	8 asymmetric 10G GPON ports for access services.
H901TWED	8 symmetric 10G GPON ports for access services.
H901EDSH	32-channel E1 upstream board, supporting native TDM mode.
H901OGHK	48-port aggregated GE/FE optical interface board, supporting up to 48 channels of GE/FE
H901OXHD	8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation.
H901PILA	-48V DC input
H901FMLA	Supplier power to fans; controls and monitors the fans
H901FMMA	Supplier power to fans; controls and moniotes the fans

Get more information

Do you have any question about the SmartAX MA5800-X15?

Specific Data Sheet:

Model	Huawei SmartAX MA5800-X15
Dimensions (W x D x H)	442 mm x 287 mm x 486 mm
Switching Capacity of the System	7 Tbit/s
Maximum Number of Ports in a Subrack	240 x GPON/EPON
	720 x GE/FE
	120 x 10G GPON/10G EPON
	120 x 10G GE
	480 x E1
Ambient Temperature	-40°C to 65°C*
Ambient Temperature	*: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent
Working Voltage Range	-38.4V DC to -72V DC
Layer 2 Features	VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
Layer 3 Features	Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
MPLS & PWE3	MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
IPv6	IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
Multicast	IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast
QoS	Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
System Reliability	GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control
