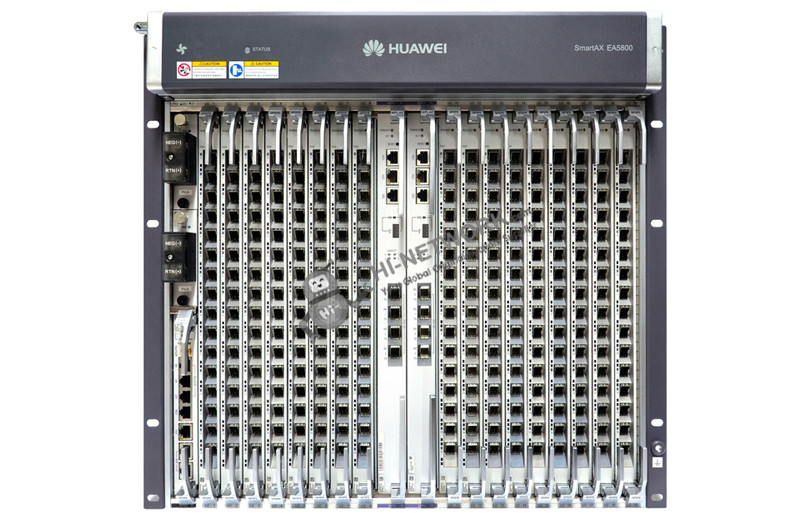

Supported Cabinets

N63E-22

Board Configuration

Control board slots: 9, 10
Service board or upstream interface board slots: 1 to 8, 11 to 19
Universal interface board slot: 0
Power board slots: 20, 21

Dimensions(W x D x H)

11U high and 21 inches wide
Excluding mounting brackets: 493 mm x 287 mm x 486 mm
Including mounting brackets: 535 mm x 287 mm x 486 mm

Maximum Input Current

60A

Power Supply Modes

DC power support (dual for backup)

Working Voltage Range

-38.4V to -72V DC

Rated voltage

-48V/-60V

Ambient Temperature

 -40°C to 65°C*. The EA5800 can start up at temperatures as low as -25°C.
Note: The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack.

Ambient Humidity

5% RH to 95% RH

Atmospheric Pressure

70 kPa to 106 kPa

Altitude

4,000m. The air density varies with altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the EA5800 varies with altitude.

Switching Capacity of the Control Board (load sharing mode)

3.6 Tbit/s

Maximum Bandwidth per Service Slot (load sharing mode)

100 Gbit/s

System Layer 2 Packet Forwarding Rate (load sharing mode)

5,298 Mpps

Maximum Number of Concurrent 4K Video Users

16,000

Maximum Number of MAC Addresses

262,143

Maximum Number of ARP/Routing Entries

131,072

Switching/Forwarding Delay

Short forwarding delay: The 100 Mbit/s Ethernet port sends 64-byte Ethernet packets at a delay shorter than 20 μs.

Bit Error Rate (BER) in full load

A BER smaller than 10e-7 for a port that transmits data in full load.

System Reliability Specifications

System availability for typical configurations: > 99.999%
Mean-Time-Between-Failures (MTBF): About 45 years.
Note: Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the EA5800 is only for reference. The average repair time for Field Replaceable Units (FRUs) is about 2 hours. The preceding values are only for reference. For details, please contact the relevant Huawei engineers.

GPON Ports/ XG(S)-PON Ports

272

GE/FE Ports

816

10 GE Ports

408
