Part Number

02353NRD/02353NRD-002/02353NRD-003

Memory

4 GB

Flash memory

2 GB in total. To view the available flash memory size, run the display version command.

PoE

Not supported

Weight without packaging [kg(lb)]

3.4 kg (7.5 lb)

Weight with packaging [kg(lb)]

4.65 kg (10.25 lb)

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 231.0 mm (1.72 in. x 17.40 in. x 9.09 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

115 mm × 545 mm × 360 mm (4.53 in. x 21.46 in. x 14.17 in.)

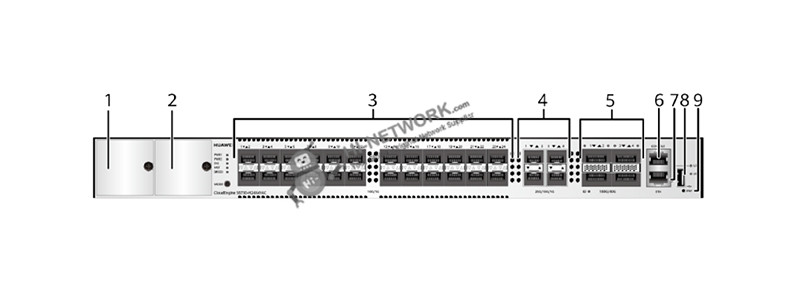

②

Power module slot 2

③

Twenty-four 10GE SFP+ ports

④

Four 1GE/10GE/25GE SFP28 optical ports

⑤

Four 40GE/100GE QSFP28 optical ports

⑥

One console port

⑦

One ETH management port

⑧

One USB port

⑨

One PNP button
