Huawei Router AR207 (02353841)

385
/5.0
Q/A
0 sold/Mon
Detail: AR207,ADSL2+ ANNEX A/M WAN,8FastEthernet LAN,1USB, AR0M0007BA00
Model: AR207 (02353841)
Condition: Factory Sealed New
Related:
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
4.0
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei Router AR207 (02353841)


Huawei AR G3 AR150 Series - AR157 fixed interface access enterprise router AR0M1570BA00 provides routing and switching functionality for small business or branch offices.


Quick Specification:

Model

AR207

Part Number

02353841

Memory

512 MB

Flash

512 MB

Micro SD card (default: sd1)

None

Hard disk

Not supported

LAN Ports

8 port(s) x RJ-45

WAN Ports

1 port(s) x

USB Ports

1 x USB

Weight(kg)

2.8

Dimensions (W x D x H)

4.45cm (W) x 30.0cm (D) x 22.0cm (H)

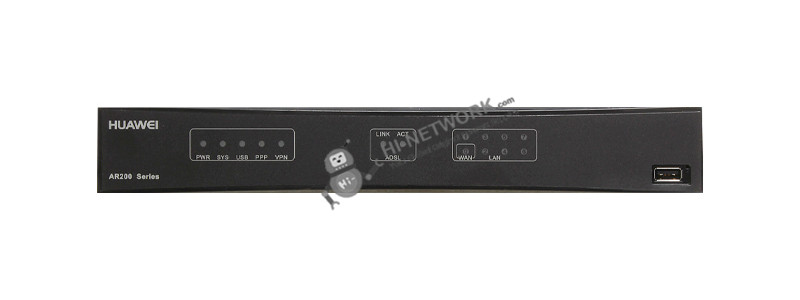

The Front Panel:

ar207-front-datasheet

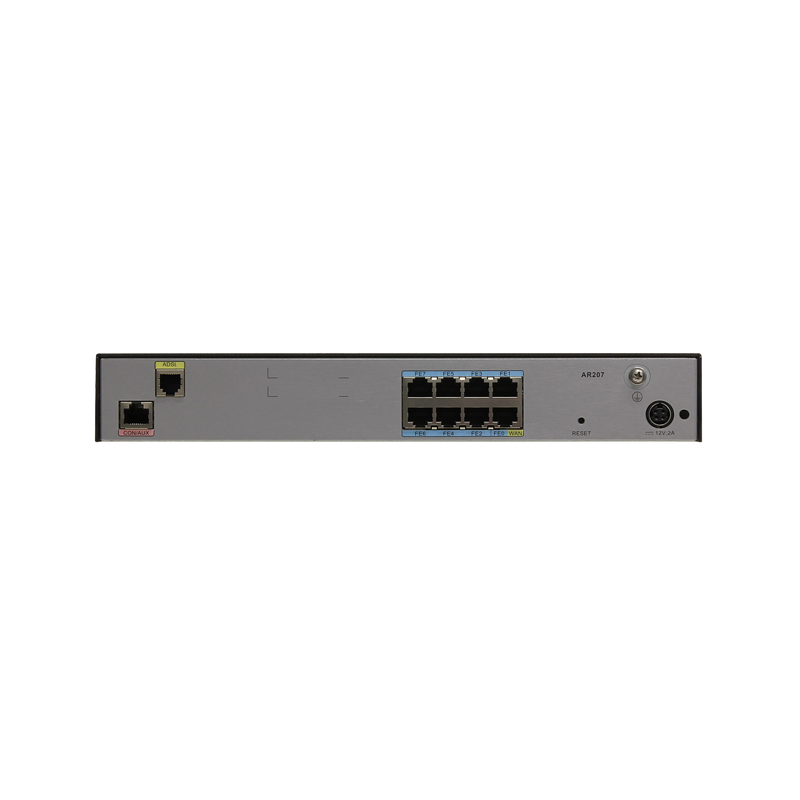

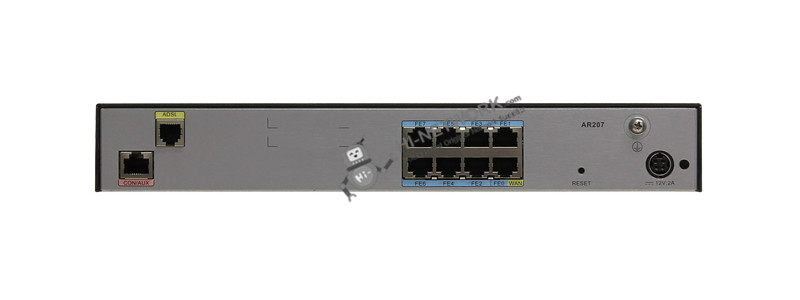

The Back Panel:

ar207-back-datasheet


Get More Information

Do you have any question about theAR207 02353841?

Contact us now via[email protected]


Specific Data Sheet:

Part Number

02353841

Model

AR207

First Supported Version

V200R002C00

Memory Size

512 MB

Flash Memory

512 MB

Basic feature

DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, Sub interface management

Voice

RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, SBC, (Only voice models support voice features)

WLAN(AP)

AP management, WLAN QoS, WLAN security, WLAN radio management, WLAN user management(Only WLAN models support WLAN AP features)

WLAN(AC)

AP management(AC discovery/AP access/AP management),CAPWAP,WLAN user management , WLAN radio management802.11a/b/g/n,WLAN QoSWMM), WLAN securityWEP/WPA/WPA2/Key management

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VL AN management, MAC address management, MSTP

IPv4 unicast routing

Routing policy, static route, RIP, OSPF, IS-IS, BGP

IPv6 unicast routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+

Multicast

IGMP version1/2/3, PIM SM, PIM DM, MSDP

MPLS

LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR

VPN

IPSec VPN, GRE VPN, DSVPN, L2TP VPN, Smart VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion

avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/

SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy),

Hierarchical QoS, WLAN QoS, FR QoS, Smart Application Control (SAC)

Security

ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, PKI.

Management and maintenance

Upgrade management, device management, web-based GUI, GTL, SNMP(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, site deployment using USB disk, CLI

Maximum power consumption(W)

36

Operating temperature

0°C to 45°C

Operating relative humidity

5% to 95%, noncondensing

Dimensions(mm)

44.5 (H) x 300 (W) x 220 (D)
