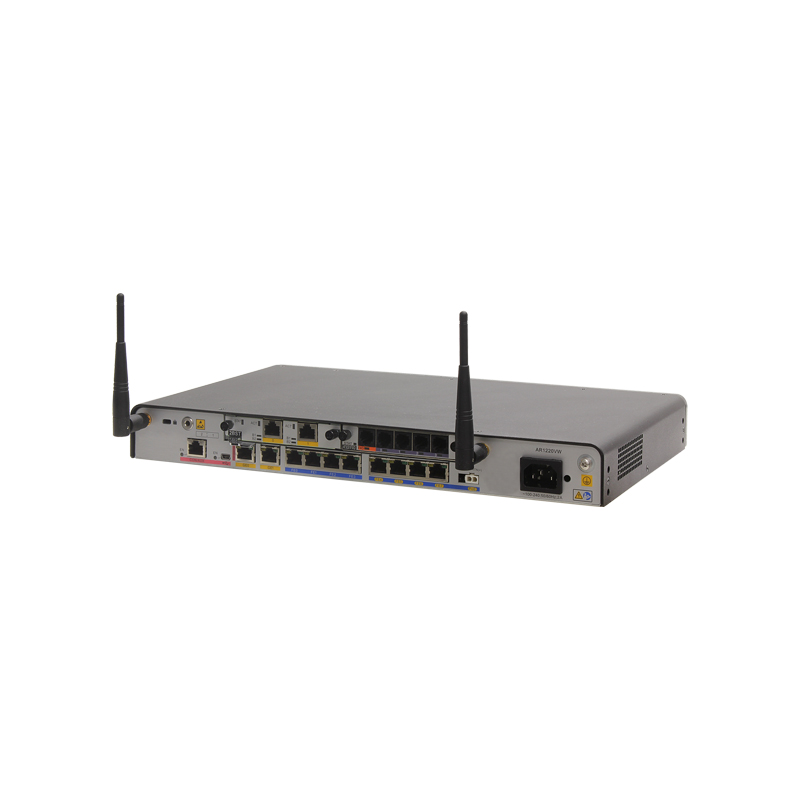

Huawei Router AR1220VW (02353528)

1017
4.7
4.7/5.0
Q/A
1 sold/Mon
Detail: 2GE WAN,8FE LAN,802.11b/g/n AP,2 USB,2 SIC,build-in 32-channel DSP
Model: AR1220VW (02353528)
Condition: Factory Sealed New
Related:
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
4.0
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei Router AR1220VW (02353528)


2GE WAN,8FE LAN,2 USB,2 SIC,build-in 32-channel DSP
Huawei AR1220VW is the small office or small and medium enterprises branch one router, providing both wired and wireless Internet access, access, PBX, integration of communication and security functions, widely deployed in small campus network export, small and medium enterprises headquarters or branch of the scene.


Quick Specification:

Model

AR1220VW

Part Number

02353528

Memory

512 MB

Flash

256 MB

Service interfaces (standard configuration)

WAN interfaces: two GE electrical interfaces

LAN interfaces: eight FE electrical interfaces and two Wi-Fi antenna interfaces

Extended slots

2xSIC

Weight

2.9 kg (6.39 lb)

Dimensions (W x D x H)

With no mounting bracket installed: 44.5 mm x 390.0 mm x 232.5 mm (1.75 in. x 15.35 in. x 9.15 in.)

With mounting brackets installed: 44.5 mm x 482.6 mm x 232.5 mm (1.75 in. x 19.00 in. x 9.15 in.)

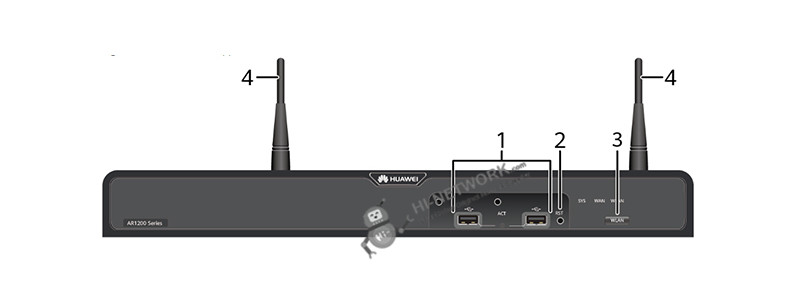

The Front Panel:

ar1220vw-front-datasheet



Two USB interfaces (host)



RST button



WLAN button



Two Wi-Fi antennas

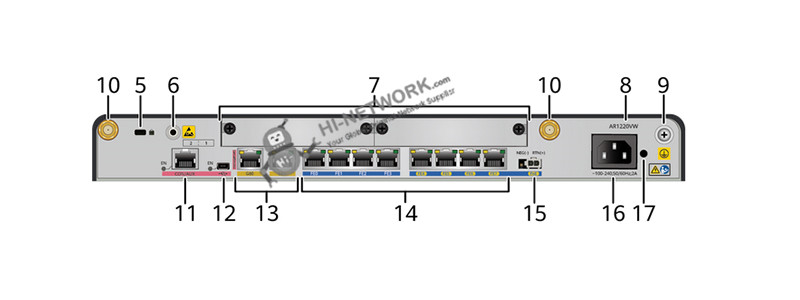

The Back Panel:

ar1220vw-back-datasheet



Security lock



ESD jack



Two SIC slots



Product model silkscreen



Ground point



Two Wi-Fi antenna interfaces

11

CON/AUX interface

12

Mini USB interface

13

WAN interfaces: two GE electrical interfaces

14

LAN interfaces: eight FE electrical interfaces

15

PoE power jack

16

AC power jack

17

Jack for power cable locking strap

The Accessories for AR1220VW
Modules and Cards:

Model

Description

Power Module

AR0MPSAP1000

100 W AC PoE power module

Ethernet LAN interface card

AR-4ES2G-S

4-Port 1000BASE-RJ45 L2 Ethernet Interface Card

AR-9ES2-W

8 Port 100M-RJ45 and 1 Port 1000M- RJ45 L2 Ethernet Interface Card

AR01WEG4SB

4-Port 1000BASE-SFP-L2 Ethernet Interface Card

AR0MWMF9TT00

8-Port 10/100BASE(RJ45) and 1-Port 10/100/1000BASE(RJ45)-L3 Ethernet Switch   Interface Card

Voice service card

AR-1VE1-S

1-Port VE1 Interface card

AR01SVB4XA

4-Port FXO Voice Interface Card

AR01WVADXA

16-Port FXS Voice Interface Card

WAN interface card

AR-1E3T3M-W

1-Port Channelized/Unchannelized E3/T3 WAN Interface Card

AR01WDFE8A

8-Port Fractional Channelized E1 WAN Interface Card

AR0MSDSA1A00

1-Port Sync/Async Serial Port Interface Card

xDSL interface card

AR01SLV1XA

1-Port VDSL2 over POTS WAN Interface Module

AR0MSLA1XA01

1-Port ADSL2+ ANNEX A/M WAN Interface Module

xPDN interface card

AR0MSOPP2A00

1-Port GPON/EPON Dual-mode Interface Card


Compare to Similar Items:

Model

AR1220VW

AR1220EVW

Fixed WAN Ports

2 x GE

2 x GE Combo

Fixed LAN Ports

8 x FE (can be configured as WAN   interfaces)

8 x GE (can be configured as WAN interfaces)

Slots

SIC slots: 2

WSIC slots (default/max): 0/1

Memory

512 MB

1 GB


Get More Information

Do you have any question about theAR1220VW 02353528?

Contact us now via[email protected]


Specific Data Sheet:

Part Number

02353528

Model

AR1220VW

First Supported Version

V200R001C01

Processor

Dual-core, 500 MHz

Memory

512 MB

Flash

256 MB

Micro SD card (default: sd1)

None

Hard disk

Not supported

Dimensions (H x W x D)

With no mounting bracket installed: 44.5 mm x 390.0 mm x 232.5 mm (1.75 in. x 15.35 in. x 9.15 in.)

With mounting brackets installed: 44.5 mm x 482.6 mm x 232.5 mm (1.75 in. x 19.00 in. x 9.15 in.)

Weight

2.9 kg (6.39 lb)

Rated input voltage range (AC)

100 V to 240 V, 50 Hz/60 Hz

Maximum input voltage range (AC)

90 V to 264 V, 47 Hz to 63 Hz

Maximum input current

2 A

Maximum output power

60 W

RPS power supply

Not supported

PoE power supply

Supported (interfaces FE4 to FE7)

Typical power consumption

37 W

Maximum power consumption

42 W

Fans

Built-in fans, not pluggable

Airflow (facing the front panel)

Left to right

Management interfaces

1 (RJ45)

CON/AUX interfaces

1 (RJ45)

USB 2.0 interfaces

2

Service interfaces (standard configuration)

WAN interfaces: two GE electrical interfaces

LAN interfaces: eight FE electrical interfaces and two Wi-Fi antenna interfaces

Extended slots

2xSIC

DSP DIMM slot

Supported

Operating temperature

0°C to 45°C (32°F to 113°F)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Operating relative humidity

5% to 95%, noncondensing

Operating altitude

< 5000 m (16404.2 ft.)
