Item

Specification

Model

AR101-S

Part Number

50010305

Description

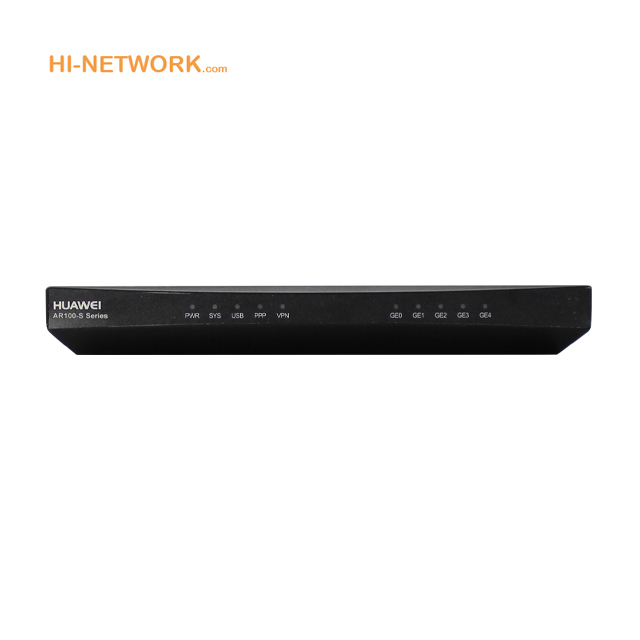

Huawei AR101-S with 1-port GE WAN, 4-ports GE LAN, 1 USB2.0, AC fixed power

System parameters

Processor

Dual-core, 900 MHz

Memory

256 MB

Flash

256 MB

Micro SD card (default)

None

Hard disk

Not supported

Dimensions and weight

Dimensions (H x W x D)

30 mm x 230 mm x 130 mm (1.18 in. x 9.06 in. x 5.12 in.)

Weight

0.6 kg (1.32 lb)

Power specifications

Rated input voltage (AC)

110 V to 220 V, 50 Hz/60 Hz

Maximum input voltage range (AC)

90 V to 270 V, 45 Hz to 65 Hz

Maximum output current

2 A

Maximum output power

24 W

RPS power supply

Not supported

PoE power supply

Not supported

Power consumption

Maximum power consumption

15 W

Heat dissipation

Fans

None

Airflow (facing the front panel)

None

Interface density

Management interfaces

1 (RJ45)

CON/AUX interfaces

1 (RJ45)

USB 2.0 interfaces

1

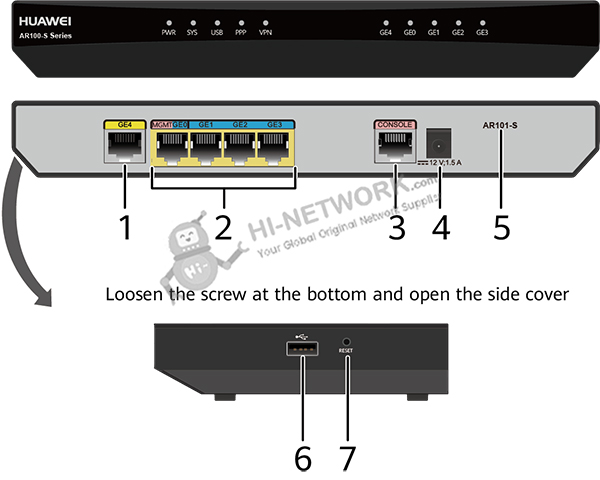

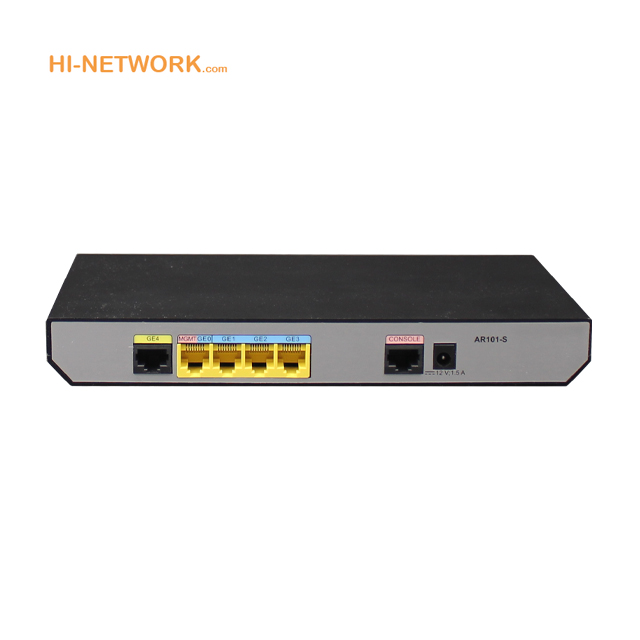

Service interfaces

WAN interface: one GE electrical interface

LAN interfaces: four GE electrical interfaces

Extended slots

Not supported

Environment parameters

Operating temperature

0°C to 40°C (32°F to 104°F)

NOTE:

When the altitude is 1800 m-5000 m (5906ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Operating relative humidity

5% to 95%, noncondensing

Operating altitude

< 5000 m (16404.2 ft.)
