Dimensions (H x W x D)

227.5 mm x 165 mm x 36 mm (without the base)

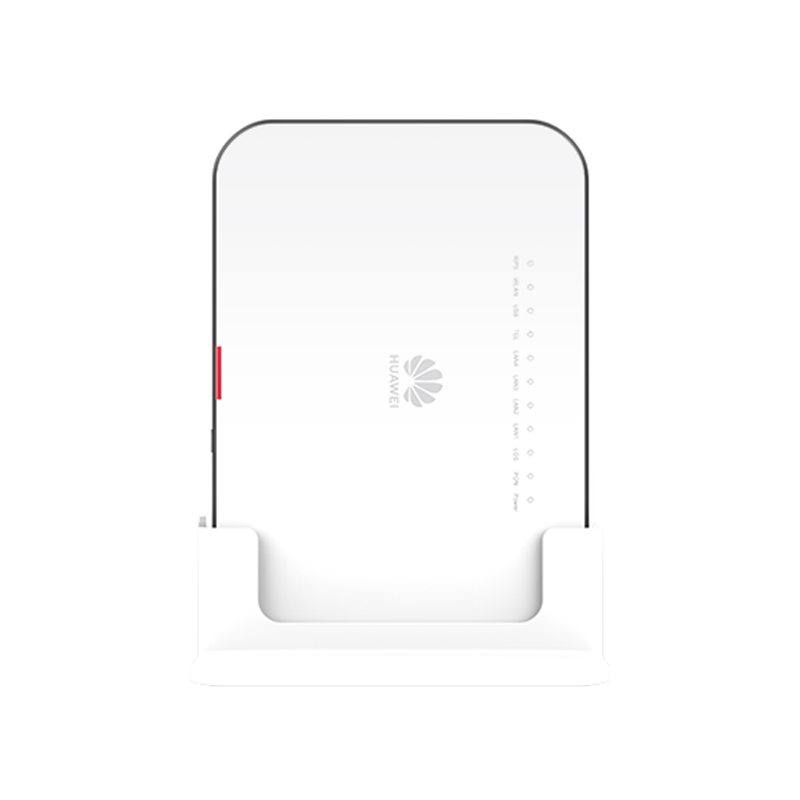

237.5 mm x 172.5 mm x 105 mm (with the base)

Weight

About 650 g

Operating Temperature

0°C to 40°C

Operating Humidity

5% RH to 95% RH (non-condensing)

Power Adapter Input

100–240 V AC, 50/60 Hz

System Power Supply

12 V DC, 1.5 A

Maximum Power Consumption

18 W

NNI

GPON

UNI

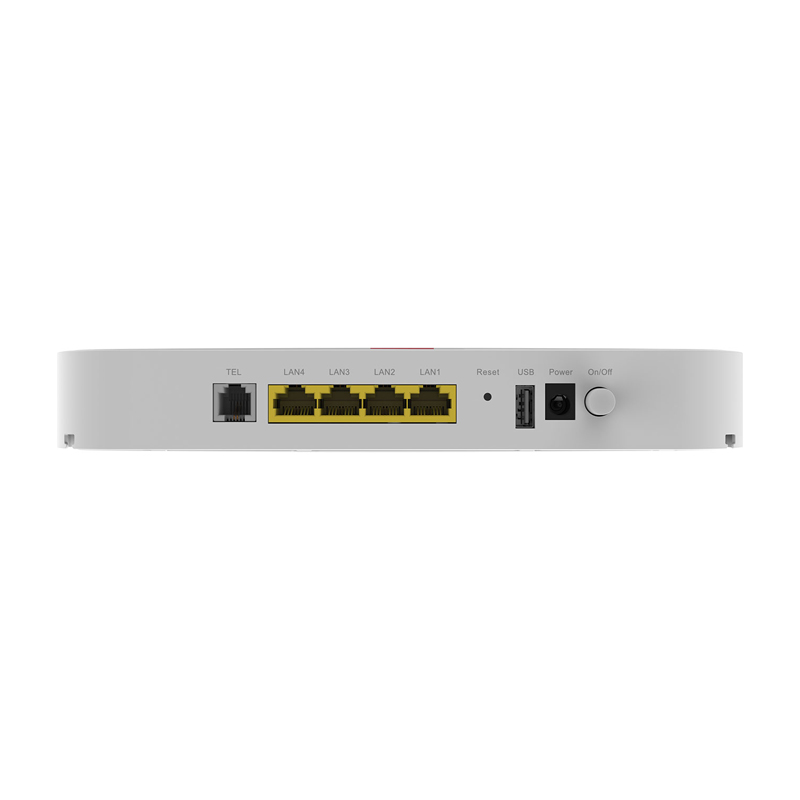

4*GE+1*POTS+2.4G/5G Wi-Fi 6+1USB

Optical connector

SC/APC

Indicators

Power/PON/LOS/LAN/TEL/USB/WLAN/WPS

Antenna

Built-in antenna

Memory

128 M Flash, 256 M RAM

Surge Protection Specifications

● AC power supply: 6 kV in common mode and 4 kV in differential mode

● ETH: common mode 2.5 kV

● POTS: common mode: 2.5 kV

Ethernet port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

USB port

● USB2.0

2.4G&5G Wi-Fi

● IEEE 802.11 b/g/n/ax (2.4GHz)

● IEEE 802.11 a/n/ac/ax (5GHz)

● 2 × 2 MIMO (2.4GHz&5GHz)

● Antenna gain: 2 dBi

● Maximum number of SSIDs on the radio: 4

● Maximum number of users on the radio: A maximum of 64 per frequency band

● Maximum transmit power on the radio: 27dBm(2.4GHz), 27dBm(5GHz)

● WMM (Wi-Fi Multi Media), Multiple SSIDs, WPS

● 2.4G&5G concurrent

● Air interface rate: 574 Mbit/s (2.4GHz), 2402 Mbit/s (5GHz)

● Beamforming

● Band steering

● DL OFDMA

● DL MU-MIMO

● 1024QAM

● 160MHz frequency bandwidth

● WPA3

Smart Service

● Anti-squatter

● Scheduled Wi-Fi shutdown

● Smart Wi-Fi sharing: Portal/802.1x authentication; SoftGRE-based sharing

Smart O&M

● IPTV video quality diagnosis (VMOS & eMDI)

● Rogue ONT detection and isolation from the OLT

● Call emulation, and circuit test and loop-line test

● PPPoE/DHCP simulation testing

● One-click diagnosis (Web)

Common O&M

● OMCI/Web UI/TR069

● Variable-length OMCI messages

● Dual-system software backup and rollback

Multicast

● IGMP v2/v3 snooping

● IGMP v2/v3 proxy

● MLD v1/v2 snooping

Smart Interconnection

● Smart Wi-Fi coverage

● SIP/H.248 auto-negotiation

● Any port, any service

● Parental control

Power Saving

● Indicator power saving

● COC V7.1

Security

● SPI firewall

● Anti-DoS attack

● Filtering based on MAC/IP/URL addresses

WLAN Security

● Open system authentication

● WEP authentication/encryption is supported. The encryption word length is 64-bit or 128-bit

● WPA2-PSK authentication/encryption (WPA2 Personal Edition)

● WPA2-802.1X authentication/encryption (WPA2 Enterprise Edition)

● WPA3-SAE authentication and encryption (WPA3 personal edition)

● WPA3-802.1X authentication/encryption (WPA3 Enterprise Edition)

● Supports WPA-WPA2 hybrid authentication.

● Supports WPA2-WPA3 hybrid authentication.

● Supports 802.1X authentication, MAC address authentication, and Portal authentication.

● Supports Wi-Fi management frame encryption.

QoS

● Priority-based data processing and forwarding based on the mapping and priority scheduling rules of Wi-Fi Multimedia (WMM) standards

● Supports WMM power saving mode and Airtime scheduling

● Supports Airtime scheduling

Layer 3 Features

● PPPoE/Static IP/DHCP

● NAT/NAPT

● Port forwarding

● ALG, UPnP

● DDNS/DNS server/DNS client

● IPv6/IPv4 dual stack, DSLite and IPv6 SPI

● Static/Default routes

● Multiple services on one WAN port

Home Network Feature

● Visualized home network management

● User-defined bandwidth allocation

● Wi-Fi optimization & Wi-Fi roaming

● Wi-Fi O&M

● intelligent identification and anti-interference
