Huawei OptiXstar P871E-G GPON ONU 2 GE

USD

5 5/5.0 Reviews Q/A 11 Sold/Mon
Detail:	Huawei OptiXstar P871E-G,GPON Terminal,SC/UPC-220V,White shell,Chinese and English
Model:	OptiXstar P871E-G
Condition:	Factory Sealed New
Related:	Huawei OptiXstar P871E ONU 1 XGS-PON 2 GE Huawei OptiXstar P871E-H XGS-PON ONU
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.6	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

A panel-type Optical Network Unit (ONU) that can be easily installed in 86-type electrical boxes on enterprise campuses, Huawei OptiXstar P871E is equipped with one Gigabit Passive Optical Network (GPON) or 10-Gigabit-Capable Symmetric Passive Optical Network (XGS-PON) port in the upstream direction, and two GE ports on the user side.

OptiXstar P871E series features multiple models: P871E with XGS-PON AC power, P871E-G with GPON AC power, and P871E-H with XGS-PON Advanced Fiber with Power (AFwP), which uses fibers for high-bandwidth connections and copper wires for power supply to remote optical devices.

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar P871E-G
Dimensions (H x W x D)	Panel: 86 x 86 x 9.5 mm Internal module depth: 35 mm
Weight	Approximately 168 g
Operating Temperature	–5°C to +40°C
Operating Humidity	5–95% RH (non-condensing)
AC Input	100–240 V AC, 50/60 Hz
Water Proof Rating	IP20
Surge Protection	GE: common mode 2.5 kV; differential mode 2.5 kV AC power supply: common mode 6 kV; differential mode 4 kV DC power supply: common mode 4 kV; differential mode 2 kV
Maximum Power Consumption	7.2 W
NNI	GPON
UNI	2 x GE

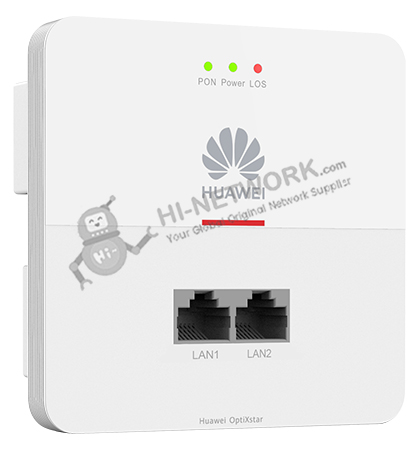

Figure 1 shows the appearance of OptiXstar P871E-G.

front-optixstar-p871e-g-datasheet

Product Details

Interface Parameters

GPON Port

● Port type: SC/UPC

● Complying with ITU-T G.984.2, Class B+

● Receiver sensitivity: –8 dBm to –27 dBm

● Overload optical power: –8 dBm

● Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s

● Type B single-homing

● Type B dual-homing (supported in Layer 2 forwarding)

Ethernet Electrical Port

● Port type: RJ-45

● Auto port speed (10/100/1000 Mbit/s)

● Auto-MDI/MDIX

● Configuration of the number of MAC addresses learned

● VLAN transparent transmission/VLAN filtering

Features

Versatile Design

● Easy installation in 86-type electrical boxes, with XGS-PON AC power, GPON AC power, and XGS-PON AFwP options

High Reliability

● Type B dual-homing service protection, plus 802.1x and IPv6/IPv4 firewalls, ensuring device access and network security

Smart O&M

● Variable-length OMCI messages

● Rogue ONU detection and self-regulation

● Ring network detection

● PPPoE/DHCP simulation testing

Get More Information

Do you have any question about the OptiXstar P871E-G?

Specific Data Sheet:

OptiXstar P871E-G Specification
Dimensions (H x W x D)	Panel: 86 x 86 x 9.5 mm Internal module depth: 35 mm
Weight	Approximately 168 g
Operating Temperature	–5°C to +40°C
Operating Humidity	5–95% RH (non-condensing)
AC Input	100–240 V AC, 50/60 Hz
Water Proof Rating	IP20
Surge Protection	GE: common mode 2.5 kV; differential mode 2.5 k AC power supply: common mode 6 kV; differential mode 4 kV DC power supply: common mode 4 kV; differential mode 2 kV
Maximum Power Consumption	7.2 W
NNI	GPON
UNI	2 x GE
Installation Mode	Indoor 86-box installation
Compliance Certification	CE/CCC
GPON Port	● Port type: SC/UPC ● Complying with ITU-T G.984.2, Class B+ ● Receiver sensitivity: –8 dBm to –27 dBm ● Overload optical power: –8 dBm ● Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s ● Type B single-homing ● Type B dual-homing (supported in Layer 2 forwarding)
Ethernet Electrical Port	● Port type: RJ-45 ● Auto port speed (10/100/1000 Mbit/s) ● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned ● VLAN transparent transmission/VLAN filtering
