Huawei OptiXstar MA5621E GPON ONU 8 GE 1 Alarm 4 RS485/RS232

USD

5 5/5.0 Reviews Q/A 4 Sold/Mon
Detail:	Huawei OptiXstar MA5621E ONU, 1 x GPON SFP + 1 x GPON BOB, 8 x GE + 4 x RS485/RS232 + 1 x Alarm
Model:	OptiXstar MA5621E
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 3	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

Designed for diverse industrial scenarios — from electric power to manufacturing and to transportation — Huawei OptiXstar MA5621E is an Optical Network Unit (ONU) that supports dual Gigabit-capable Passive Optical Network (GPON) upstream transmission, offering an industrial-grade design, high reliability, and a high protection level.

With centralized management possible through Huawei's eSight platform, Huawei OptiXstar MA5621E can be installed on any indoor desktop computer table, in a 19-inch cabinet, or inside a network box. The ONU offers diverse capabilities such as Type B/Type C hand-in-hand service protection and 6 kV surge protection in common mode for the Ethernet port.

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar MA5621E
Dimensions (H x W x D)	43.6 x 250 x 180 mm (without mounting ears) 43.6 x 482.6 x 180 mm (without mounting ears)
Weight (Without Power Adapter)	Approximately 2.5 kg
Operating Temperature	–40° C to +70° C
Operating Humidity	5–95% RH (non-condensing)
Power Rating (DC Configuration)	12~48 V; 2 A
Power Rating (AC Configuration)	100~240 V AC; 50/60 Hz; 0.5 A
Surge Protection	Ethernet port: common mode 6 kV; differential mode 1.5 kV DC power port: common mode 4 kV; differential mode 2 kV
Maximum Power Consumption	Approximately 12 W
NNI	1 x GPON SFP + 1 x GPON BOB
UNI	8 x GE + 4 x RS485/RS232 + 1 x Alarm

Figure 1 shows the appearance of OptiXstar MA5621E (DC Configuration).

dc-optixstar-ma5621e-datasheet

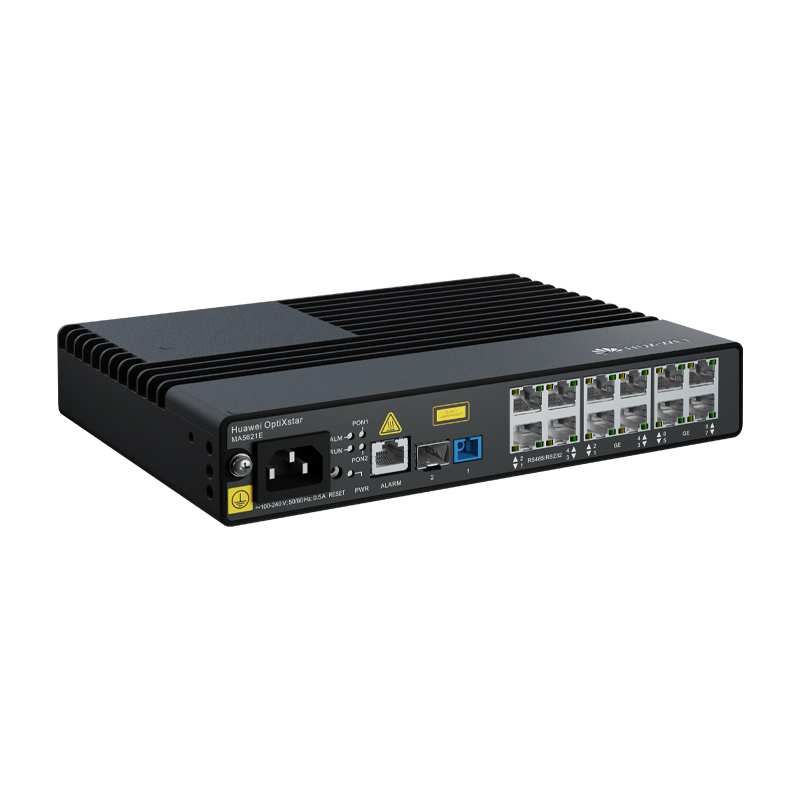

Figure 1 shows the appearance of OptiXstar MA5621E (AC Configuration).

ac-optixstar-ma5621e-datasheet

Product Details

Interface Parameters

PON Port	NNI - GPON Port (1 x SFP + 1 x BOB) Port type: SC/UPC Standard compliance: ITU-T G.984, Class B+ Maximum transmission distance: 20 km Transmission rate: RX: 2.488 Gbit/s; TX: 1.244 Gbit/s Optical receiver sensitivity: –27 dBm Overload optical power: –8 dBm
Ethernet Electrical Port	Port type: RJ-45 Auto port speeds (10/100/1000 Mbit/s)
RS485 Port	Port type: RJ-45 Complies with TIA/EIA-485, ITU-T V.24, ITU-T V.28
RS232 Port	Port type: RJ-45 Complies with TIA/EIA-232, ITU-T V.24, ITU-T V.28
UNI — Alarm	Connected to the external alarm device or other devices Port type: RJ-45

Product Function

Automatic Service Provisioning	● Authentication exemption ● XML/OMCI/OAM
Network Protection	● Type B Protection ● Type C Protection ● Ring network detection
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR
Layer 2 Management	● DHCP Option82 ● PITP ● BPDU transparent transmission ● LLDP/LLDP-MED
Layer 3 Features	● Default/Static/Policy/Service Route ● VLAN binding ● ALG/UPnP/ARP ● DDNS/DMZ/DNS/NAPT ● PPPoE/Static IP/DHCP ● Port mapping/Port trigger ● IPv6
Smart O&M	● XML/Web UI ● Centralized management on eSight ● Rogue ONT detection and self-regulation ● PPPoE/DHCP simulation testing ● Serial port data collection and transmission ● Transparent transmission of serial port data
Security	● Filtering based on MAC/IP/URL ● DoS/ARP anti-attacks ● Web session number restriction ● Device access control ● 802.1x authentication modes: EAP-MD5, TLS, TTLS, and PEAP ● Static MAC address binding ● IPv6/IPv4 firewall
Multicast	● IGMP v2/v3 snooping ● Dynamic controllable multicast
Electricity Industry Standards	● DL 645 ● DL 698.41 ● IEC 60870-5-101 ● IEC 60870-5-102

Get More Information

Do you have any question about the OptiXstar MA5621E?

Specific Data Sheet:

OptiXstar MA5621E Specification
Dimensions (H x W x D)	43.6 x 250 x 180 mm (without mounting ears) 43.6 x 482.6 x 180 mm (without mounting ears)
Weight (Without Power Adapter)	Approximately 2.5 kg
Operating Temperature	–40° C to +70° C
Operating Humidity	5–95% RH (non-condensing)
Power Rating (DC Configuration)	12~48 V; 2 A
Power Rating (AC Configuration)	100~240 V AC; 50/60 Hz; 0.5 A
Surge Protection	Ethernet port: common mode 6 kV; differential mode 1.5 kV DC power port: common mode 4 kV; differential mode 2 kV
Maximum Power Consumption	Approximately 12 W
NNI	1 x GPON SFP + 1 x GPON BOB
UNI	8 x GE + 4 x RS485/RS232 + 1 x Alarm
Installation Mode	Placed on an indoor desktop or installed in a 19-inch cabinet or network box
Protection Level	IP40
Authentication	802.1X
PON Port	NNI - GPON Port (1 x SFP + 1 x BOB) Port type: SC/UPC Standard compliance: ITU-T G.984, Class B+ Maximum transmission distance: 20 km Transmission rate: RX: 2.488 Gbit/s; TX: 1.244 Gbit/s Optical receiver sensitivity: –27 dBm Overload optical power: –8 dBm
Ethernet Electrical Port	Port type: RJ-45 Auto port speeds (10/100/1000 Mbit/s)
RS485 Port	Port type: RJ-45 Complies with TIA/EIA-485, ITU-T V.24, ITU-T V.28
RS232 Port	Port type: RJ-45 Complies with TIA/EIA-232, ITU-T V.24, ITU-T V.28
UNI — Alarm	Connected to the external alarm device or other devices Port type: RJ-45
