Huawei OptiXstar K562 ONT 3GE/2GE Wi-Fi

USD

5 5/5.0 Reviews Q/A 4 Sold/Mon
Detail:	Huawei OptiXstar K562 ONT, Wi-Fi or GE, Wi-Fi uplink: 3 x GE + 2.4G & 5G Wi-Fi 6/GE uplink: 2 x GE + 2.4 G & 5G Wi-Fi 6
Model:	OptiXstar K562
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.7	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

Huawei OptiXstar K562 is a dual-band edge ONT that supports gigabit access over both Wi-Fi 6 and Ethernet gigabit network ports.

● Embedded AI (eAI) acceleration for value-added services, such as online games, online education, and teleconference

● Next-generation Wi-Fi 6 MU-MIMO technology

● VR/4K over Wi-Fi

● 160 MHz channel width

● Strong anti-interference capability, wide coverage, and network self-healing

● One-click pairing and automatic networking

● Ethernet port auto-sensing for LAN or WAN mode

● Mesh network (tree type)

● Remote management, installation and maintenance APP management, and user APP management

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar K562
Dimensions (H x W x D)	117 mm × 117 mm × 146 mm
Weight	< 700 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	12V DC, 1 A
Static Power Consumption	< 4 W
Maximum Power Consumption	< 12 W
Antenna Type	4 internal antennas
NNI	Wi-Fi or GE
UNI	● Wi-Fi uplink: 3GE + 2.4GHz&5GHz Wi-Fi 6 ● GE uplink: 2GE + 2.4GHz&5GHz WiFi 6
Indicators	1 status indicators
Installation mode	On the desk
Memory	128MB Flash, 512MB RAM

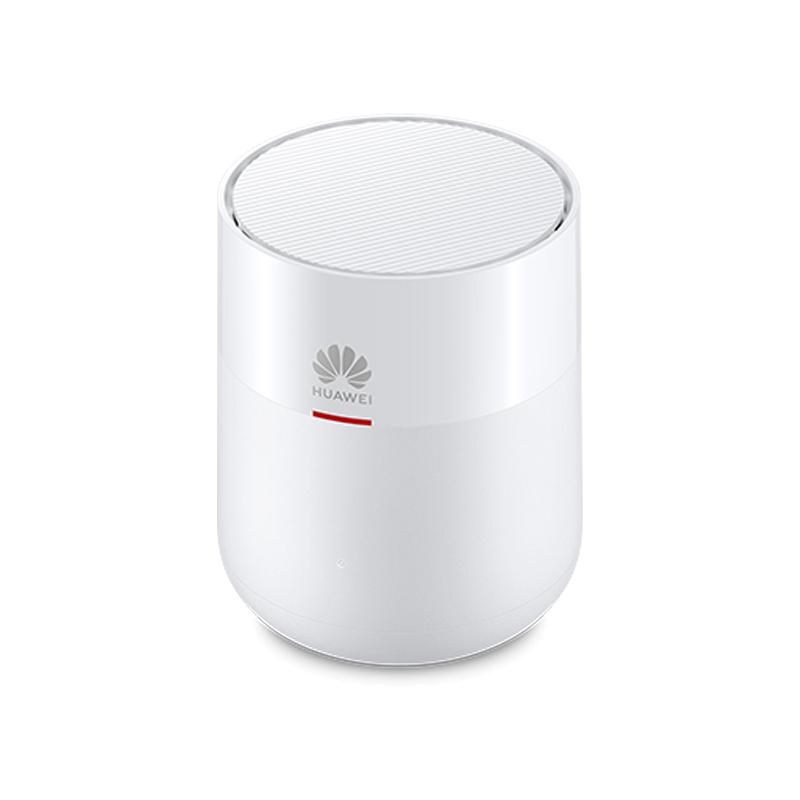

Figure 1 shows the appearance of OptiXstar K562.

overview-optixstar-k562-datasheet

Product Details

Wi-Fi Specifications

Supported Protocol	IEEE 802.11 ax (2.4GHz&5GHz)
MIMO	2×2 MIMO (2.4GHz&5GHz)
Antenna Gain	2.4GHz Wi-Fi 6: 2dBi 5GHz Wi-Fi 6: 4dBi
Air interface rate	574 Mbps (2.4GHz) 2402 Mbps (5GHz)
Others	WMM (Wi-Fi MultiMedia); Beamforming; Band steering;1024-QAM, 160 MHz channel width, WPA3, and DL MU MIMO

Feature Highlights

Home Network

Working with gateway for the PremiumWiFi solution supports the following features:

● Plug and play

● One-click pairing and automatic networking

● Automatic Wi-Fi configuration synchronization

● Wi-Fi channel optimization within the home network

● Wi-Fi roaming (802.11k/802.11v) within the home network*

● VR/4K over Wi-Fi

Home Network Management

Working with the iMaster NCE platform supports the following features:

● Remote management and maintenance

● Technician APP**

● eAI acceleration management

● Management of mobile phone APPs** of users:

− Installation guide

− Visible home network topology

− One-click health check

− Wi-Fi configuration

− Blacklist and parent control

Smart interconnection

● 2 upstream modes: Ethernet upstream mode and Wi-Fi upstream mode

● Working modes:

− Routing mode (Ethernet or Wi-Fi upstream transmission, which can be connected to the iMaster NCE platform)

− Bridging mode (Ethernet or Wi-Fi upstream transmission, supporting 2-level cascading networking)

● Auto-sensing of LAN or WAN on the network port (Internet access available when the network cable is connected to either port)

● Auto-detection of Internet access mode (PPPoE/DHCP)

Layer 3 Features

● PPPoE/static IP/DHCP

● NAT/NAPT

● Port forwarding

● ALG, UPnP

● DDNS/DNS server/DNS client

● IPv6/IPv4 dual stack

● Static/default routes

O&M

● Web UI

● Dual-system software backup and rollback

Security

● SPI firewall

● Parent control

eAI Acceleration

● Automatically identifies online games, online education, and teleconference services by eAI

● Implements intelligent acceleration.

*: Supported when the STA supports 802.11k or 802.11v.

**: Huawei provides the basic mobile APP version for carriers. Carriers can develop customized features based on the SDK provided by Huawei.

Get More Information

Do you have any question about the OptiXstar K562?

Specific Data Sheet:

OptiXstar K562 Specification
Dimensions (H x W x D)	117 mm × 117 mm × 146 mm
Weight	< 700 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	12V DC, 1 A
Static Power Consumption	< 4 W
Maximum Power Consumption	< 12 W
Antenna Type	4 internal antennas
NNI	Wi-Fi or GE
UNI	● Wi-Fi uplink: 3GE + 2.4GHz&5GHz Wi-Fi 6 ● GE uplink: 2GE + 2.4GHz&5GHz WiFi 6
Indicators	1 status indicators
Button	Reset and WPS button
Installation mode	On the desk
Memory	128MB Flash, 512MB RAM
