Huawei OptiXstar F200D-8G GPON ONU 8 GE

234
5
5/5.0
Q/A
6 Sold/Mon
Detail: Huawei OptiXstar F200D-8G GPON ONU, 8 GE
Model: OptiXstar F200D-8G
Condition: Factory Sealed New
Related:
Warranty:
3-Years Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
1.2
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


The Huawei OptiXstar F200D-8G is a box-shaped ONU designed for enterprise campus and video backhaul scenarios. It provides eight GE service ports, providing users with high-quality voice, data, and HD video services.


Quick Specification


Table 1 shows the Quick Specification.

Model

OptiXstar F200D-8G

Dimensions (H x W x D)

220 mm x 150 mm x 35 mm (excluding rubber pad)

Weight

About 1.2 kg

Operating Temperature

–10°C to +55°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Rated Input Range of Power Adapter

100–240 V AC, 50/60 Hz

System Power Supply

12 V DC, 1 A

Network-side Port

GPON (BOB)

User-side Port

8xGE

Surge Protection Specifications

GE: 6 kV in common mode and 1.5 kV in differential mode

AC power port: 6 kV in common mode and 6 kV in differential mode

Static Power Consumption

5 W

Maximum Power Consumption

8 W

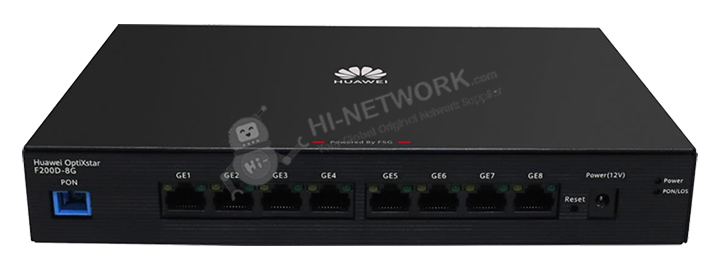

Figure 1 shows the appearance of OptiXstar F200D-8G.


front-optixstar-f200d-8g-datasheet



Features & Benefits

● 802.1x and IPv6/IPv4 firewall, ensuring device access security and network security

● –10°C to +55°C wide temperature range, strong environment adaptability

● High reliability, supporting type B service protection

● Centralized management on eSight



Product Details


Interface Parameters

GPON Port

● Port type: SC/UPC

● Complies with ITU-T G.984.2, Class B+.

● Receiver sensitivity: –27 dBm to –29 dBm

● Overload optical power: –8 dBm

● Transmission rate: downstream rate 2.488 Gbit/s, upstream rate 1.244 Gbit/s

GE Port

● Port type: RJ45

● 10/100/1000 Mbit/s auto-sensing

● MDI/MDIX automatic configuration

● Configuring the number of learnable mac addresses

● Ethernet port-based VLAN transparent transmission and filtering


Product Function

Automatic Service Provisioning

● Authentication exemption

● XML/OMCI/TR069

Intelligent O&M

● XML/Web UI

● Rogue ONT detection and self-regulation

● Ring network detection

● PPPoE/DHCP emulation

Layer 3 Features

● Default/Static/Policy/Service route

● VLAN binding

● ALG/UPnP/ARP

● DDNS/DMZ/DNS/NAPT

● PPPoE/Static IP address/DHCP

● Port mapping/Port trigger

● IPv6

Security

● 802.1x

● IPv6/IPv4 firewall

● MAC address filtering/IP address filtering

● Anti-DoS/anti-ARP attack

● Static MAC addresses binding

● Device access control

Multicast

● IGMP v2/v3 snooping

● Dynamic controllable multicast

● IGMP proxy

● MLDv1/MLDv2 snooping

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

Layer 2 Management

● DHCP Option82

● PITP

● BPDU transparent transmission

● LLDP

Networking Protection

● Type B single homing

● Type B dual-homing (supported in L2 forwarding)


Power Adapter

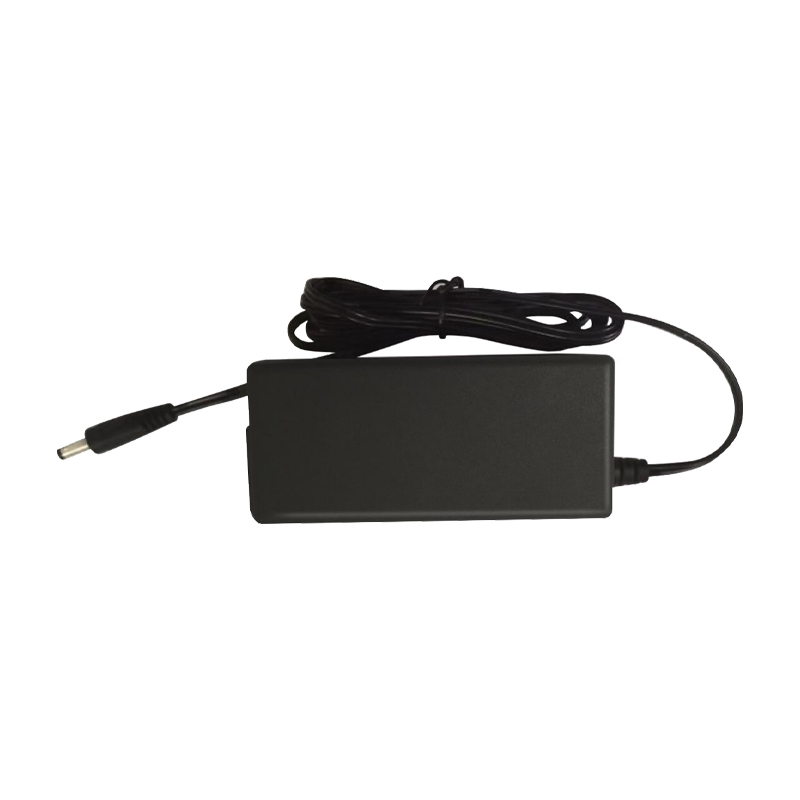

Figure 2 shows the appearance of the power adapter.


power-adapter-optixstar-f200d-8g-datasheet

Table 2 shows the specification.

Dimensions

96 mm (length) x 44 mm (width) x 30 mm (height)

Power Supply Specifications

Input voltage: 100–240 V AC, 50 Hz/60 Hz

Rated output voltage/current: 12V DC/1A

Input/Output connector type: C8 2Pin/DC straight audio plug 4.0*1.7

Power

12 W

Weight

About 0.11 kg

Installation Mode

Desktop

Operating Temperature

40°C to +55°C

Power Cable

Specifications: 2468 22AWG

Cable length: 1.5m


Get More Information

Do you have any question about the OptiXstar F200D-8G?

Contact us now via [email protected].

Specific Data Sheet:


OptiXstar F200D-8G Specification

Dimensions (H x W x D)

220 mm x 150 mm x 35 mm (excluding rubber pad)

Weight

About 1.2 kg

Operating Temperature

–10°C to +55°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Rated Input Range of Power Adapter

100–240 V AC, 50/60 Hz

System Power Supply

12 V DC, 1 A

Network-side Port

GPON (BOB)

User-side Port

8xGE

Surge Protection Specifications

GE: 6 kV in common mode and 1.5 kV in differential mode

AC power port: 6 kV in common mode and 6 kV in differential mode

Static Power Consumption

5 W

Maximum Power Consumption

8 W

Installation Mode

Indoor desktop, wall, or network box

GPON Port

● Port type: SC/UPC

● Complies with ITU-T G.984.2, Class B+.

● Receiver sensitivity: –27 dBm to –29 dBm

● Overload optical power: –8 dBm

● Transmission rate: downstream rate 2.488 Gbit/s, upstream rate 1.244 Gbit/s

GE Port

● Port type: RJ45

● 10/100/1000 Mbit/s auto-sensing

● MDI/MDIX automatic configuration

● Configuring the number of learnable mac addresses

● Ethernet port-based VLAN transparent transmission and filtering
