OptiXstar F100P
  • OptiXstar F100P

Huawei OptiXstar F100P ONU 1 GPON 2 GE

103
5
5/5.0
Q/A
11 Sold/Mon
Detail: Huawei OptiXstar F100P-2G panel ONU, 1*GPON (SC/UPC), 2*GE
Model: OptiXstar F100P
Condition: Factory Sealed New
Related:
Warranty:
3-Years Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.168
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


Huawei OptiXstar F100P-2G is a panel ONU for enterprise campuses. They can be quickly installed on the 86-type electric box. Provides one GPON port in the upstream direction and two GE Ethernet ports on the user side. The high-performance forwarding capability effectively ensures data and HD video service experience, providing an ideal solution for enterprise campus deployment and future-oriented service support.

● Compact design, plug-and-play, flexible and easy to install

● 802.1x and IPv6/IPv4 firewalls ensure device access security and network security.

● High reliability, supporting type B dual-homing service protection



Quick Specification


Table 1 shows the Quick Specification.

Model

OptiXstar F100P

Dimensions (H x W x D)

Panel: 86 mm x 86 mm x 9.5 mm

Internal module depth: 35 mm

Weight

168 g

Operating Ambient Temperature

-5°C - 40°C

Operating Ambient Humidity

5% RH to 95% RH, non-condensing

Power Supply of The Entire System

100–240 V AC, 50/60 Hz

Network-side Ports

● Network side: 1*GPON

User-side Ports

● User side: 2*GE

Static Power Consumption

7.2 W

Maximum Power Consumption

7.2 W

Surge Protection Specifications

● GE: 4 kV in commonmode and 0.5 kV in differential mode

● AC power supply: 6kV in common mode and 4 kV in differential mode

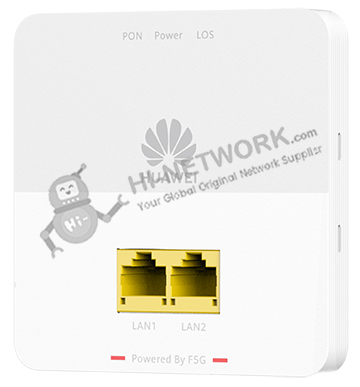

Figure 1 shows the appearance of OptiXstar F100P.


front-optixstar-f100p-2g-datasheet



Product Details


Interface Parameters

PONport

● Interface type: SC/UPC

● Downstream: 2.488 Gbit/s; Upstream: 1.244 Gbit/s

● Receiversensitivity: -27 dBm

● Overload optical power: –8 dBm

NOTICE:If the optical power is greater than the overload optical power, the devicemay be damaged. In this case, connect an optical attenuator.

GEport

● Interface type: RJ-45

● 10/100/1000 Mbit/s interface rate auto-sensing

● MDI/MDIX automatic configuration

● Configuring the Number of Learned MAC Addresses

● Ethernet port-based VLAN transparent transmission and filtering


Product Function

Automatic Service Provisioning

● Authenticationexemption

● XML/OMCI/TR069

QoS

● Ethernet portrate limitation

● 802.1p priority

● SP/WRR/SP+WRR

● Broadcast packetrate limitation

● Flow mappingbased on VLAN, 802.1p, Ethernet port, or any combination of VLAN, 802.1p, andEthernet port

Smart O&M

● Variable-lengthOMCI messages

● Rogue ONTdetection and self-regulation

● Ring networkdetection/PPPoE/DHCP simulation testing

Common O&M

● OMCI/Web UI

● Software dual backup and rollback

● Optical link measurement and diagnosis

● Loop detection

Multicast

● IGMP v2/v3snooping

● MLDv1/MLDv2snooping

● Quickly leave

● Downstreammulticast VLAN translation/transparent transmission/stripping

● IGMP/MLD packetrate limitation

Security

● MAC filtering

Power saving

● Indicator powersaving

● Power consumptionreduction of idle components in power-saving state


Get More Information

Do you have any question about the OptiXstar F100P?

Contact us now via [email protected].

Specific Data Sheet:


OptiXstar F100P Specification

Dimensions (H x W x D)

Panel: 86 mm x 86 mm x 9.5 mm

Internal module depth: 35 mm

Weight

168 g

Power Supply of The Entire System

100–240 V AC, 50/60 Hz

Interface

● Network side: 1*GPON

● User side: 2*GE

Static Power Consumption

7.2 W

Maximum Power Consumption

7.2 W

Optical Fiber Interface

SC/UPC, GPON upstream transmission

Button

Reset button and indicator switch

Storage

128 MB FLASH, 512 MB DRAM

Installation Mode

Indoor 86-box installation

Operating Ambient Temperature

-5°C - 40°C

Operating Ambient Humidity

5% RH to 95% RH, non-condensing

Protection Rating

IP20

Surge Protection Specifications

● GE: 4 kV in common mode and 0.5 kV in differential mode

● AC power supply: 6 kV in common mode and 4 kV in differential mode

PON port

● Interface type: SC/UPC

● Downstream: 2.488 Gbit/s; Upstream: 1.244 Gbit/s

● Receiver sensitivity: -27 dBm

● Overload optical power: –8 dBm

NOTICE: If the optical power is greater than the overload optical power, the device may be damaged. In this case, connect an optical attenuator.

GE port

● Interface type: RJ-45

● 10/100/1000 Mbit/s interface rate auto-sensing

● MDI/MDIX automatic configuration

● Configuring the Number of Learned MAC Addresses

● Ethernet port-based VLAN transparent transmission and filtering
