Huawei OptiXstar EN8245X6s-8N XGS-PON ONT 2.5GE 3 GE 2 POTS 1 USB Wi-Fi 6

USD

5 5/5.0 Reviews Q/A 5 Sold/Mon
Detail:	Huawei OptiXstar EN8245X6s-8N, a routing-type ONT, XGS-PON (SC/APC), 1x2.5GE+3xGE+2xPOTS+2.4GHz/5GHz Wi-Fi 6+1USB
Model:	OptiXstar EN8245X6s-8N
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.765	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei OptiXstar EN8245X6s-8N is an XGS-PON and Wi-Fi 6 routing-type ONT. It uses the XGS-PON and Wi-Fi 6 technologies to implement ultra-broadband access, high performance and wide coverage for users. The high forwarding performance ensures the user experience of voice and data services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

It provides one 2.5GE port, three GE ports, two POTS ports, one USB port and 2.4GHz&5GHz Wi-Fi 6 function.

● Next generation Wi-Fi 6 technology

● Smart service

● Smart interconnection

● Smart O&M

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar EN8245X6s-8N
Dimensions (H x W x D)	247.5mm x 216.5mm x 72mm (without pads)
Weight	About 765 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	12 V DC, 3 A
Static Power Consumption	12.1 W
Maximum Power Consumption	30 W
Antenna Type	Internal antennas
NNI	XGS-PON
UNI	1x2.5GE+3xGE+2xPOTS+2.4GHz/5GHz Wi-Fi 6+1USB
Optical Connector	SC/APC
Indicators	Power/PON/LOS/LAN/2.5G LAN/TEL/USB/WLAN/WPS
Memory	128MB Flash, 512MB RAM

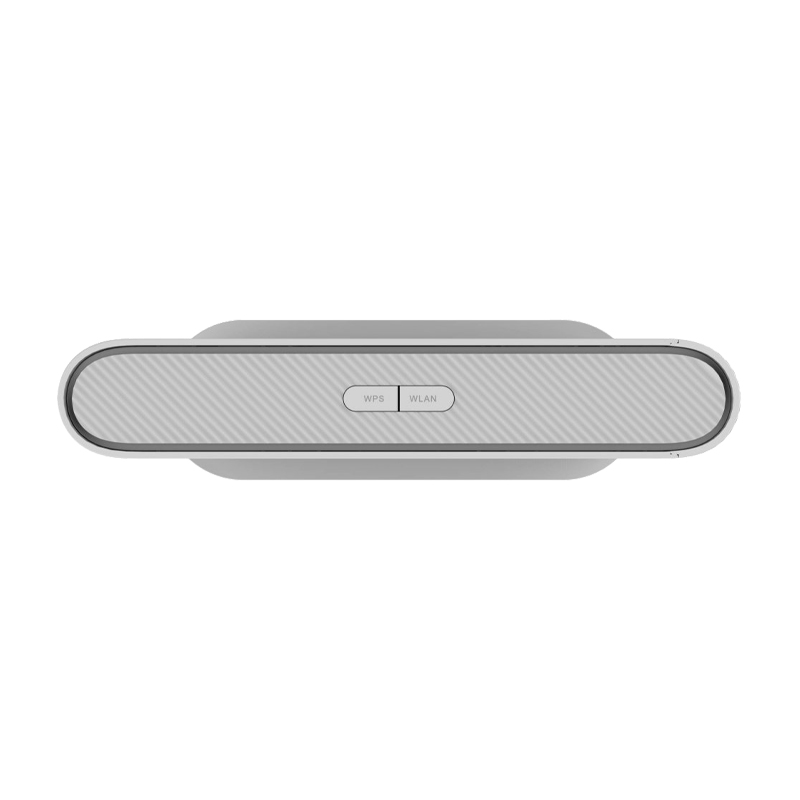

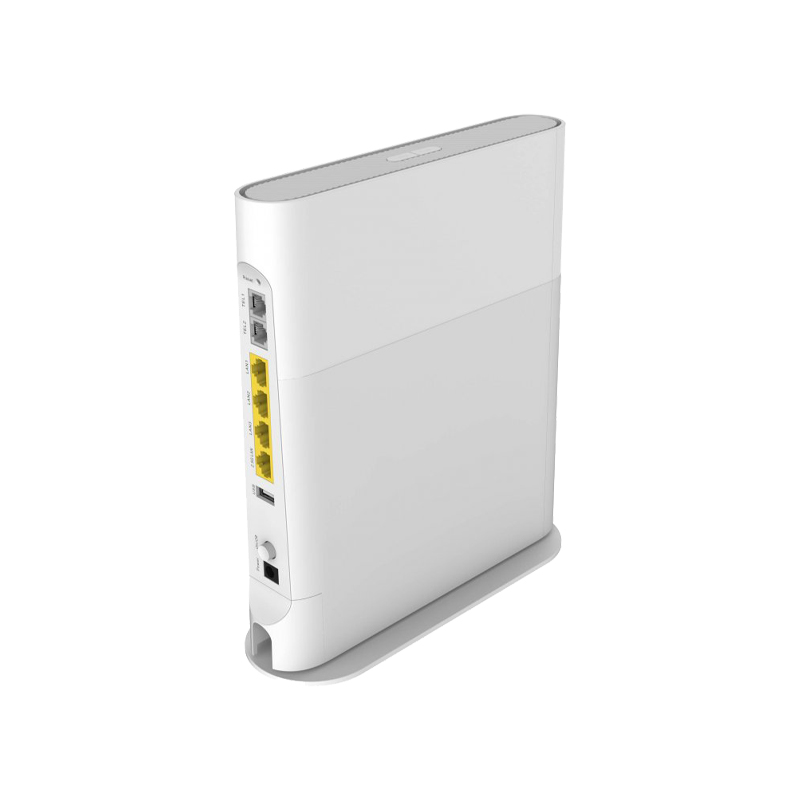

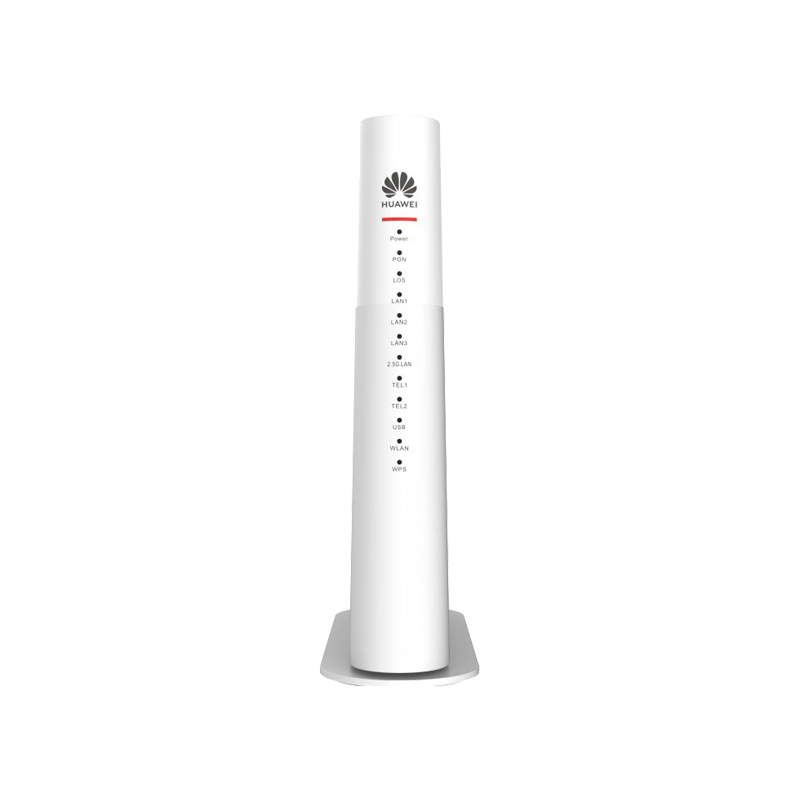

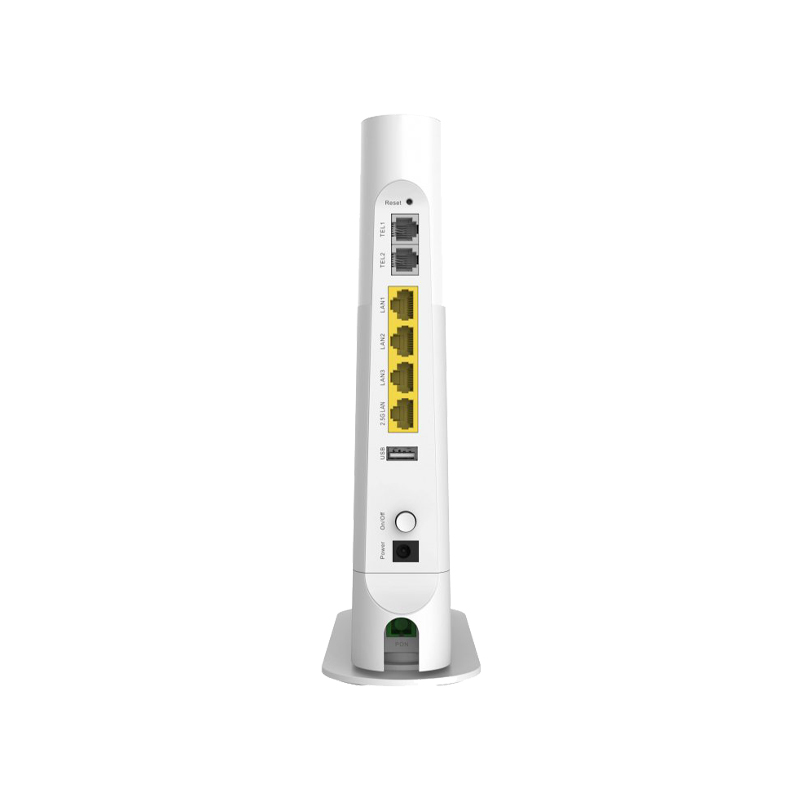

Figure 1 shows the appearance of OptiXstar EN8245X6s-8N.

overview-optixstar-eg8245x6s-8n-datasheet

Product Details

Interface Parameters

XG-PON Port	● Class N1/N2/E1 ● Receiver sensitivity: -28 dBm ● Wavelengths: US 1260-1280 nm, DS 1575-1580 nm ● Upstream and downlink rate: 9.953 Gbit/s upstream, 9.953 Gbit/s downstream ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● SN/Password/SN+Password/Bi-directional authentication based on OMCI ● Upstream and downstream FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● GE port supports auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s ● 2.5GE port supports auto-adaptive 1000 Mbit/s or 2500 Mbit/s
POTS Port	● Maximum ringer equivalence number (REN): 4 ● G.711A/μ, G.729a/b and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA function
WLAN	● IEEE 802.11 b/g/n/ax (2.4G) ● IEEE 802.11 a/n/ac/ax (5G) ● 4 × 4 MIMO (2.4G) ● 4 × 4 MIMO (5G) ● 2.4G&5G concurrent ● Antenna gain: 2 dBi ● Air interface rate: 1147 Mbit/s (2.4G), 4804 Mbit/s (5G) ● 4096 QAM ● 160MHz frequency bandwidth ● OFDMA ● UL/DL MU-MIMO ● DCM ● BSS Coloring ● Beamforming ● Band steering ● WPA3 ● WMM/Multiple SSIDs/WPS

Product Function

Smart Interconnection	● Smart Wi-Fi coverage ● SIP/H.248 auto-negotiation ● Any port, any service ● Parental control
Smart Service	● Scheduled Wi-Fi shutdown ● Smart Wi-Fi sharing: Portal/802.1x authentication; SoftGRE-based sharing ● Association of one account with two POTS ports
Smart O&M	● IPTV video quality diagnosis ● eMDI ● Rogue ONT detection and isolation from the OLT ● Call emulation, and circuit test and loop-line test ● PPPoE/DHCP simulation testing ● Neighboring AP scanning
Common O&M	● OMCI/Web UI/TR069 ● Variable-length OMCI messages ● Dual-system software backup and rollback
Multicast	● IGMP v2/v3 proxy/snooping ● MLD v1/v2 snooping
Power Saving	● Indicator power saving
Security	● SPI firewall ● Filtering based on MAC/IP/URL addresses
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation
Layer 3 Features	● PPPoE/Static IP/DHCP ● NAT/NAPT ● Port forwarding ● ALG, UPnP ● DDNS/DNS server/DNS client ● IPv6/IPv4 dual stack, DSLite and IPv6 SPI ● Static/Default routes ● Multiple services on one WAN port
Home Network Feature	● Visualized home network management ● User-defined bandwidth allocation ● Wi-Fi optimization & Wi-Fi roaming ● Wi-Fi O&M

Get More Information

Do you have any question about the OptiXstar EN8245X6s-8N?

Specific Data Sheet:

OptiXstar EN8245X6s-8N Specification
Dimensions (H x W x D)	247.5mm x 216.5mm x 72mm (without pads)
Weight	About 765 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	12 V DC, 3 A
Static Power Consumption	12.1 W
Maximum Power Consumption	30 W
Antenna Type	Internal antennas
NNI	XGS-PON
UNI	1x2.5GE+3xGE+2xPOTS+2.4GHz/5GHz Wi-Fi 6+1USB
Optical Connector	SC/APC
Indicators	Power/PON/LOS/LAN/2.5G LAN/TEL/USB/WLAN/WPS
Memory	128MB Flash, 512MB RAM
XG-PON Port	● Class N1/N2/E1 ● Receiver sensitivity: -28 dBm ● Wavelengths: US 1260-1280 nm, DS 1575-1580 nm ● Upstream and downlink rate: 9.953 Gbit/s upstream, 9.953 Gbit/s downstream ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● SN/Password/SN+Password/Bi-directional authentication based on OMCI ● Upstream and downstream FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● GE port supports auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s ● 2.5GE port supports auto-adaptive 1000 Mbit/s or 2500 Mbit/s
POTS Port	● Maximum ringer equivalence number (REN): 4 ● G.711A/μ, G.729a/b and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA function
WLAN	● IEEE 802.11 b/g/n/ax (2.4G) ● IEEE 802.11 a/n/ac/ax (5G) ● 4 × 4 MIMO (2.4G) ● 4 × 4 MIMO (5G) ● 2.4G&5G concurrent ● Antenna gain: 2 dBi ● Air interface rate: 1147 Mbit/s (2.4G), 4804 Mbit/s (5G) ● 4096 QAM ● 160MHz frequency bandwidth ● OFDMA ● UL/DL MU-MIMO ● DCM ● BSS Coloring ● Beamforming ● Band steering ● WPA3 ● WMM/Multiple SSIDs/WPS
