Huawei OptiXstar EN8145X6Ns XGS-PON ONT 1 2.5GE 3 GE 2 POTS 1 USB Wi-Fi

USD

5 5/5.0 Reviews Q/A 6 Sold/Mon
Detail:	Huawei OptiXstar EN8145X6Ns, a routing-type ONT, XGS-PON (SC/APC), 1x2.5GE+3xGE+2xPOTS+2.4GHz/5GHz Wi-Fi 6+1USB
Model:	OptiXstar EN8145X6Ns
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.57	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

Huawei OptiXstar EN8145X6Ns is an XGS-PON and Wi-Fi 6 routing-type ONT. It uses the XGS-PON and Wi-Fi 6 technologies to implement ultra-broadband access, high performance and wide coverage for users. The high forwarding performance ensures the user experience of voice and data services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

It provides 4 GE ports, 1 POTS port, 1 USB port and 1 2.4GHz&5GHzWi-Fi 6 port.

● Next generation Wi-Fi 6 technology

● Smart service

● Smart interconnection

● Smart O&M

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar EN8145X6Ns
Dimensions (W x D x H)	230mm x 156mm x 35mm (without external antenna and pads)
Weight	About 570 g
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	12 V DC, 2 A
Static Power Consumption	8 W
Maximum Power Consumption	22 W
NNI	XGS-PON
UNI	4xGE+1xUSB+1x POTS+2.4GHz&5GHz Wi-Fi 6
Indicators	Power/PON/LOS/LAN/TEL/USB/WLAN/WPS
Memory	128 MB Flash, 512 MB RAM

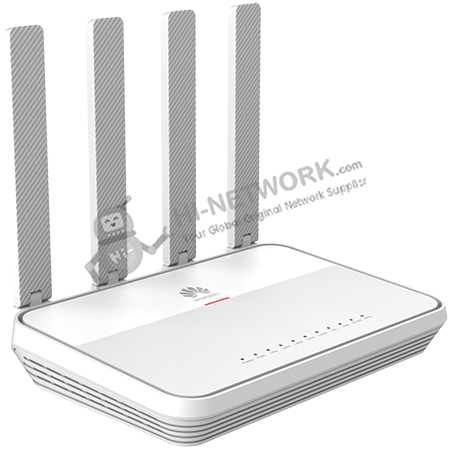

Figure 1 shows the appearance of OptiXstar EN8145X6Ns.

overview-optixstar-en8145x6ns-datasheet

Product Details

Interface Parameters

XGS-PON Port	● Class N1/N2/E1 ● Receiver sensitivity: -28 dBm ● Wavelengths: US 1260-1280 nm, DS 1575-1580 nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● SN/Password/SN+Password/Bi-directional authentication based on OMCI ● Upstream and downstream FEC ● SR-DBA and NSR-DBA ● 9.95328 Gbit/s upstream, 9.95328 Gbit/s downstream ● Type B (single-homing & dual-homing)
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● GE port supports auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA function
WLAN	● IEEE 802.11 b/g/n/ax (2.4GHz) ● IEEE 802.11 a/n/ac/ax (5GHz) ● 2×2 MIMO (2.4GHz&5GHz) ● Antenna gain: 5 dBi ● WMM (Wi-Fi Multi Media) ● Multiple SSIDs ● WPS ● 2.4GHz/5GHzconcurrent ● Air interface rate: 2. 4GHz: 574 Mbit/s; 5GHz: 2402 Mbit/s ● Beamforming ● Band steering ● DL MU-MIMO ● 1024QAM ● 160MHz bandwidth ● WPA3

Function List

Smart Interconnection	● Smart Wi-Fi coverage ● SIP/H.248 auto-negotiation ● Any port, any service ● Parental control
Smart Service	● Scheduled Wi-Fi shutdown ● Smart Wi-Fi sharing: Portal/802.1x authentication; SoftGRE-based sharing
Smart O&M	● IPTV video quality diagnosis ● eMDI ● Rogue ONT detection and isolation from the OLT ● Call emulation, and circuit test and loop-line test ● PPPoE/DHCP simulation testing ● WLAN emulation
Layer 3 Features	● PPPoE/Static IP/DHCP ● NAT/NAPT ● Port forwarding ● ALG, UPnP ● DDNS/DNS server/DNS client ● IPv6/IPv4 dual stack, DS-Lite and IPv6 SPI ● Static/Default routes ● Multiple services on one WAN port
Security	● SPI firewall ● Filtering based on MAC/IP/URL addresses
Multicast	● IGMP v2/v3 proxy/snooping ● MLD v1/v2 snooping
Common O&M	● OMCI/Web UI/TR069 ● Variable-length OMCI messages ● Dual-system software backup and rollback
Power Saving	● Indicator power saving ● COC V7.1
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation

Get More Information

Do you have any question about the OptiXstar EN8145X6Ns?

Specific Data Sheet:

OptiXstar EN8145X6Ns Specification
Dimensions (W x D x H)	230mm x 156mm x 35mm (without external antenna and pads)
Weight	About 570 g
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	12 V DC, 2 A
Static Power Consumption	8 W
Maximum Power Consumption	22 W
NNI	XGS-PON
UNI	4xGE+1xUSB+1x POTS+2.4GHz&5GHz Wi-Fi 6
Optical Connector	SC/APC
Indicators	Power/PON/LOS/LAN/TEL/USB/WLAN/WPS
Memory	128 MB Flash, 512 MB RAM
XGS-PON Port	● Class N1/N2/E1 ● Receiver sensitivity: -28 dBm ● Wavelengths: US 1260-1280 nm, DS 1575-1580 nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● SN/Password/SN+Password/Bi-directional authentication based on OMCI ● Upstream and downstream FEC ● SR-DBA and NSR-DBA ● 9.95328 Gbit/s upstream, 9.95328 Gbit/s downstream ● Type B (single-homing & dual-homing)
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● GE port supports auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA function
WLAN	● IEEE 802.11 b/g/n/ax (2.4GHz) ● IEEE 802.11 a/n/ac/ax (5GHz) ● 2×2 MIMO (2.4GHz&5GHz) ● Antenna gain: 5 dBi ● WMM (Wi-Fi Multi Media) ● Multiple SSIDs ● WPS ● 2.4GHz/5GHzconcurrent ● Air interface rate: 2. 4GHz: 574 Mbit/s; 5GHz: 2402 Mbit/s ● Beamforming ● Band steering ● DL MU-MIMO ● 1024QAM ● 160MHz bandwidth ● WPA3
