Detail:	Huawei OptiXstar EN8010Ts-20, an XGS-PON bridging-type ONT, 1*10GE
Model:	OptiXstar EN8010Ts-20
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei OptiXstar EN8010Ts-20 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users. It provides 4 GE+2 POTS+1 USB+2 WiFi (4 GE ports, 2 POTS ports, 1 USB port, 1 2.4G WiFi port and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar EN8010Ts-20
Dimensions (W x D x H)	32 mm x 105 mm x 110 mm (without pads)
Weight	About 163 g
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100-240 V AC, 50/60 Hz
System Power Supply	12 V DC, 1 A
Static Power Consumption	5 W
Maximum Power Consumption	6 W
NNI	XGS-PON
UNI	1*10GE
Optical Connector	SC/APC
Indicators	Power/PON/LOS/10G LAN

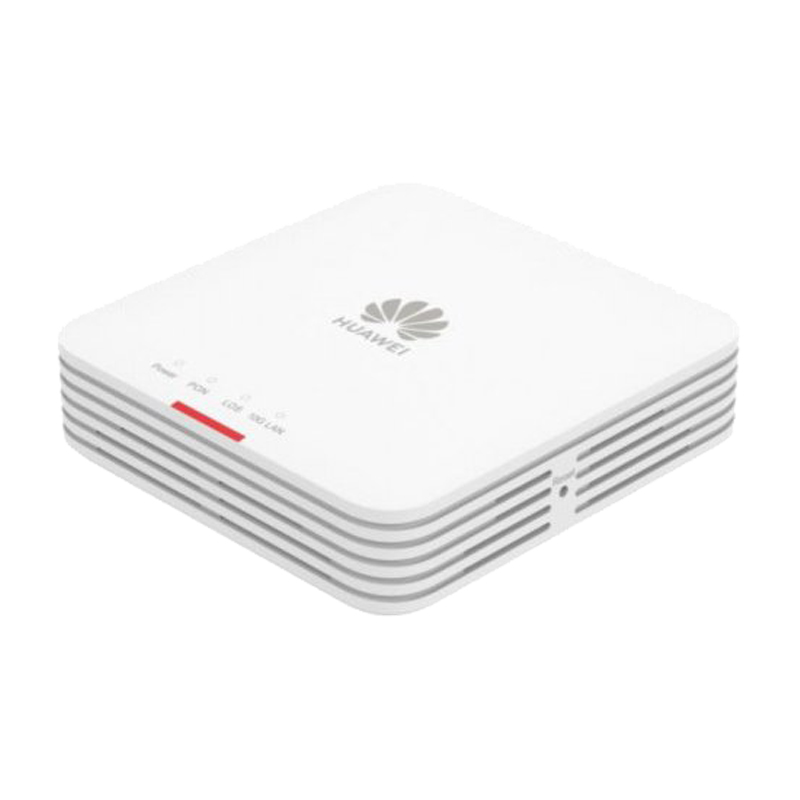

Figure 1 shows the appearance of OptiXstar EN8010Ts-20.

overview-optixstar-en8010ts-20-datasheet

Product Details

Port Parameters

XGS-PON Port

● Class N1/N2/E1

● Receiver sensitivity: -28 dBm

● Wavelengths: US 1260-1280 nm, DS 1575-1580 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● SN/Password/SN+Password/Bi-directional authentication based on OMCI

● Upstream and downstream FEC

● SR-DBA and NSR-DBA

● 9.95328 Gbit/s upstream, 9.95328 Gbit/s downstream

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Auto-adaptive 10000Mbit/s, 5000Mbit/s, 2500Mbit/s, 1000Mbit/s, 100Mbit/s

Function List

Smart O&M	● Variable-length OMCI messages ● Rogue ONT detection and isolation from the OLT ● PPPoE/DHCP simulation testing
Multicast	● IGMP v2/v3 snooping ● MLD v1/v2 snooping ● Fast leave ● VLAN tag translation, transparent transmission, and removal for downstream multicast packets ● IGMP/MLD protocol packet rate limitation
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation ● Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Common O&M	● OMCI/Web UI ● Dual-system software backup and rollback ● 802.1ag Ethernet OAM ● Optical link measurement and diagnosis
Security	● MAC address filtering
Power Saving	● Indicator power saving ● CoC V8

Get More Information

Do you have any question about the OptiXstar EN8010Ts-20?

Specific Data Sheet:

OptiXstar EN8010Ts-20 Specification
Dimensions (W x D x H)	32 mm x 105 mm x 110 mm (without pads)
Weight	About 163 g
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100-240 V AC, 50/60 Hz
System Power Supply	12 V DC, 1 A
Static Power Consumption	5 W
Maximum Power Consumption	6 W
NNI	XGS-PON
UNI	1*10GE
Optical Connector	SC/APC
Indicators	Power/PON/LOS/10G LAN
Memory	128MB Flash, 32MB RAM
XGS-PON Port	● Class N1/N2/E1 ● Receiver sensitivity: -28 dBm ● Wavelengths: US 1260-1280 nm, DS 1575-1580 nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● SN/Password/SN+Password/Bi-directional authentication based on OMCI ● Upstream and downstream FEC ● SR-DBA and NSR-DBA ● 9.95328 Gbit/s upstream, 9.95328 Gbit/s downstream
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Auto-adaptive 10000Mbit/s, 5000Mbit/s, 2500Mbit/s, 1000Mbit/s, 100Mbit/s
