Huawei OptiXstar EG8010Hv6 ONT 1 GE

USD

5 5/5.0 Reviews Q/A 6 Sold/Mon
Detail:	Huawei OptiXstar EG8010Hv6, a bridging-type ONT, 1GE
Model:	OptiXstar EG8010Hv6
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.072	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei EG8010Hv6 is a bridging-type ONT used in the Huawei all-optical access solution. It implements ultra-broadband access through the GPON technology. It provides 1 GE port. The high-performance forwarding capability ensures the service experience of data and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar EG8010Hv6
Dimensions (H x W x D)	26 mm x 69 mm x 83 mm
Weight	About 72 g
Operating Temperature	0°C to 40°C
Operating Humidity	5%–95% RH, non-condensing
Power Supply of The Entire System	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 1 A
Static Power Consumption	2.06 W
Maximum Power Consumption	2.5 W
Network-side Port	GPON
User-side Port	1 GE

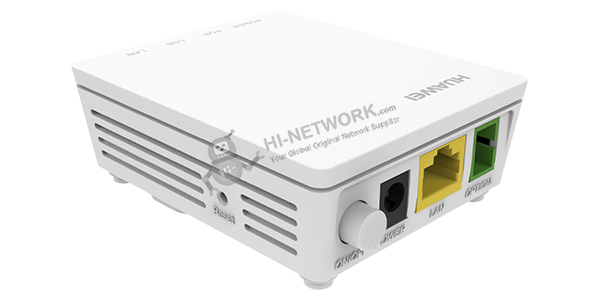

Figure 1 shows the appearance of OptiXstar EG8010Hv6.

overview-optixstar-eg8010hv6-datasheet

Product Details

Interface Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27dBm ~ -29dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

● Type B (single-homing & dual-homing)

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Transparent transmission of IPv6 packets at Layer 2

Product Function

Smart O&M	● Variable-length OMCI messages ● Active/Passive rogue ONT detection and isolation ● PPPoE/DHCP simulation testing
Power Saving	● Indicator power saving ● Power consumption reduction of idle components in powersaving state ● PON power reduction
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation ● Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Security	● MAC address filtering
Common O&M	● OMCI/Web UI ● Dual-system software backup and rollback ● 802.1ag Ethernet OAM ● Optical link measurement and diagnosis ● Loopback check
Multicast	● IGMP v2/v3 snooping ● MLD v1/v2 snooping ● Fast leave ● VLAN tag translation, transparent transmission, and removal for downstream multicast packets ● IGMP/MLD protocol packet rate limitation

Get More Information

Do you have any question about the OptiXstar EG8010Hv6

Specific Data Sheet:

OptiXstar EG8010Hv6 Specification
Dimensions (H x W x D)	26 mm x 69 mm x 83 mm
Weight	About 72 g
Operating Temperature	0°C to 40°C
Operating Humidity	5%–95% RH, non-condensing
Power Supply of The Entire System	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 1 A
Static Power Consumption	2.06 W
Maximum Power Consumption	2.5 W
Network-side Port	GPON
User-side Port	1 GE
Optical Connector	SC/APC
Indicators	POWER/PON/LOS/LAN
GPON Port	● Class B+ ● Receiver sensitivity: -27dBm ~ -29dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA ● Type B (single-homing & dual-homing)
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Transparent transmission of IPv6 packets at Layer 2
