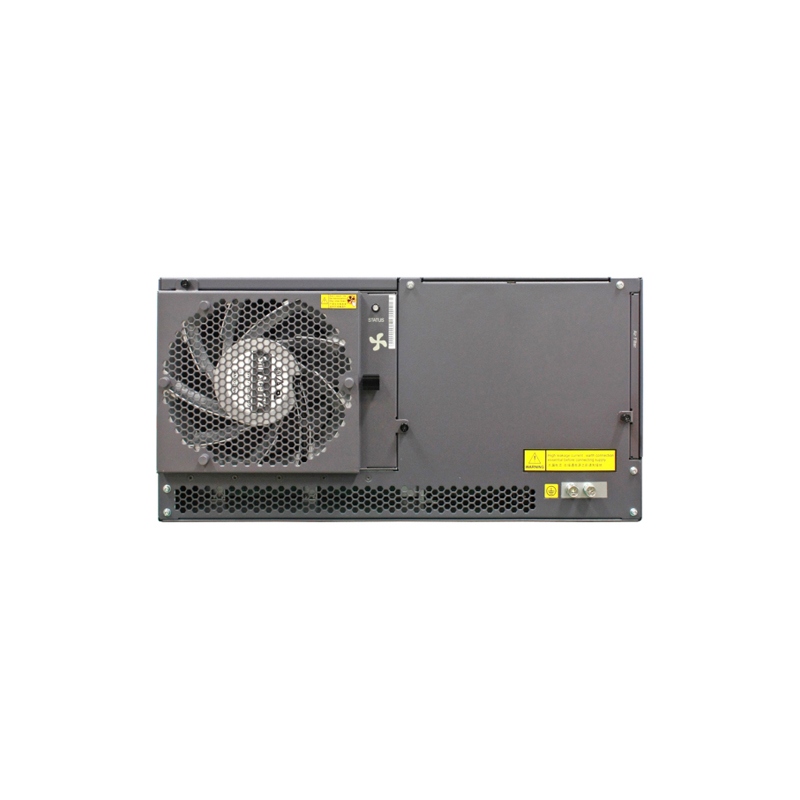

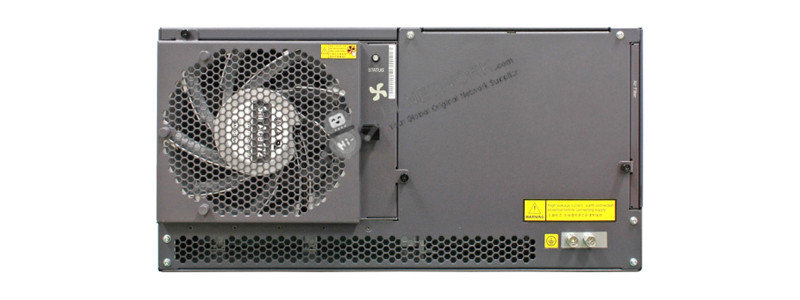

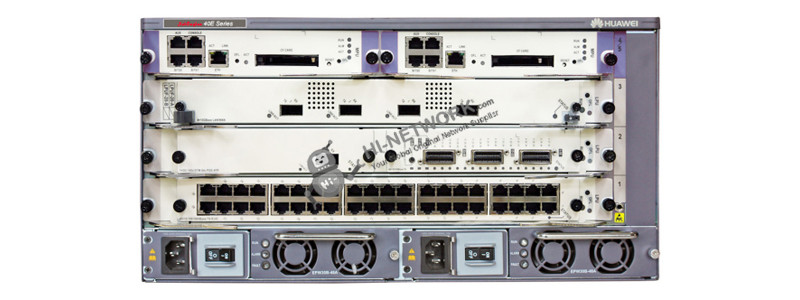

Part Number

02351930

Model

CR5B0BKP0870

First supported version

V800R006C20

Switching Capacity

7.08 Tbps (LPUF-240/LPUI-240)

Forwarding Performance

2800 Mpps (LPUF-240)

Number of Slots

11

Cabinet installation standard

Can be installed in a standard 19″ 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default.

Typical power consumption

3220 W (fully configured with LPUF-240s)

Dimensions (W x D x H)

(14 U) 620 mm x 442 mm x 650 mm (24.41 in. x 17.40 in. x 25.59 in.)(Chassis main body)

(14 U) 620 mm x 442 mm x 770 mm (24.41 in. x 17.40 in. x 30.31 in.)(Dimensions of the chassis body together with cable trays and front and back attachments)

Weight without packaging [kg(lb)]

43.2 kg (95.26 lb)

Weight (in full configuration)

136 kg (299.88 lb)

Typical power consumption (with configuration) [W]

3220 W (fully configured with LPUF-240s)

Maximum power consumption (with configuration) [W]

4490 W (fully loaded with LPUF-240s)

Typical heat dissipation (with configuration) [BTU/hour]

10447 BTU/hour (fully configured with LPUF-240s)

Maximum heat dissipation (with configuration) [BTU/hour]

14567.4 BTU/hour (fully loaded with LPUF-240s)

Power supply mode

DC built-in

Rated input voltage [V]

–48 V/ –60 V

Input voltage range [V]

–38.4 V to –72 V

Maximum input current [A]

70 A/module

Number of service board slots

8

Redundant MPUs

1:1

Redundant Switch fabrics

2+1

Redundant fans

2 assemblies

Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)

Redundant power supply

2+2

Noise at normal temperature (acoustic power) [dB(A)]

NEBS-compliance (< 78 dBA @ 27°C (80.6°F))

Maximum number of power chassis inputs

(1 channel/PEM)*4 PEM=4 channels

Maximum input cable size

35 mm²/channel

Front-end circuit breaker/fuse

70 A

Long-term operating temperature [°C(°F)]

0°C to 45°C (32°F to 113°F)

Short-term operating temperature [°C(°F)]

-5°C to 55°C (23°F to 131°F)

Storage temperature [°C(°F)]

-40°C to 70°C (-40°F to 158°F)

Restriction on the operating temperature variation rate [°C(°F)]

≤ 30°C/hour (86°F/hour)

Long-term operating relative humidity [RH]

5% RH to 85% RH, non-condensing

Short-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Storage relative humidity [RH]

5% RH to 95% RH, non-condensing

Long-term operating altitude [m(ft.)]

≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)

Storage altitude [m(ft.)]

< 5000 m (16404 ft.)

MTBF [year]

21.91

MTTR [hour]

0.5

Availability

0.999997395
