Huawei NetEngine Routers NE40E-X3-AC (02355250)

USD

4.9 4.9/5.0 Reviews Q/A 1 sold/Mon
Detail:	NE40E-X3 Integrated AC Chassis Components, (Including Dual AC Power)
Model:	NE40-X3-AC(CR5B0BKP0370) (02355250)
Condition:	Factory Sealed New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 25.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei NetEngine Routers NE40E-X3-AC(02355250)

NE40E-X3 Integrated AC Chassis Components, (Including Dual AC Power)

Quick Specification:

Product Code	NE40E-X3 AC
Part Number	02355250
Model	CR5B0BKP0370
Switching Capacity	1.08 Tbit/s
Forwarding Performance	360 Mbit/s
Number of Slots	5 slots (for 3 LPUs and 2 MPUs)
Dimensions (H x W x D) mm	442 mm x 650 mm x 220 mm (AC, 5U)
Weight in Full Configuration	52 kg (AC)

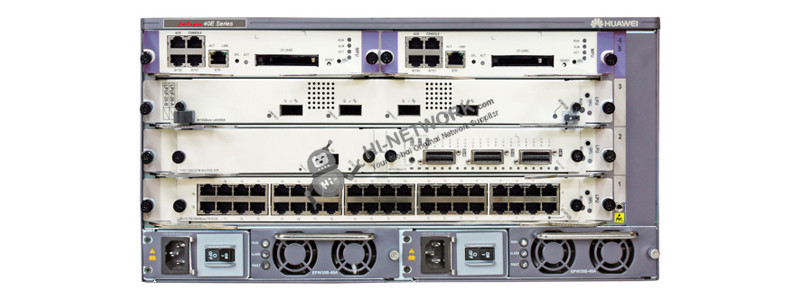

The Front Panel:

ne40e-x3-ac-front-datasheet

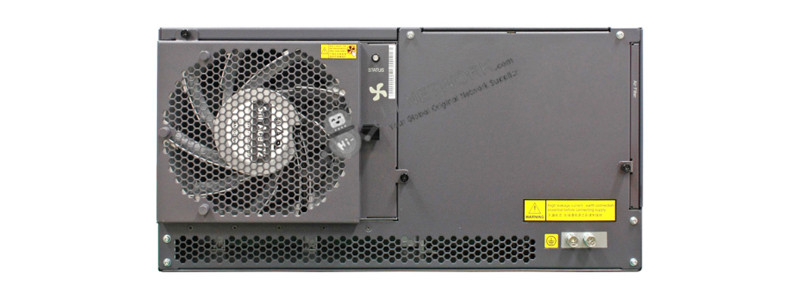

The Back Panel:

ne40e-x3-ac-back-datasheet

The Accessories for NE40E-X3-AC

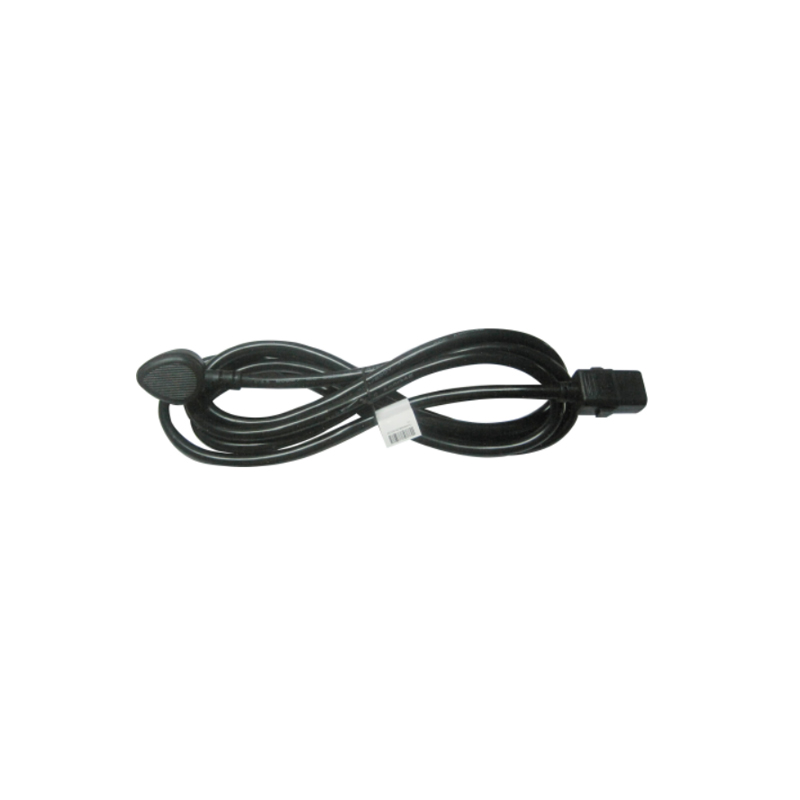

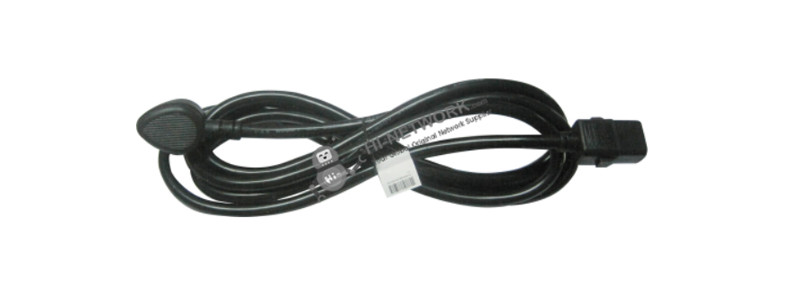

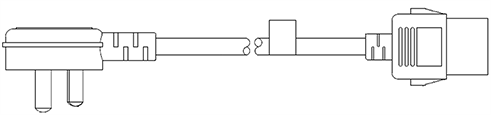

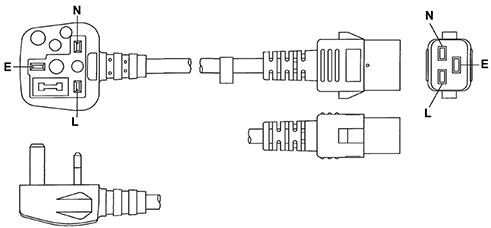

NE40-X3 AC-input Power Cables:

ne40e-x3-ac-ac power-datasheet

Huawei BOM Number	Description	Structure
04043396	Power Cords Cable,China AC Power 250V16A,3.0m,PIAM,227IEC53-2.5^2(3C),C19SF,Black
04044597	Power cord,BS546 250V16A,3.0m,PDAM,H05VV-F-1.5mm^2(3C),C19SF,250V,16A,Black
04044598	Power Cords Cable,Europe AC Power 250V16A,3.0m,PFAM,H05VVF-1.5^2(3C),C19SF,Black
04044600	Power Cable,Japan AC Power Cable 125V20A,3.0m,PMAM,HVCTF-3.5mm^2(3C),C19SF,Black

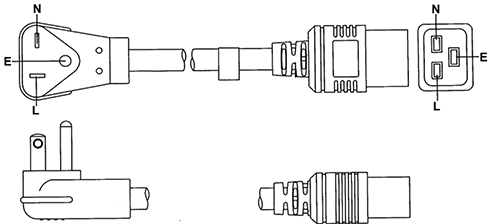

04044603	Power Cords Cable,North America AC Power 125V20A,3.0m,PMAM,12SJT(3C),C19SF,Black

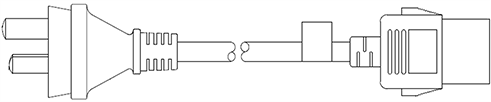

04045184	Power Cords Cable,Australia AC Power 250V16A,3.0m,PISM,H05VVF-2.5^2(3C),C19SF,Black
04050850	Power Cords Cable,Britain AC Power Cable,250V13A,3.0m,PG AM,H05VV-F-1.5mm^2(3C),C19 SF,Black

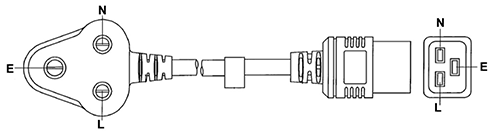

04051074	Power cord,India AC Power 250V 16A,3m,PD-III AM,IS 694-1.5mm^2(3C),C19SF,250V,16A,Black

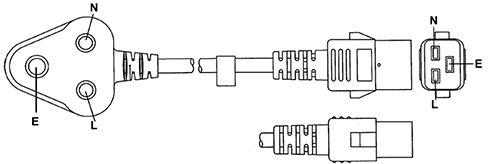

04051079	Power cord,South Africa AC Power 250V16A,3m,PD-I AM,H05VV-F-1.5mm^2(3C),C19SF,250V,16A,Black

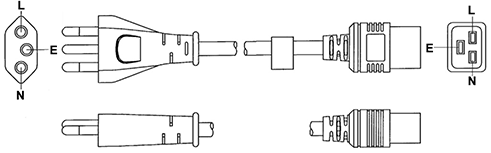

04150259	Power Cords Cable,Brazil AC Power 250V16A,3.0m,PJSM-I ,H05VVF-1.5^2(3C),C19SF,Black

Get More Information

Do you have any question about the NE40-X3 AC 02355250?

Specific Data Sheet:

Product Name	NE40-X3-AC
Part Number	02355250
Model	CR5B0BKP0370
First supported version	V800R007C00
Switching Capacity	1.08 Tbit/s
Forwarding Performance	360 Mbit/s
Number of Slots	5 slots (for 3 LPUs and 2 MPUs)
Interface Types	100 GE/40 GE 10 GE- LAN/WAN GE/FE OC-192c/STM-64c POS OC-48c/STM-16c POS OC-12c/STM-4c POS OC-3c/STM-1cPOS Channelized OC-3/STM-1 Channelized STM-4 OC-3c/STM-1c ATM OC-12c/STM-4c ATM E3/T3 CE1/CT1
IPv4	Support for static routing as well as dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4 Line rate forwarding on all interfaces in complex routing environments, for example, when route flapping occurs
IPv6	Various IPv4-to-IPv6 transition technologies: manual tunnel, automatic tunnel, 6to4 tunnel, GRE tunnel, and ISATAP tunnel IPv4 over IPv6 tunnel and IPv6 Provider Edge (6PE) IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing Internet Control Message Protocol Version 6 (ICMPv6), Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB L2NAT, NAT444, DS-Lite, and NAT64
MPLS	MPLS TE and MPLS/BGP VPN, in compliance with RFC 2547 Inter-AS VPN Option A/B/C Integration with Internet services Martini and Kompella MPLS L2VPN L2VPN techniques, such as VPLS and VLL IP interworking over heterogeneous media Multicast VPN MPLS-TP, EVPN, Remote LFA
Layer 2 Features	IEEE 802.1Q, IEEE802.1ad, IEEE 802.1D, IEEE 802.1w, and IEEE 802.1s VLAN aggregation (super VLAN) Filtering list based on MAC addresses and ports 1483B
Reliability	IP/LDP/VPN/TE/VLL FRR Protection mechanisms such as IP/TE auto rerouting, IGP/BGP/multicast route convergence, VRRP, RRPP, IP-Trunk load balancing and backup, BFD, MPLS/Ethernet OAM, Y.1731, and routing protocol/port/VLAN damping PW redundancy, E-Trunk, E-APS, and E-STP In-service patching for smooth software upgrade Passive backplane design Redundancy backup for key components, such as route processing modules, SFUs, and power modules to guard against single points of failure Switching between components that hot-back up each other GR, NSF, NSR, and ISSU Hot swap of all components
QoS	Well-designed HQoS and advanced scheduling and congestion avoidance technologies on each LPU Accurate traffic policing and traffic shaping Complex rule definition and fine-grained flow identification MPLS H-QoS, ensuring QoS for MPLS VPN, VLL, and PWE3 services 8CT that combines MPLS TE and the DiffServ model TE-tunnel-oriented QoS
OAM	Y.1731, IP FPM, RFC 2544, MPLS OAM, 802.1ag, and 802.3ah, OPS
Multicast	IGMPv1, IGMPv2, and IGMPv3 Multicast routing protocols, including PIM-DM, PIM-SM, PIM-SSM, Multicast Source Discovery Protocol (MSDP), and Multiprotocol BGP (MBGP) Static multicast Multicast CAC Interoperability between multicast protocols Processing of multicast policies based on multicast routing protocols and multicast forwarding Multicast QoS and multicast replication for IPoE access users Two-level multicast replication on the SFUs and LPUs to optimize the multicast effect
Security	ACL-based packet filtering URPF GTSM DHCP snooping ARP attack defense and DoS attack defense MAC address limit and MAC-IP binding Secure Shell (SSH) and SSH version 2 (SSH v2) BGP-Flowspec RIPv2, OSPF, IS-IS, and BGP MD5, SHA256, Keychain
Value-added Services	IPsec tunnel Distributed GRE tunnel Distributed NetStream High-precision NAT: CGN
Environment Requirements	Long-term operating temperature: 0°C to 45°C Short-term operating temperature: -5°C to 55°C Long-term operating humidity: 5% RH to 85% RH Short-term operating humidity: 0% RH to 100% RH Operating altitude: ≤ 3,000 meters
Dimensions (W x D x H)	442 mm x 650 mm x 220 mm (AC, 5U)
Power Consumption (in full configuration)	1,070W (AC)
Weight without packaging [kg(lb)]	25 kg (55.12 lb)
Weight (in full configuration)	52 kg (AC) (114.64 lb)
Typical power consumption (with configuration) [W]	950 W (fully configured with LPUF-51s) 1070 W (fully configured with LPUF-120s) 1386 W (fully configured with LPUF-241s)
Maximum power consumption (with configuration) [W]	1130 W (fully loaded with LPUF-51s) 1260 W (fully loaded with LPUF-120s) 1669 W (fully loaded with LPUF-241s)
Typical heat dissipation (with configuration) [BTU/hour]	3082.2 BTU/hour (fully configured with LPUF-51s) 3471.5 BTU/hour (fully configured with LPUF-120s) 4496.8 BTU/hour (fully configured with LPUF-241s)
Maximum heat dissipation (with configuration) [BTU/hour]	3666.2 BTU/hour (fully loaded with LPUF-51s) 4088 BTU/hour (fully loaded with LPUF-120s) 5414.9 BTU/hour (fully loaded with LPUF-241s)
Power supply mode	AC built-in
Rated input voltage [V]	200 V to 240 V
Input voltage range [V]	180 V to 264 V
Maximum input current [A]	12A/single-module
Number of service board slots	3
Number of slots	5
Redundant MPUs	1:1
Redundant fans	Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Redundant power supply	1+1
Noise at normal temperature (acoustic power) [dB(A)]	ETSI-compliance (<72dBA @ 23°C (73.4°F))
Maximum number of power chassis inputs	(1 channel/PEM)*2 PEM=2 channels
Maximum input cable size	Standard C19 cable
Front-end circuit breaker/fuse	16 A
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)]	-5°C to 55°C (23°F to 131°F)
Storage temperature [°C(°F)]	-40°C to 70°C (-40°F to 158°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 30°C/hour (86°F/hour)
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)
Storage altitude [m(ft.)]	< 5000 m (16404 ft.)
MTBF [year]	27.44
MTTR [hour]	0.5
Availability	0.99999792
