Huawei Interface Card EH1D2S08SX1E (03030RPM) for S9703/S9706/S9712

USD

4.6 4.6/5.0 Reviews Q/A 3 Sold/Mon
Detail:	8-Port 10GBASE-X and 8-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card (X1E, RJ45/SFP/SFP+)
Model:	EH1D2S08SX1E (03030RPM)
Condition:	Factory Sealed New
Related:	Huawei Main Control Unit EH1D2SRUC000 (03021UWG) for S9706/S9712 Huawei Interface Card EH1D2S24XEC0 (03030NXN) for S9703/S9706/S9712 Huawei Interface Card EH1D2S24XEA0 (03030NXA) for S9703/S9706/S9712
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 7.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei Interface Card EH1D2S08SX1E (03030RPM) for S9703/S9706/S9712

The EH1D2S08SX1E provides eight 10GBASE-X ports and eight 10/100/1000M combo ports for data access and line-rate switching. It performs concurrent data forwarding using a distributed data plane.

Quick Specification

Table 1 shows the quick specification.

Model	EH1D2S08SX1E
Part Number	03030RPM
Description	8-port 10GBASE-X and 8-port 100/1000BASE-X and 8-port 10/100/1000BASE-T combo interface card (X1E, RJ45/SFP/SFP+)
Level-1 category	Interface Card
Dimensions (H x W x D) [mm(in.)]	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight [kg(lb)]	2.84 kg (6.26 lb)
Maximum power consumption [W]	130 W
Environmental Parameters	Operating temperature: 0°C to 45°C (32°F to 113°F) Operating relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage relative humidity: 5% RH to 95% RH (noncondensing)

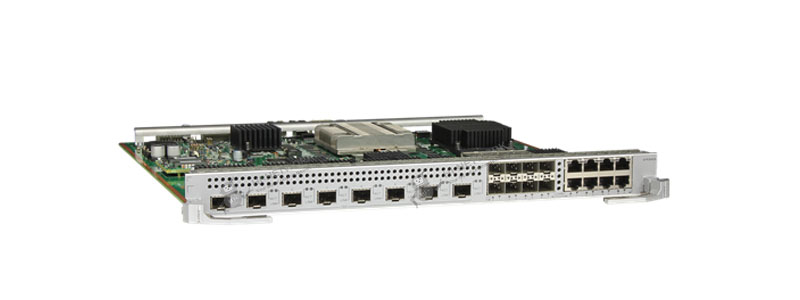

Figure 1 shows the appearance.

huawei-eh1d2s08sx1e-main-datasheet

Get More Information

Do you have any question about the EH1D2S08SX1E (03030RPM)?

Specific Data Sheet:

EH1D2S08SX1E Specification
Basic Information
EH1D2S08SX1E	EH1D2S08SX1E
Part Number	03030RPM
Description	8-port 10GBASE-X and 8-port 100/1000BASE-X and 8-port 10/100/1000BASE-T combo interface card (X1E, RJ45/SFP/SFP+)
Level-1 category	Interface Card
Technical Specifications
Dimensions (H x W x D) [mm(in.)]	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight [kg(lb)]	2.84 kg (6.26 lb)
Maximum power consumption [W]	130 W
Environmental Parameters	Operating temperature: 0°C to 45°C (32°F to 113°F) Operating relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage relative humidity: 5% RH to 95% RH (noncondensing)
