Detail: | Huawei H901MPSA Main Control Board for MA5800-X2 OLT |
Model: | H901MPSA |
Condition: | Factory Sealed New |
Related: | |
Warranty: |
![]() ![]() ![]() |
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
3.5
|
2-7 Days
US$
|
Payment: |
More
|

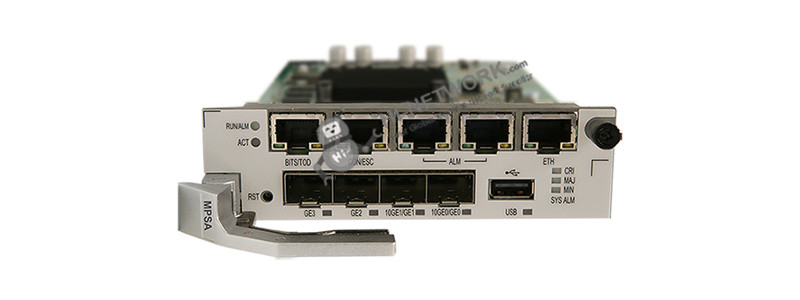

H901MPSA is a main control card of Huawei SmartAX MA5800-X2 NG OLT; it is the core of system control and service switching and aggregation. MAX access 4096 subscribers, and supports 32768 ARP table.
Model | H901MPSA |
Bandwidth per slot | 40Gbit/s (load sharing mode) |
MAC address table | 262143 |
Access ONT | 4096 |
Multicast user | 4096 |
IPv4 routing table | 65536 |
IPv6 routing table | 16384 |
Do you have any question about the H901MPSA?
Contact us now via [email protected].
Specific Data Sheet:
Model | H901MPSA |
Bandwidth per slot | 40Gbit/s (load sharing mode) |
MAC address table | 262143 |
Access ONT | 4096 |
Multicast user | 4096 |
IPv4 routing table | 65536 |
IPv6 routing table | 16384 |
Service port | 32768 |
ND table | 16384 |
ARP table | 32768 |
Maximum Frame Size | 2052 bytes |
Environment | |
Operating Temperature | -40°C to +65°C |
Energy consumption | Static: 30W |
Mechanical Specification | |
Dimensions (mm) | 35.28 (W)x 258.15 (D) x 130.36 (H) |
Weight (kg) | 0.99 |
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
