Detail:	Huawei SmartAX MA5800 H901CSHF 16-port XGS-PON and GPON Combo OLT interface board
Model:	H901CSHF
Condition:	Factory Sealed New
Related:
Warranty:	1-Year Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 3.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

Huawei SmartAX MA5800 H901CSHF 16-port XGS-PON and GPON Combo OLT interface board

Quick Specification

Model	H901CSHF
Port	16
Forwarding capability	200 Gbit/s
Rate mode	Asymmetric rate Symmetric rate
T-CONTs per PON port	GPON:1024 XG(S)-PON:2048
Service flows per PON board	16352
Maximum frame size	2052 bytes 9216 bytes(jumbo frame enabled)
Maximum number of MAC addresses	131072

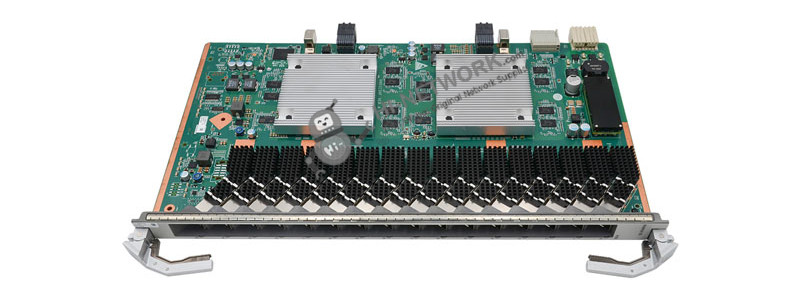

Appearance:

h901cshf-datasheet

Get more information

Do you have any question about the H901CSHF?

Specific Data Sheet:

Model	H901CSHF
Service ports
Port	16
Forwarding capability	200 Gbit/s
Rate mode	Asymmetric rate Symmetric rate
T-CONTs per PON port	GPON:1024 XG(S)-PON:2048
Service flows per PON board	16352
Maximum frame size	2052 bytes 9216 bytes(jumbo frame enabled)
Maximum number of MAC addresses	131072
Maximum distance difference between two ONUS under the same pon port	40km
FEC	Bidirection
CAR group	Supported
Variable-length OMCI	Supported
HQoS	Supported
ONU-based shaping or queue-based shaping	Supported
Type B protection(dual-homing)	Supported
Type B protection(single-homing)	Supported
Type C protection(dual-homing)	Supported(applicable to GPON channels)
Type C protection(single-homing)	Supported(applicable to GPON channels)
1588v2	Not supported
Rogue ONT detection and isolation	Supported
Automatic shutdown at high temperature	Supported
Energy saving for service boards	Supported
D-CCAP	Not supported
GPON SFP Module Specification
Type	B+ Module: One-fiber bidirectional optical module, class B+ C+ Module: One-fiber bidirectional optical module, class C+
Operating Wavelength	B+/C+ Module: GPON channel: Tx: 1490 nm Rx: 1310 nm XGS-PON channel: Tx: 1577 nm Rx: 1270 nm
Encapsulation Type	SFP+
Port Rate	B+/C+ Module: GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XGS-PON channel: Tx: 9.953 Gbit/s Rx: 9.953/2.488 Gbit/s
Minimun Output Optical Power	B+ Module: GPON channel: 1.5 dBm XGS-PON channel: 1 dBm C+ Module: GPON channel: 3 dBm XGS-PON channel: 5 dBm
Maximum Output Optical Power	B+ Module: GPON channel: 5 dBm XGS-PON channel: 4 dBm C+ Module: GPON channel: 7 dBm XGS-PON channel: 8 dBm
Maximum Receiver Sensitivity	B+ Module: GPON channel: -28 dBm XG-PON channel: -26.5 dBm XGS-PON channel: -25 dBm C+ Module: GPON channel: -32 dBm XG-PON channel: -30.5 dBm XGS-PON channel: -29 dBm
Optical Connector Type	SC
Optical Fiber Type	Single-mode
Overload Optical Power	B+ Module: GPON channel: -8 dBm XG-PON channel: -6 dBm XGS-PON channel: -4 dBm C+ Module: GPON channel: -12 dBm XG-PON channel: -10 dBm XGS-PON channel: -8 dBm
Extinction Ratio	8.2 dB
Dimensions (W x D x H)	23.3 mm x 257.90 mm x 399.20 mm
Power Consumption	Static: 51 W Maximum: 99 W
Operating temperature	-40°C to +55°C
