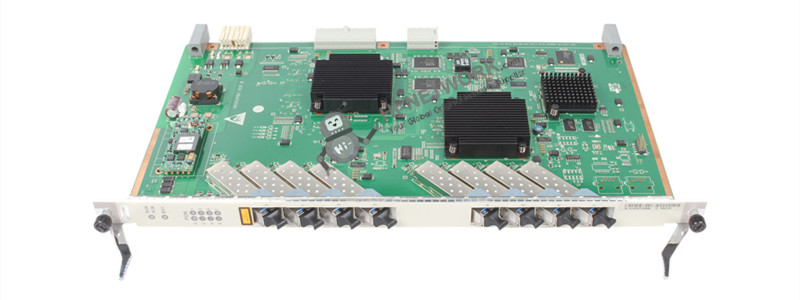

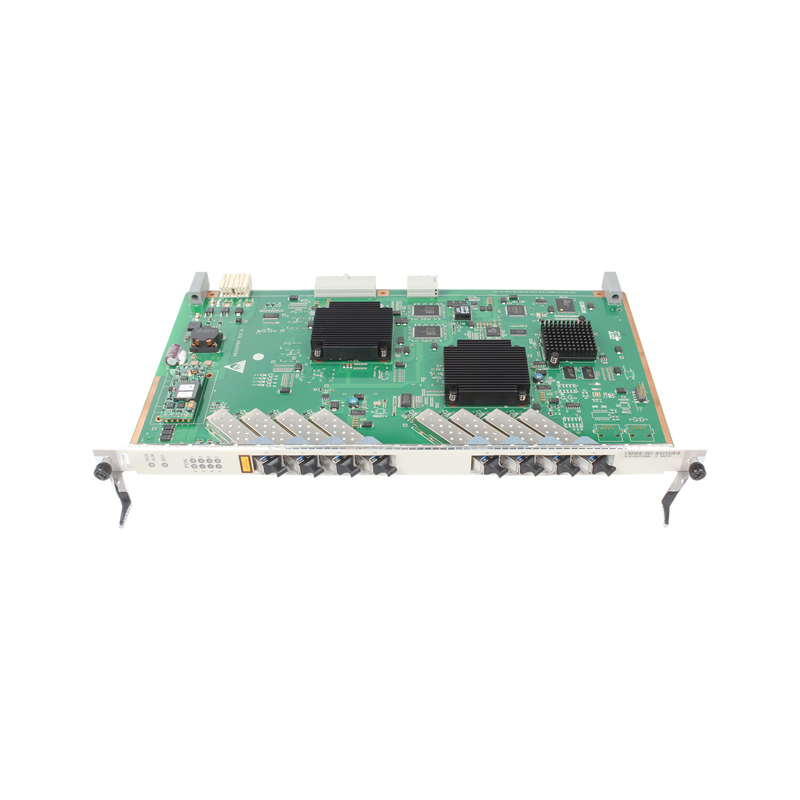

Detail: | Huawei GPBH 8-port Interface Board GPON OLT MA5608T/MA5683T |
Model: | H806GPBH |
Condition: | Factory Sealed New |
Related: | |
Warranty: |
1-Year Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
4
|
2-7 Days
US$
|
Payment: |
More
|
H806GPBH is an 8-port GPON OLT Interface Board, which works with the ONU to provide GPON access service.
Model | H806GPBH |
Forwarding capability | 20 Gbit/s |
T-CONTs per PON port | 1024 |
Service flows per PON board | 8184 |
Maximum frame size | 2004 bytes |
MAC addresses | 16384 |
Maximum distance difference between two ONUs under the same PON port | 40 km from V800R013 |
H806GPBH provides these benefits:
· High-precision clock and time synchronization: 50-ppb frequency synchronization and 100-ns phase synchronization
· High reliability
- Chip-level type B protection switching, shortening the switching time to less than 50 ms
- Type C protection dual-homing, providing geography-level disaster recovery
- Real-time rogue ONU detection and isolation, ensuring stable service running
· Easy OAM
- Variable-length OMCI, improving upgrade efficiency and reducing break off time
- A maximum distance difference of 40 km between two ONUs under the same PON port, simplifying network planning
- 1:64 eOTDR, supporting accurate fault demarcation and quick fault locating
H806GPBH provides these external interfaces:
8 GPON ports with SFP optical modules:
· Max. split radio:
- Class B+: 1:64
- Class C+/C++: 1:128
Model | H806GPBH | H807GPBH |
Forwarding capability | 20 Gbit/s | 20 Gbit/s |
T-CONTs per PON port | 1024 | 1024 |
Service flows per PON board | 8184 | 8184 |
Maximum frame size | 2004 bytes | 2004 bytes |
4-level HQoS | Not supported | Supported |
Do you have any question about the H806GPBH?
Contact us now via [email protected].
Specific Data Sheet:
Model | H806GPBH |
Forwarding capability | 20 Gbit/s |
T-CONTs per PON port | 1024 |
Service flows per PON board | 8184 |
Maximum frame size | 2004 bytes |
MAC addresses | 16384 |
Maximum distance difference between two ONUs under the same PON port | 40 km from V800R013 |
N:1/1:1 VMAC | Supported |
FEC | Bidirection |
CAR group | Supported |
IPv6 | Supported |
4-level HQoS | Not supported |
Variable-length OMCI | Supported from V800R013 |
ONU-based shaping or queue-based shaping | Supported |
Load sharing | Supported |
High-precision clock time synchronization | Supported |
Type B/Type C protection | Supported |
Rogue ONU detection and isolation | Supported |
Automatic shutdown at high temperature | Supported |
Automatic shutdown of an idle port | Supported |
1:64 eOTDR | Supported (used together with the reflector) |
Environment | |
Operating temperature | -40° C to +65° C |
Power consumption | Static: 32 W Maximum: 46 W |
