Detail:	Huawei SmartAX MA5600T 4-port XG-PON OLT Interface Board
Model:	H802XGBC
Condition:	Factory Sealed New
Related:
Warranty:	1-Year Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 2.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

H802XGBC is a 4-port 10G GPON OLT Interface Board, which works with the ONU to provide 10G GPON access service.

Quick Specification

Model	H802XGBC
Port Rate	Tx: 9.95 Gbit/s Rx: 2.49 Gbit/s
Forwarding capability	40 Gbit/s
T-CONTs per PON port	2048
Service flows per PON board	8184
Maximum frame size	2004 bytes
MAC addresses	4096
Maximum distance difference between two ONUs under the same PON port	40 km from V800R013

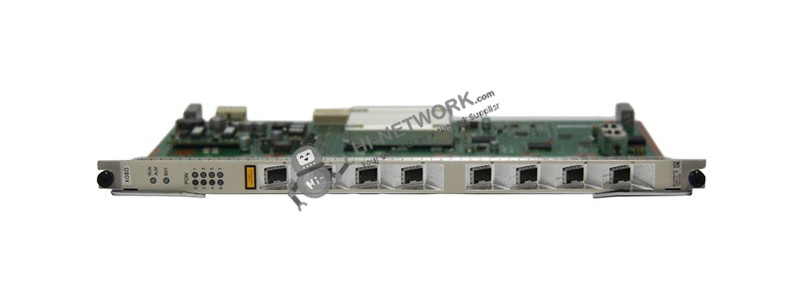

Appearance:

h802xgbc-datasheet

Product Details:

H802XGBC provides these benefits:
· High reliability
- Real-time rogue ONU detection and isolation, ensuring stable service running
· Easy OAM
- Variable-length OMCI, improving upgrade efficiency and reducing break off time
- A maximum distance difference of 40 km between two ONUs under the same PON port, simplifying network planning.

H802XGBC provides these external interfaces:
4 * 10G GPON ports with XFP optical modules:
· Max. split radio: 1:128

Compare to Similar Items:

Product Code	H806GPBH	H802XGBC
Forwarding capability	20 Gbit/s	40 Gbit/s
T-CONTs per PON port	1024	2048
Service flows per PON board	8184	8184
Maximum frame size	2004 bytes	2004 bytes

Get more information

Do you have any question about the H802XGBC?

Specific Data Sheet:

Model	H802XGBC
Port Rate	Tx: 9.95 Gbit/s Rx: 2.49 Gbit/s
Forwarding capability	40 Gbit/s
T-CONTs per PON port	2048
Service flows per PON board	8184
Maximum frame size	2004 bytes
MAC addresses	4096
Maximum distance difference between two ONUs under the same PON port	40 km from V800R013
N:1/1:1 VMAC	Supported
FEC	Bidirection
CAR group	Supported
IPv6	Supported
4-level HQoS (Port/ONU/Queue/Merge-queue)	Not supported
Variable-length OMCI	Supported
ONU-based shaping or queue-based shaping	Supported
Load sharing	Supported
Type B protection	Not supported
Rogue ONU detection and isolation	Supported
Automatic shutdown at high temperature	Supported
Automatic shutdown of an idle port	Supported
Environment
Operating temperature	-40° C to +65° C
Power consumption	Static: 67 W Maximum: 85 W
