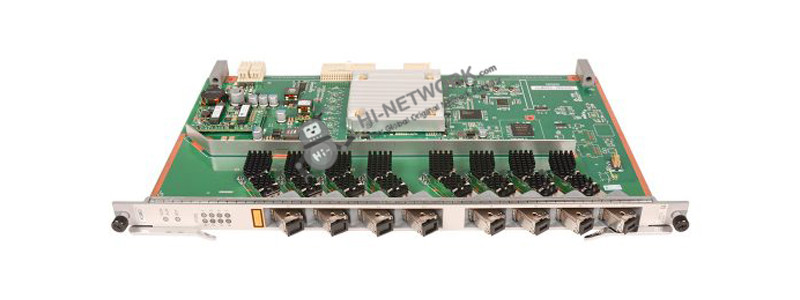

| Detail: | Huawei SmartAX MA5600T 8-port XG-PON OLT Interface board |
| Model: | H801XGBD |
| Condition: | Factory Sealed New |
| Related: | |
| Warranty: |
1-Year Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
2.5
|
2-7 Days
US$
|
| Payment: |
More
|
8 ports 10G GPON OLT Interface board.
Model | H801XGBD |
Description | 16 ports GPON OLT Interface Board |
Discount Category | PON Board |
Product Line | Networking |
Sub Product Family | FTTx and Cable |
Product Series | MA5600T(F01D2000) |
UOM | PCS |
Net Dimension(D*W*H mm) | 237*22*395 |
Typic Power(W) | 38 |
Product Code | H801XGBD | H802OPGE |
Part Number | 03022MLQ | 03022DTJ |
Description | 8 ports 10G GPON OLT Interface board | 48-port GE/FE Optical Interface Board-Support 1588v2/SyncE-Used for Ethernet Aggregation, P2P Enterprise Access and Mobile Backhual |
Discount Category | PON Board | Broadband Board |
Product Series | MA5600T(F01D2000) | MA5608T(F01S200) |
Typic Power(W) | 38 | 71.5 |
Do you have any question about the H801XGBD?
Contact us now via [email protected].
Specific Data Sheet:
Model | H801XGBD |
Port Rate | Tx: 9.95 Gbit/s |
Forwarding capability | 40 Gbit/s |
T-CONTs per PON port | 2048 |
Service flows per PON board | 16368 |
Maximum frame size | 2004 bytes |
MAC addresses | 8192 |
Maximum distance difference between two ONUs under the same PON port | 40 km from V800R013 |
N:1/1:1 VMAC | Supported |
FEC | Bidirection |
CAR group | Supported |
IPv6 | Supported |
4-level HQoS (Port/ONU/Queue/Merge-queue) | Supported |
Variable-length OMCI | Supported |
ONU-based shaping or queue-based shaping | Supported |
Load sharing | Supported |
Type B protection | Supported |
Rogue ONU detection and isolation | Supported |
Automatic shutdown at high temperature | Supported |
Automatic shutdown of an idle port | Supported |
Environment | |
Operating temperature | -40° C to +65° C |
Power consumption | Static: 26 W Maximum: 50 W |
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
