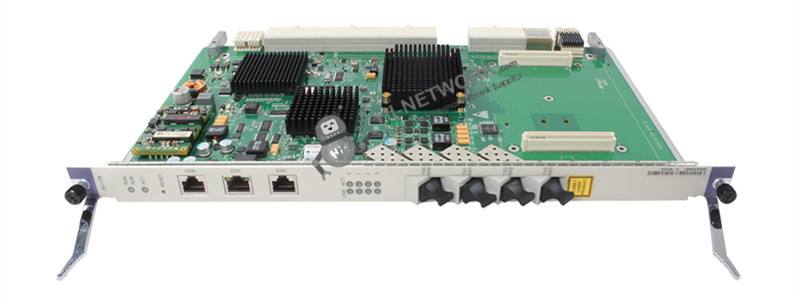

| Detail: | Huawei SmartAX MA5600T Super Control Unit Board |
| Model: | H801SCUN |
| Condition: | Factory Sealed New |
| Related: | |
| Warranty: |
1-Year Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
2.5
|
2-7 Days
US$
|
| Payment: |
More
|
The H801SCUN board is a super control unit board. It is the core of the system control and service switching and aggregation. The H801SCUN board can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband GE/10GE channel. In this manner, the H801SCUN board configures, manages, and controls the device, and also implements the simple route protocol functions.
Model | H801SCUN |
Access Service | Optical and copper |
Daughter Board | H801FLBA H801CKMC H801CKMD H801M2XA |
Load sharing | Yes (supported in V800R011C00 and later versions) |
Ethernet synchronization | No |
Temperature querying and high temperature alarming | Yes |
Built-in 2GB CF card | No |
Centric Management for GE Remote Extended Subracks | Yes |
D-CCAP | No |
All MA5600T SCU boards support the functions as below:
- System control and management unit
- Active/standby switchover
- Local and remote maintenance through maintenance serial port CON or maintenance Ethernet port ETH
- Environmental monitoring through environment monitoring serial port ESC
Board | H801SCUN | H801SCUB |
Access Service | Optical and copper | Copper |
Daughter Board | H801FLBA H801CKMC H801CKMD H801M2XA | H801FLBA H801CKMC H801CKMD |
Load sharing | Yes (supported in V800R011C00 and later versions) | No |
Ethernet synchronization | No | No |
Temperature querying and high temperature alarming | Yes | Yes |
Built-in 2GB CF card | No | No |
Centric Management for GE Remote Extended Subracks | Yes | No |
Do you have any question about the H801SCUN?
Contact us now via [email protected].
Specific Data Sheet:
Model | H801SCUN |
Access Service | Optical and copper |
Daughter Board | H801FLBA H801CKMC H801CKMD H801M2XA |
Load sharing | Yes (supported in V800R011C00 and later versions) |
Ethernet synchronization | No |
Temperature querying and high temperature alarming | Yes |
Built-in 2GB CF card | No |
Centric Management for GE Remote Extended Subracks | Yes |
D-CCAP | No |
Panel ports | 4 GE ports |
Internal interfaces | |
Channel to the service board | 16 GE/10GE channels |
Channel to the GIU board | Providing two GE/10GE channels for each upstream boards |
Channel to the standby control board | Providing two 10GE channels for load sharing with the standby H801SCUN board (supported in V800R011C00 and later versions) |
