Huawei EchoLife HN8255Ws XGS-PON ONT 2 POTS 4 GE 1 10GE 2 USB Wi-Fi

183
5
5/5.0
Q/A
6 Sold/Mon
Detail: Huawei EchoLife HN8255Ws, intelligent XGS-PON routing-type ONT, XGS-PON (SFP+ Optical Module), 2 x POTS + 4 x GE + 1 x 10GE +2.4G&5G Wi-Fi + 2 x USB
Model: EchoLife HN8255Ws
Condition: Factory Sealed New
Related:
Warranty:
3-Years Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.92
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


The Huawei EchoLife HG8110H is a bridging-type ONT used in the Huawei all-optical access solution. It implements ultra-broadband access through the GPON technology.

It provides 1 GE port and 1 POTS port. The high-performance forwarding capability ensures the service experience of voice, data and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.


Quick Specification


Table 1 shows the Quick Specification.

Model

EchoLife HN8255Ws

Dimensions (W x D x H)

82.5 mm x 305 mm x 198 mm (without external antenna and pads)

Weight

About 920g

Operating Temperature

0ºC to +40ºC

Operating Humidity

5% to 95% RH (non-condensing)

Power Adapter Input

100-240V AC, 50/60 Hz

System Power Supply

11-14 V DC, 4 A

Static Power Consumption

9.8 W

Maximum Power Consumption

22 W

Network-Side Port

XGS-PON (SFP+ Optical Module)

User-Side Port

4 GE+1 10GE+2 POTS+1 USB2.0+1 USB3.0+2.4G&5G Wi-Fi 5

Indicators

Power/PON/LOS/TEL1-TEL2/10G LAN/LAN1-LAN4/WLAN/WPS/USB

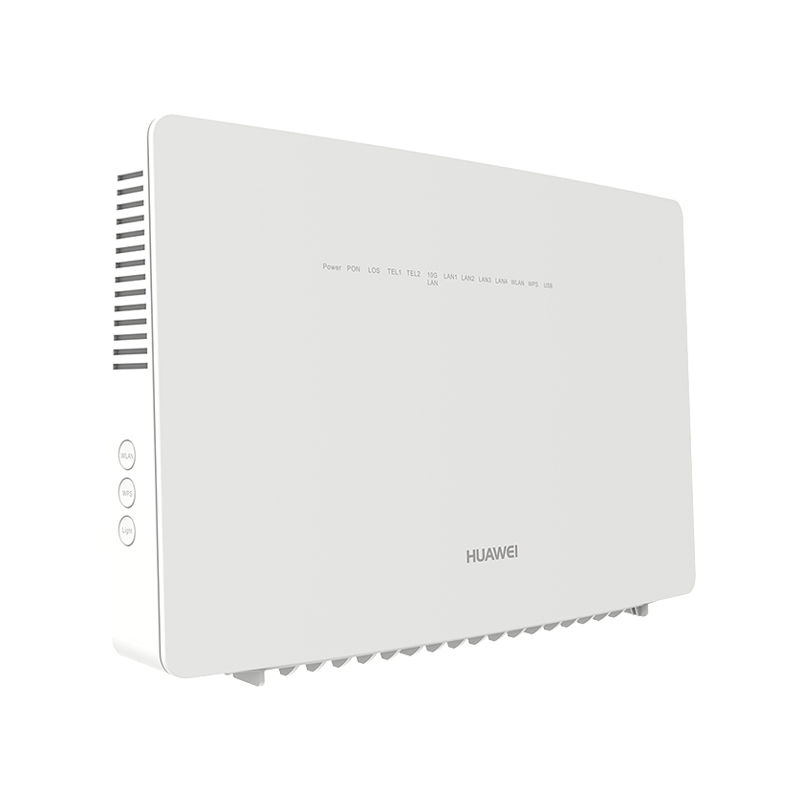

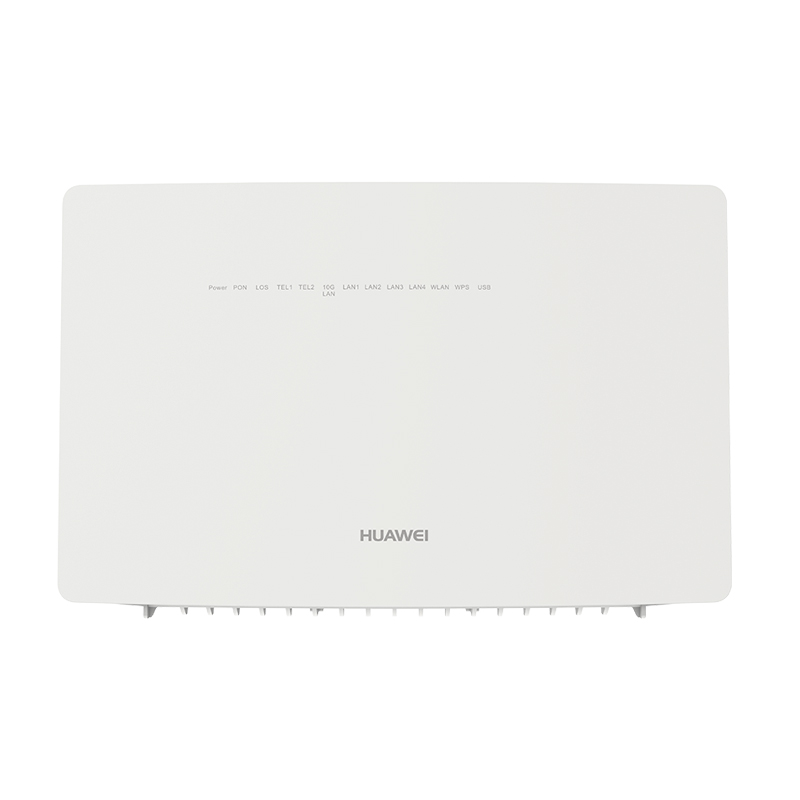

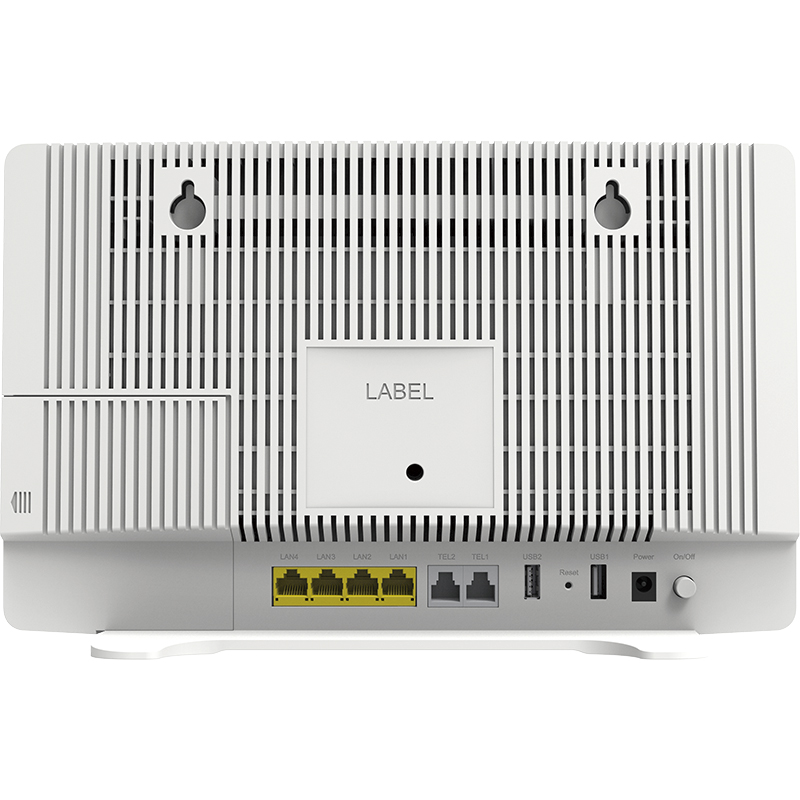

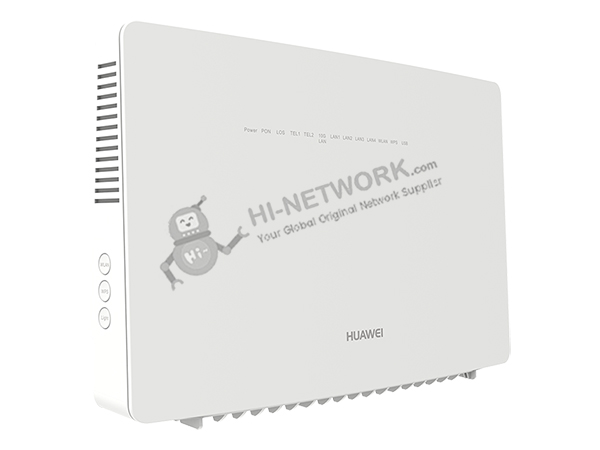

Figure 1 shows the appearance of EchoLife HN8255Ws.

overview-echolife-hn8255ws-datasheet


Product Details


Port Parameters

XGS-PON Port

● Class N1/N2

● Receiver sensitivity: -28 dBm

● Wavelengths: US 1260-1280 nm, DS 1575-1580 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● SN/Password/SN+Password/Bi-directional authentication based on OMCI

● upstream and downstream FEC

● SR-DBA and NSR-DBA

● 10 Gbit/s upstream, 10 Gbit/s downstream

Ethernet Port

● 4 x GE + 1 x 10GE

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limitation on the number of learned MAC addresses

● MAC address learning

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

USB Port

● USB2.0

● USB3.0

● FTP-based network storage

● File/Print sharing based on SAMBA

● DLNA DMS/UPnP AV (media server)

WLAN

● IEEE 802.11 b/g/n (2.4G)

● IEEE 802.11 a/n/ac (5G)

● 3×3 MIMO (2.4G)

● 4×4 MU-MIMO (5G)

● Antenna gain: 2 dBi

● 2.4-2.4835 GHz EIRP 100 mW

● 5.15-5.25 GHz/5.25-5.35 GHz EIRP 200 mW; 5.47-5.725 GHz EIRP 1000 mW

Note: These are EIRP values in the CE standard.

● WMM (Wi-Fi Multi Media)

● Multiple SSIDs

● WPS

● 2.4G/5G concurrent

● Air interface rate: 2. 4G: 450 Mbit/s; 5G: 1733 Mbit/s


Function List

Smart Interconnection

● Smart Wi-Fi coverage

● SIP/H.248 auto-negotiation

● Any port any service

● Parental control

Smart Service

● Smart Wi-Fi sharing: Portal/802.1x authentication; SoftGRE-based sharing

Association of one account with two POTS ports

Smart O&M

● IPTV video quality diagnosis

● Variable-length OMCI messages

● Active/Passive rogue ONT detection and isolation

● Call emulation, and circuit test and loop-line test

● PPPoE/DHCP simulation testing

● Wi-Fi emulation

● One-click diagnosis (Web)

Layer 3 Features

● PPPoE/DHCP simulation testing

● WLAN emulation

● PPPoE/Static IP/DHCP

● NAT/NAPT

● Port forwarding

● ALG, UPnP

● DDNS/DNS server/DNS client

● IPv6/IPv4 dual stack, and DS-Lite

● Static/Default routes

● Multiple services on one WAN port

Multicast

● IGMP v2/v3 proxy (V300R015C00)/snooping

● MLD v1/v2 snooping

● Multicast services through Wi-Fi

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

Security

● SPI firewall

● Filtering based on MAC/IP/URL addresses

Common O&M

● OMCI/Web UI/TR069

● Dual-system software backup and rollback

Power Saving

● COC V5

● Scheduled Wi-Fi shutdown

Home Network

● Home network control center

● Configuration synchronization to distributed PnP APs

● Wi-Fi signal optimization within the home network

● Wi-Fi roaming within the home network

● Band steering

● Beamforming

● Wi-Fi video QoS improvement


Get More Information

Do you have any question about the EchoLife HN8255Ws?

Contact us now via [email protected].

Specific Data Sheet:


EchoLife HN8255Ws Specification

Dimensions (W x D x H)

82.5 mm x 305 mm x 198 mm (without external antenna and pads)

Weight

About 920g

Operating Temperature

0ºC to +40ºC

Operating Humidity

5% to 95% RH (non-condensing)

Power Adapter Input

100-240V AC, 50/60 Hz

System Power Supply

11-14 V DC, 4 A

Static Power Consumption

9.8 W

Maximum Power Consumption

22 W

NNI

XGS-PON (SFP+ Optical Module)

UNI

4 GE+1 10GE+2 POTS+1 USB2.0+1 USB3.0+2.4G&5G Wi-Fi 5

Indicators

Power/PON/LOS/TEL1-TEL2/10G LAN/LAN1-LAN4/WLAN/WPS/USB

XGS-PON Port

● Class N1/N2

● Receiver sensitivity: -28 dBm

● Wavelengths: US 1260-1280 nm, DS 1575-1580 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● SN/Password/SN+Password/Bi-directional authentication based on OMCI

● upstream and downstream FEC

● SR-DBA and NSR-DBA

● 10 Gbit/s upstream, 10 Gbit/s downstream

Ethernet Port

● 4 x GE + 1 x 10GE

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limitation on the number of learned MAC addresses

● MAC address learning

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

USB Port

● USB2.0

● USB3.0

● FTP-based network storage

● File/Print sharing based on SAMBA

● DLNA DMS/UPnP AV (media server)

WLAN

● IEEE 802.11 b/g/n (2.4G)

● IEEE 802.11 a/n/ac (5G)

● 3×3 MIMO (2.4G)

● 4×4 MU-MIMO (5G)

● Antenna gain: 2 dBi

● 2.4-2.4835 GHz EIRP 100 mW

● 5.15-5.25 GHz/5.25-5.35 GHz EIRP 200 mW; 5.47-5.725 GHz EIRP 1000 mW

Note: These are EIRP values in the CE standard.

● WMM (Wi-Fi Multi Media)

● Multiple SSIDs

● WPS

● 2.4G/5G concurrent

● Air interface rate: 2. 4G: 450 Mbit/s; 5G: 1733 Mbit/s
