EchoLife HN8250Ts
  • EchoLife HN8250Ts

Huawei EchoLife HN8250Ts XGS-PON ONT 1 10GE 4 GE 2 POTS

319
5
5/5.0
Q/A
5 Sold/Mon
Detail: Huawei EchoLife HN8250Ts, an intelligent XGS-PON bridging-type ONT, 1 x XGS-PON, 1 x 10 GE + 4 GE + 2 POTS
Model: EchoLife HN8250Ts
Condition: Factory Sealed New
Related:
Warranty:
3-Years Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.35
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


The Huawei EchoLife HN8250Ts is an Optical Network Terminal (ONT) with upstream and downstream rates of up to 10 Gbit/s. With one 10 GE, four GE, and two POTS ports, this ONT ensures smooth user experience for Wi-Fi 6, voice, data, and HD video services.


Quick Specification


Table 1 shows the Quick Specification.

Model

EchoLife HN8250Ts

Dimensions (H x W x D)

178 mm x 117 mm x 34 mm

Weight

Approximately 350 g

Operating Temperature

0℃ to 40℃

Operating Humidity

5% to 95% RH (non-condensing)

Power Adapter Input

90 V to 264 V AC, 50/60 Hz

Network-side Ports

1 XGS-PON

User-side Ports

1 x 10 GE + 4 GE + 2 POTS

Maximum Power Consumption*

12 W

Maximum PoE Output Power

NA

Surge Protection

GE port: common mode 4 kV; differential mode 0.5 kV

AC power supply: common mode 6 kV; differential mode 6 kV

Installation Mode

Desktop

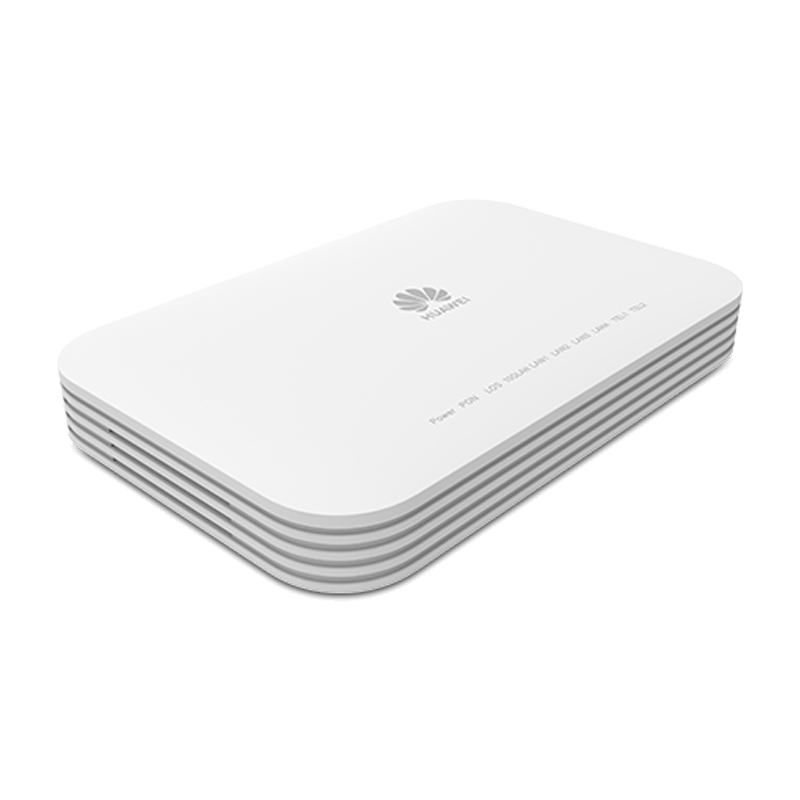

Figure 1 shows the appearance of EchoLife HN8250Ts.

front-echolife-hn8250ts-datasheet


Product Details


Interface Parameters

XGS-PON Port

● Class N2

● Receiver sensitivity: -28 dBm

● Wavelengths: US 1260-1280 nm, DS 1575-1580 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● SN/Password/SN+Password/Bi-directional authentication based on OMCI

● upstream and downstream FEC

● SR-DBA and NSR-DBA

● 9.95328 Gbit/s upstream, 9.95328 Gbit/s downstream

Ethernet Electrical Port

● 4 x GE + 1 x 10GE

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● 10 GE: Auto-adaptive 100 Mbit/s, 1000 Mbit/s or 10000 Mbit/s

● GE: Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)


Product Function

Smart Interconnection

● SIP/H.248 auto-negotiation

Smart Service

● Association of one account with one POTS port

Smart O&M

● Variable-length OMCI messages

● Rogue ONT detection and isolation from the OLT

● PPPoE/DHCP simulation testing

● Call emulation, and circuit test and loop-line test

Multicast

● IGMP v2/v3 snooping

● MLD v1/v2 snooping

● Fast leave

● VLAN tag translation, transparent transmission, and removal for downstream multicast packets

● IGMP/MLD protocol packet rate limitation

Security

● MAC address filtering

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

● Broadcast packet rate limitation

● Flow mapping based on the VLAN ID, port ID, or/and 802.1p

Common O&M

● OMCI/Web UI

● Dual-system software backup and rollback

● 802.1ag Ethernet OAM

● Optical link measurement and diagnosis

Power Saving

● Indicator power saving

● COC V7


Get More Information

Do you have any question about the EchoLife HN8250Ts?

Contact us now via [email protected].


Specific Data Sheet:


EchoLife HN8250Ts Specification

Dimensions (H x W x D)

178 mm x 117 mm x 34 mm

Weight

Approximately 350 g

Operating Temperature

0℃ to 40℃

Operating Humidity

5% to 95% RH (non-condensing)

Power Adapter Input

90 V to 264 V AC, 50/60 Hz

UNI

1 x 10 GE + 4 GE + 2 POTS

NNI

1 XGS-PON

Maximum Power Consumption*

12 W

Maximum PoE Output Power

NA

Surge Protection

GE port: common mode 4 kV; differential mode 0.5 kV

AC power supply: common mode 6 kV; differential mode 6 kV

Installation Mode

Desktop

Compliance Certification

CE

XGS-PON Port

● Class N2

● Receiver sensitivity: -28 dBm

● Wavelengths: US 1260-1280 nm, DS 1575-1580 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● SN/Password/SN+Password/Bi-directional authentication based on OMCI

● upstream and downstream FEC

● SR-DBA and NSR-DBA

● 9.95328 Gbit/s upstream, 9.95328 Gbit/s downstream

Ethernet Electrical Port

● 4 x GE + 1 x 10GE

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● 10 GE: Auto-adaptive 100 Mbit/s, 1000 Mbit/s or 10000 Mbit/s

● GE: Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)
